onsemiDatasheet (PDF)

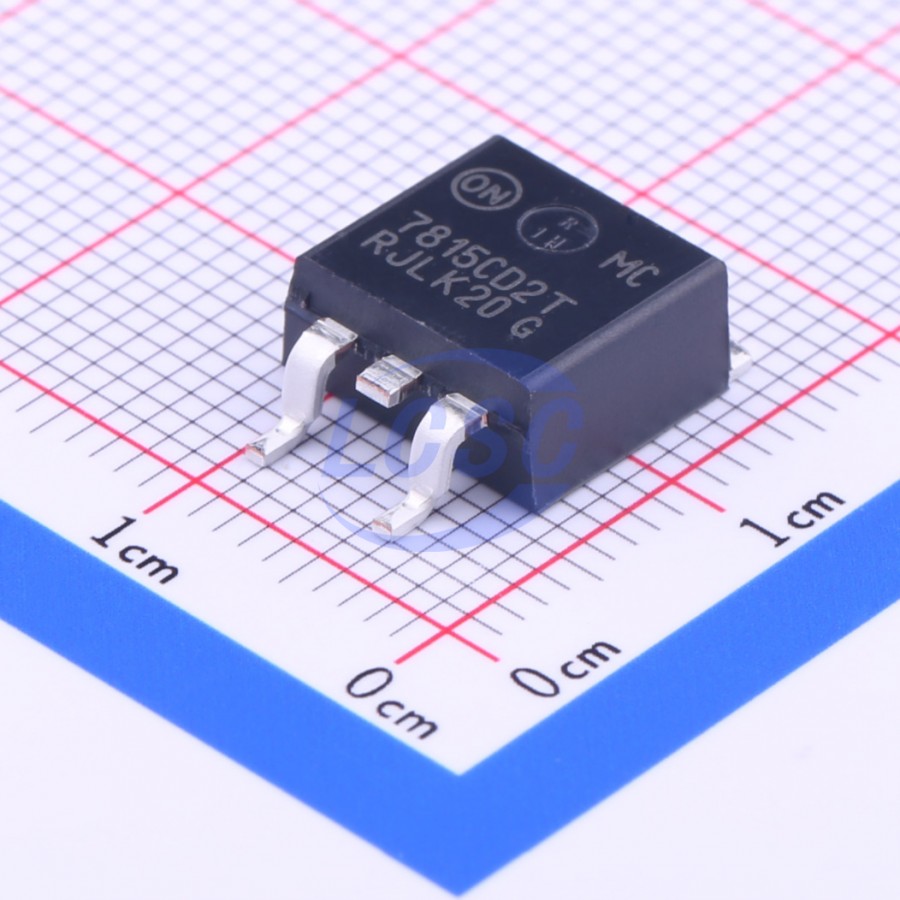

MC7815CD2TR4G
15V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7815CD2TR4G
- Store part #
- C35946
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,329 in stock
#C35946
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.84 | ₹81.84 |
| 10+ | ₹65.51 | ₹655.10 |
| 30+ | ₹57.25 | ₹1,717.50 |
| 100+ | ₹49.19 | ₹4,919.00 |
| 500+ | ₹43.98 | ₹21,990.00 |
| 800+ | ₹41.58 | ₹33,264.00 |
1 × ₹81.84
₹81.84
excl. GST
₹96.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
MC7815CD2TR4G
₹81.84 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.5mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.816 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7815BD2TR4G#C231295onsemi · TO-263(D2PAK) | onsemi | TO-263(D2PAK) | 2,591 | ₹73.59 · 2,591 in stock | View |
 | L7815ACD2T-TR#C2798208ST · D2PAK | ST | D2PAK | 5 | ₹88.22 · 5 in stock | View |
 | L7815CD2T-TR#C314016ST · D2PAK | ST | D2PAK | 14,491 | ₹101.92 · 14,491 in stock | View |
 | MC7815CD2TG#C233393onsemi · TO-263-2 | onsemi | TO-263-2 | 394 | ₹82.22 · 394 in stock | View |
 | CJ7815B-TGN-ARG#C20622087JSCJ · TO-263-2L | JSCJ | TO-263-2L | 280 | ₹36.10 · 280 in stock | View |
