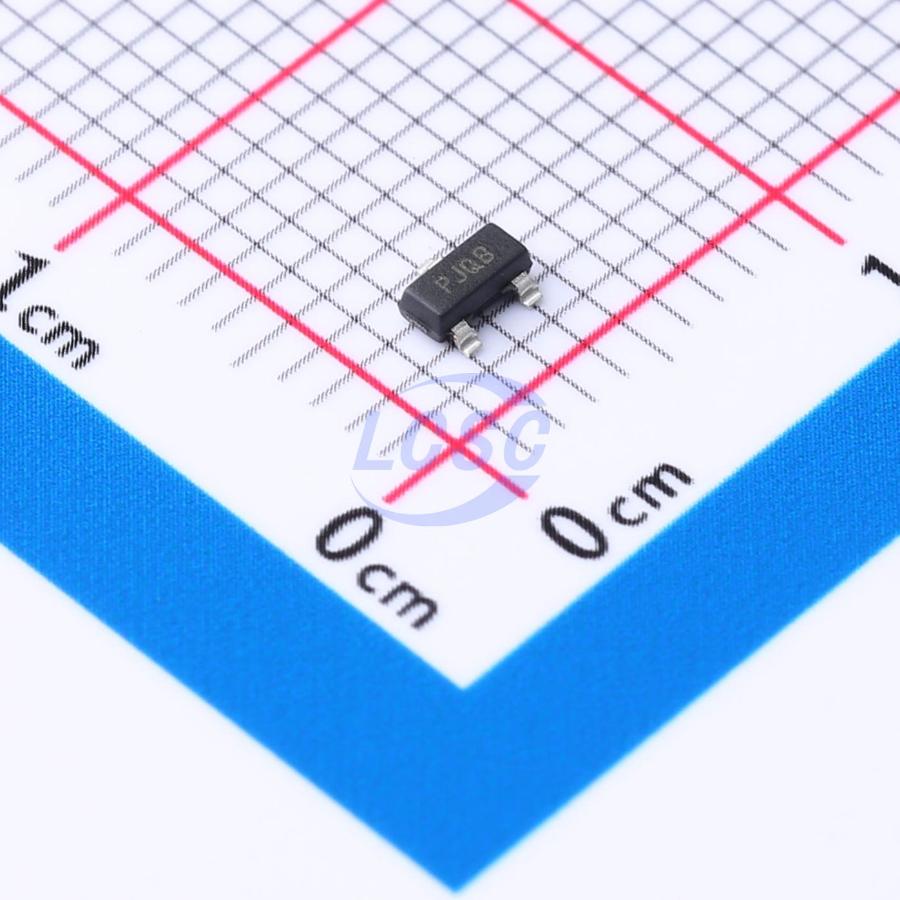

MCP130T-270I/TT
350ms Active Low 1V~5.5V 1 SOT-23-3 Supervisors RoHS
Microcontroller Supervisory Circuit with Open Drain Output
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP130T-270I/TT
- Store part #
- C625193
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,254 in stock
#C625193
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.80 | ₹97.80 |
| 10+ | ₹83.02 | ₹830.20 |
| 30+ | ₹75.62 | ₹2,268.60 |
| 100+ | ₹66.28 | ₹6,628.00 |
| 500+ | ₹61.72 | ₹30,860.00 |
| 1,000+ | ₹59.55 | ₹59,550.00 |
1 × ₹97.80
₹97.80
excl. GST
₹115.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP130T-270I/TT
₹97.80 for 1 + GST
Specifications
- Reset Timeout
- 350ms
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 45uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.55V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
The MCP120/130 is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. Both devices are available with a choice of seven different trip voltages and both have open drain outputs. The MCP130 has an internal 5 kΩ pullup resistor. Both devices have active low RESET pins. The MCP120/130 will assert the RESET signal whenever the voltage on the VDD pin is below the trip-point voltage.
Key features
- Holds microcontroller in reset until supply voltage reaches stable operating level
- Resets microcontroller during power loss
- Precision monitoring of 3V, 3.3V and 5V systems
- 7 voltage trip points available
- Active low RESET pin
- Open drain output
- Internal pull-up resistor (5 kΩ) for MCP130
- Holds RESET for 350 ms (typical)
- RESET to VCC = 1.0V
- Accuracy of ±125 mV for 5V systems and ±75 mV for 3V systems over temperature
- 45 μA typical operating current
- Temperature range: - Industrial (I): -40°C to +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS1818R-20+T&R#C2066179MAXIM · SOT-23-3 | MAXIM | SOT-23-3 | 66 | ₹1,075.19 · 66 in stock | View |
 | APX803S-29SR-7#C2067704DIODES · SOT-23 | DIODES | SOT-23 | 430 | ₹14.88 · 430 in stock | View |
 | DS1816R-20+T&R#C2066128MAXIM · SOT-23-3 | MAXIM | SOT-23-3 | 9 | ₹514.40 · 9 in stock | View |
 | HX809RDBZRG#C5145366HANSCHIP semiconductor · SOT-23-3 | HANSCHIP semiconductor | SOT-23-3 | 5,380 | ₹4.86 · 5,380 in stock | View |
 | APX803L20-26SA-7#C5378689DIODES · SOT-23-3 | DIODES | SOT-23-3 | 1,640 | ₹24.32 · 1,640 in stock | View |
