HGSEMIDatasheet (PDF)

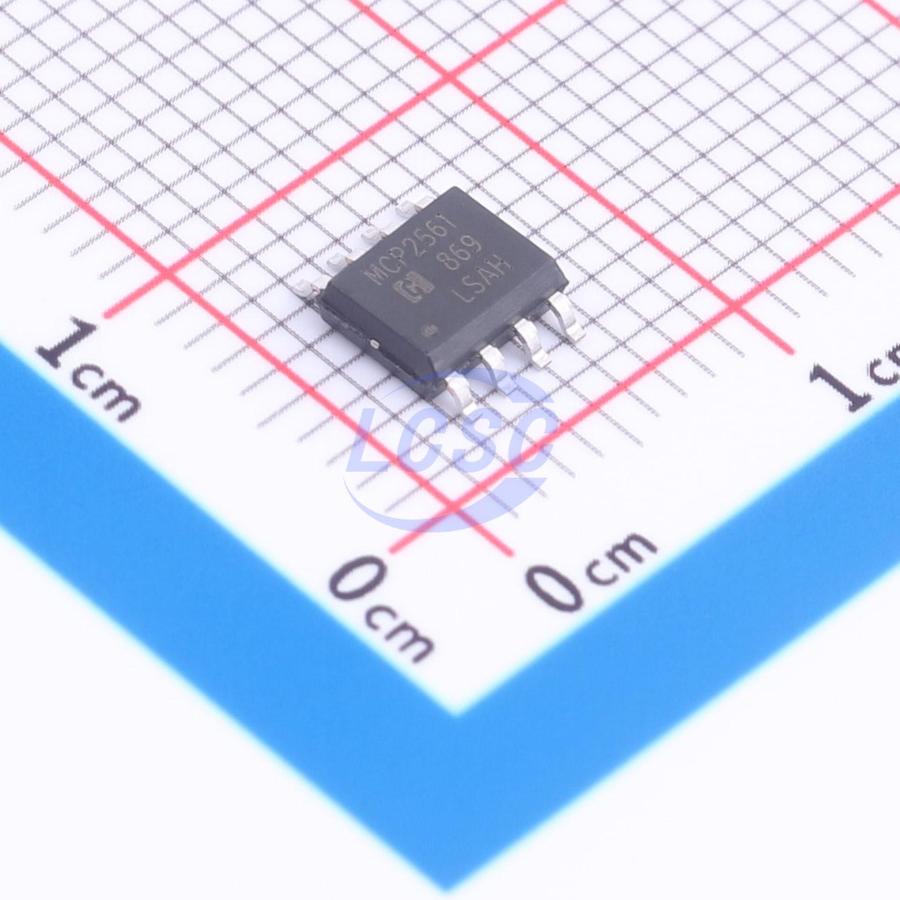

MCP2561M/TR-HG
4.5V~5.5V CAN Transceiver SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- MCP2561M/TR-HG
- Store part #
- C54557340
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,836 in stock
#C54557340
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.33 | ₹72.33 |
| 10+ | ₹58.46 | ₹584.60 |
| 30+ | ₹51.64 | ₹1,549.20 |
| 100+ | ₹44.81 | ₹4,481.00 |
| 500+ | ₹40.75 | ₹20,375.00 |
| 1,000+ | ₹38.62 | ₹38,620.00 |
1 × ₹72.33
₹72.33
excl. GST
₹85.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MCP2561M/TR-HG
₹72.33 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN Transceiver
- number of channels
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current
- 70mA
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Undervoltage Protection;Thermal shutdown protection;Short-Circuit Protection;ESD protection
- Quiescent Supply Current
- 10uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.342 g
Overview
MCP2561/2 is an interface circuit between a CAN protocol controller and the physical bus, suitable for automotive and industrial control applications at speeds up to 5 Mbaud. It provides differential transmit and receive capabilities for the CAN bus controller. The MCP2561/2 features excellent EMC performance, ideal passive behavior in power-off state, low-power management, and remote wake-up support. The MCP2562 supports I/O voltage ranges compatible with 3.3V to 5V MCUs.
Applications
- Automotive electronics
- Industrial control
Key features
- ISO11898 compliant
- Meets automotive Grade 1 requirements
- High speed (up to 5Mbaud)
- Low electromagnetic emission (EME)
- Differential receiver with wide common-mode range, low EME and high EMI immunity
- Standby mode with bus wake-up (remote) function
- Optional SPLIT voltage output for stabilizing recessive bus level (further improved EME)
- Standby bus dominant timeout function
- Transmit data TXD dominant timeout function
- MCP2562 I/O voltage range supports 3.3V to 5V MCU
- VCC and VIO supply with undervoltage protection
- Thermal protection
- Bus ESD protection (±8kV)
- Bus DC fault voltage tolerance (±70V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TJA1042M-3/TR#C19193499HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,391 | ₹42.75 · 2,391 in stock | View |
 | HGA1042M-3/TR#C22461590HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,728 | ₹39.21 · 1,728 in stock | View |
 | MCP2562M/TR-HG#C54741506HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,317 | ₹73.55 · 2,317 in stock | View |
 | TJA1042M/TR#C19193498HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,450 | ₹42.79 · 2,450 in stock | View |
 | HGA1050M/TR#C512781HGSEMI · SOIC-8 | HGSEMI | SOIC-8 | 3,619 | ₹65.62 · 3,619 in stock | View |
