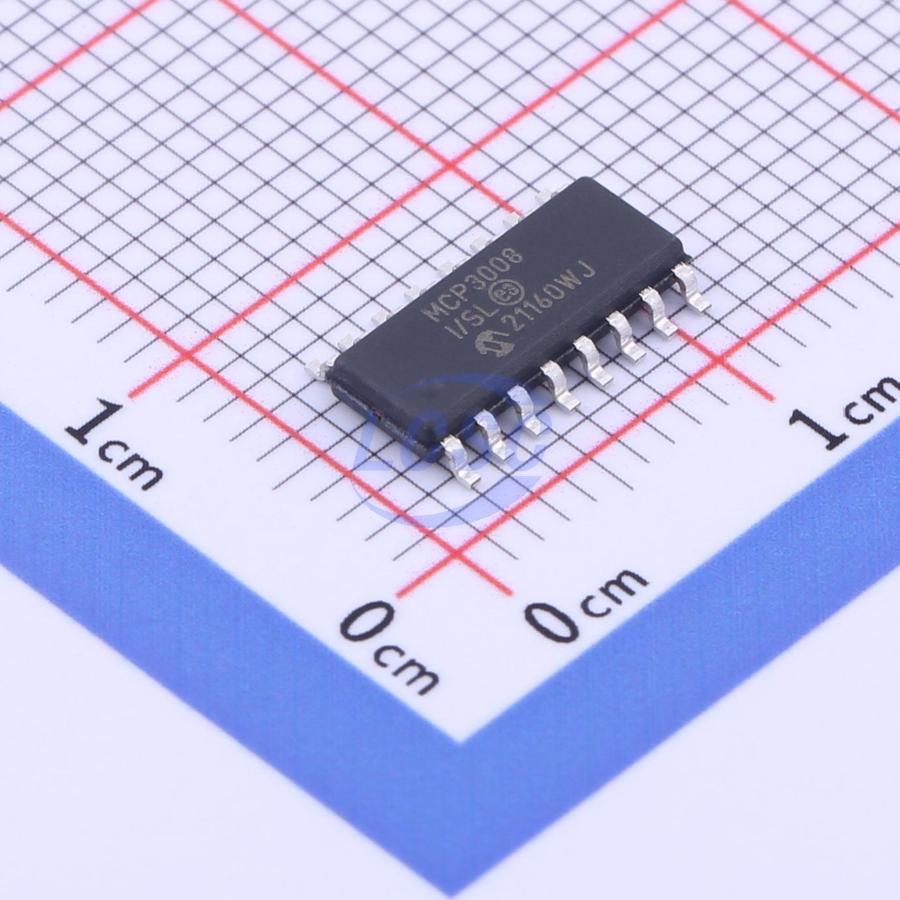

MCP3008T-I/SL

The MCP3004/3008 devices are successive approximation 10-bit Analog-to-Digital (A/D) converters with on-board sample and hold circuitry. The MCP3004 is programmable to provide two pseudo-differential input pairs or four single-ended inputs. The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) are specified at ±1 LSB. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 200 ksps. The MCP3004/3008 devices operate over a broad voltage range (2.7V - 5.5V). Low-current design permits operation with typical standby currents of only 5 nA and typical active currents of 320 μA. The MCP3004 is offered in 14-pin PDIP, 150 mil SOIC and TSSOP packages, while the MCP3008 is offered in 16-pin PDIP and SOIC packages.

Applications

• Sensor Interface
• Process Control
• Data Acquisition
• Battery Operated Systems

Key features

• 10-bit resolution
• ±1 LSB max DNL
• ±1 LSB max INL
• 4 (MCP3004) or 8 (MCP3008) input channels
• Analog inputs programmable as single-ended or pseudo-differential pairs
• On-chip sample and hold
• SPI serial interface (modes 0,0 and 1,1)
• Single supply operation: 2.7V - 5.5V
• 200 ksps max. sampling rate at VDD = 5V
• 75 ksps max. sampling rate at VDD = 2.7V
• Low power CMOS technology
• 5 nA typical standby current, 2 μA max.
• 500 μA max. active current at 5V
• Industrial temp range: -40°C to +85°C
• Available in PDIP, SOIC and TSSOP packages
