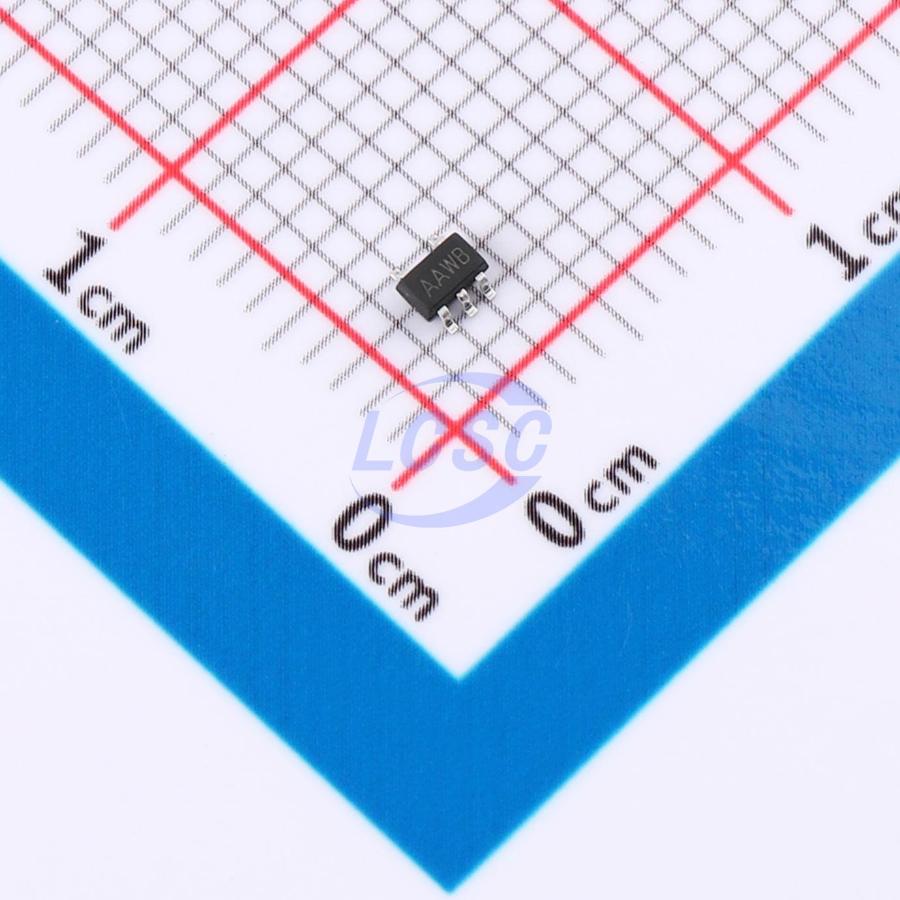

MCP6001M7/TR-HG

84mA 1 800uV 800V/ms 1pA 70dB 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output SOT-353 Instrumentation, Op Amps, Buffer Amps

SOT-353RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: MCP6001M7/TR-HG
Store part #: C53311459
Package / case: SOT-353
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,975 in stock

#C53311459

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.78	₹73.90
50+	₹11.77	₹588.50
150+	₹10.28	₹1,542.00
500+	₹9.14	₹4,570.00
3,000+	₹8.24	₹24,720.00
6,000+	₹7.79	₹46,740.00

Quantity (min 5, multiples of 5)

5 × ₹14.78

₹73.90

excl. GST

₹87.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6001M7/TR-HG

₹73.90 for 5 + GST

Specifications

Output Current: 84mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 75uA
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -3V~-900mV;900mV~3V
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.074 g

Overview

The MCP6001 series op-amps feature a 1MHz gain bandwidth product, 0.8V/μs slew rate, and 75μA quiescent current per amplifier at 5V. Designed to deliver optimal performance in low-voltage, low-noise systems, the series achieves rail-to-rail output swing under heavy load conditions. The input common-mode voltage range includes ground, and the maximum input offset voltage of the MCP6001 series is 3.5mV. The operating temperature range is -40℃ ~ +125℃, and the supply voltage range is 1.8V ~ 6V. The MCP6001 single-channel amplifier is available in green SC70-5 and SOT23-5 packages; the MCP6001R and MCP6001U single-channel amplifiers are available in a green SOT23-5 package; the MCP6002 dual-channel amplifier is available in green SOP-8 and MSOP-8 packages; the MCP6004 quad-channel amplifier is available in green SOP-14 and TSSOP-14 packages.
