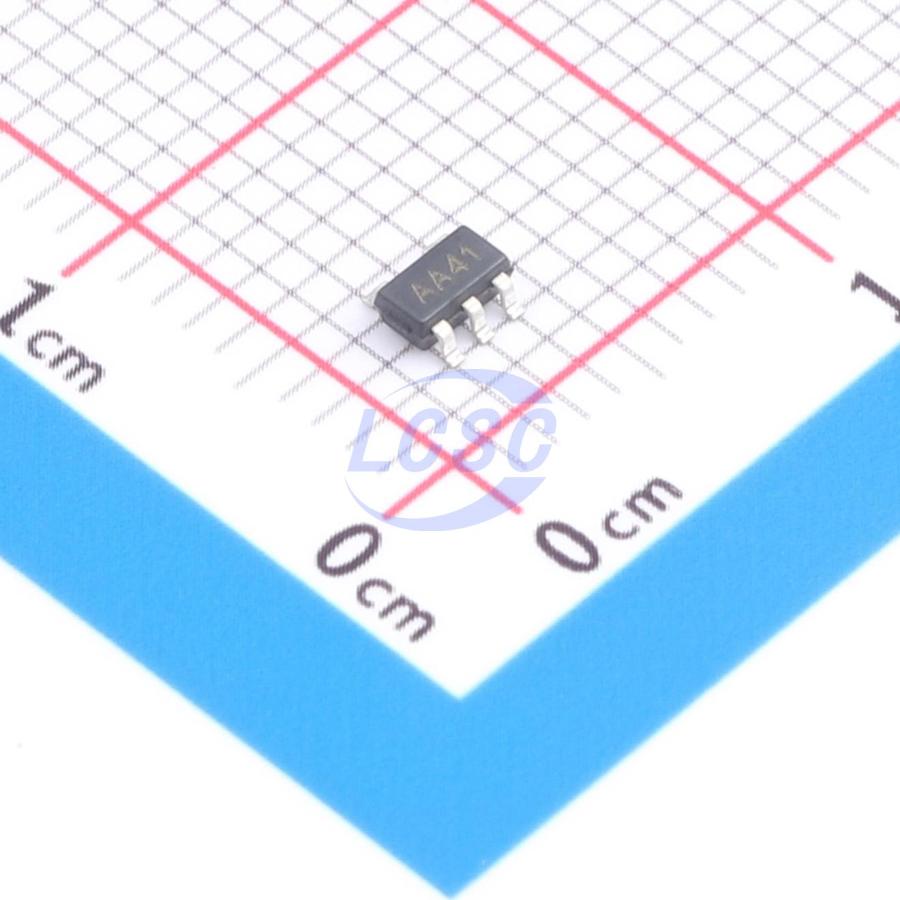

MCP6001T-I/OT-TUDI

84mA 1 5.6mV 800V/ms 1pA 70dB 1MHz 125uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

1 MHz Bandwidth Low Power Op Amp

Manufacturer: Tudi
Manufacturer part #: MCP6001T-I/OT-TUDI
Store part #: C36533679
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,190 in stock

#C36533679

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹19.87	₹99.35
50+	₹15.70	₹785.00
150+	₹13.63	₹2,044.50
500+	₹12.07	₹6,035.00
2,500+	₹10.82	₹27,050.00
5,000+	₹10.20	₹51,000.00

Quantity (min 5, multiples of 5)

5 × ₹19.87

₹99.35

excl. GST

₹117.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6001T-I/OT-TUDI

₹99.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 84mA
Number of Channels: 1
Vos - Input Offset Voltage: 5.6mV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 125uA
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

The 6001/2/4 family of operational amplifiers (op amps) is specifically designed for general-purpose applications. This family has a 1 MHz gain bandwidth product and 90° phase margin (typ.). This family operates from a single supply voltage as low as 1.8V, while drawing 100 μA (typ.) quiescent current. Additionally, the 6001/2/4 supports rail-to-rail input and output swing. This family of operational amplifiers is designed with advanced CMOS process. The 6001/2/4 family is available in the industrial and extended temperature ranges. It also has a power supply range of 1.8V to 5.5V.

Applications

Automotive
Portable Equipment
Photodiode Pre-amps
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in SC-70-5 and SOT-23-5 packages
1 MHz Gain Bandwidth Product (typ.)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 5.5V
Supply Current: IQ = 100 μA (typ.)
90° Phase Margin (typ.)
Temperature Range:
Industrial: -10℃ to +85℃
Extended: -40℃ to +125℃
Available in Single, Dual and Quad Packages
