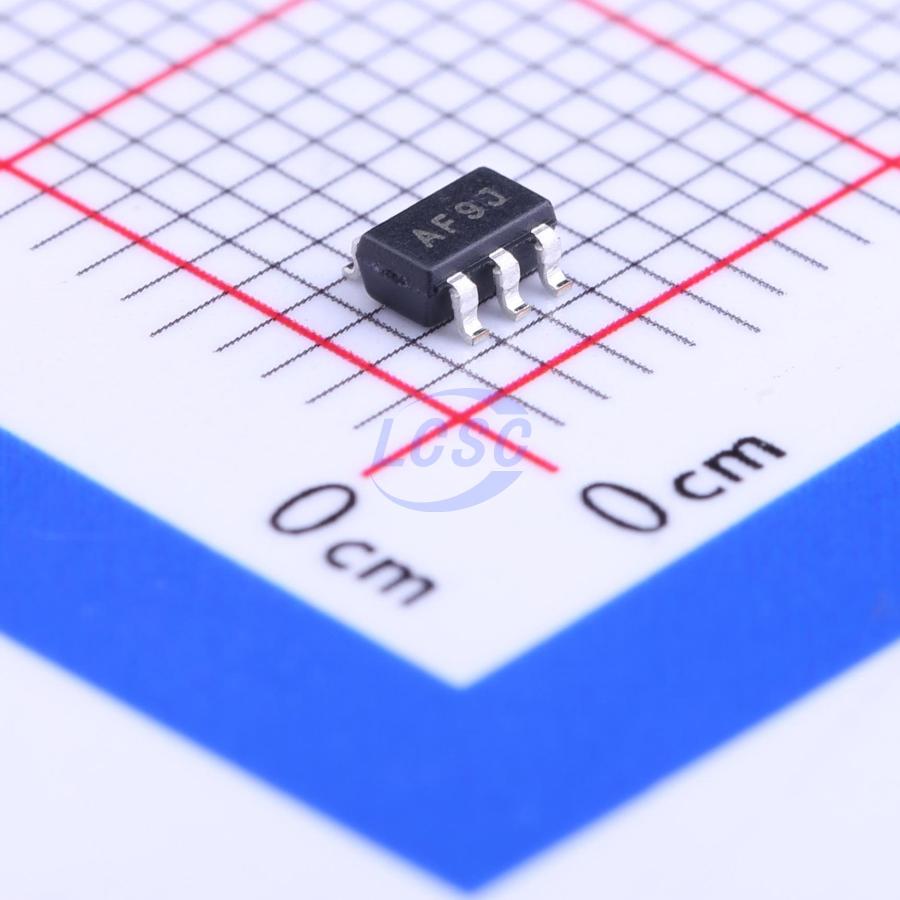

MCP6001UT-I/OT

23mA 1 4.5mV 600V/ms 76dB 1pA 100uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

1 MHz, Low-Power Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MCP6001UT-I/OT
Store part #: C21403
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,125 in stock

#C21403

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹52.62	₹263.10
50+	₹42.35	₹2,117.50
150+	₹37.96	₹5,694.00
500+	₹32.47	₹16,235.00
3,000+	₹26.94	₹80,820.00
6,000+	₹25.47	₹1,52,820.00

Quantity (min 5, multiples of 5)

5 × ₹52.62

₹263.10

excl. GST

₹310.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6001UT-I/OT

₹263.10 for 5 + GST

Specifications

Output Current: 23mA
Number of Channels: 1
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 100uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 28nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The MCP6001/2/4 family of operational amplifiers (op amps) is specifically designed for general - purpose applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typ.). It also maintains 45° phase margin (typ.) with a 500 pF capacitive load. This family operates from a single supply voltage as low as 1.8V, while drawing 100 μA (typ.) quiescent current. Additionally, the MCP6001/2/4 supports rail - to - rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of op amps is designed with advanced CMOS process. The MCP6001/2/4 family is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 5.5V.

Applications

Automotive
Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery - Powered Systems

Key features

Available in SC - 70 - 5 and SOT - 23 - 5 packages
Gain Bandwidth Product: 1 MHz (typ.)
Rail - to - Rail Input/Output
Supply Voltage: 1.8V to 5.5V
Supply Current: IQ = 100 μA (typ.)
Phase Margin: 90° (typ.)
Temperature Range:
Industrial: - 40°C to + 85°C
Extended: - 40°C to + 125°C
Available in Single, Dual and Quad Packages
