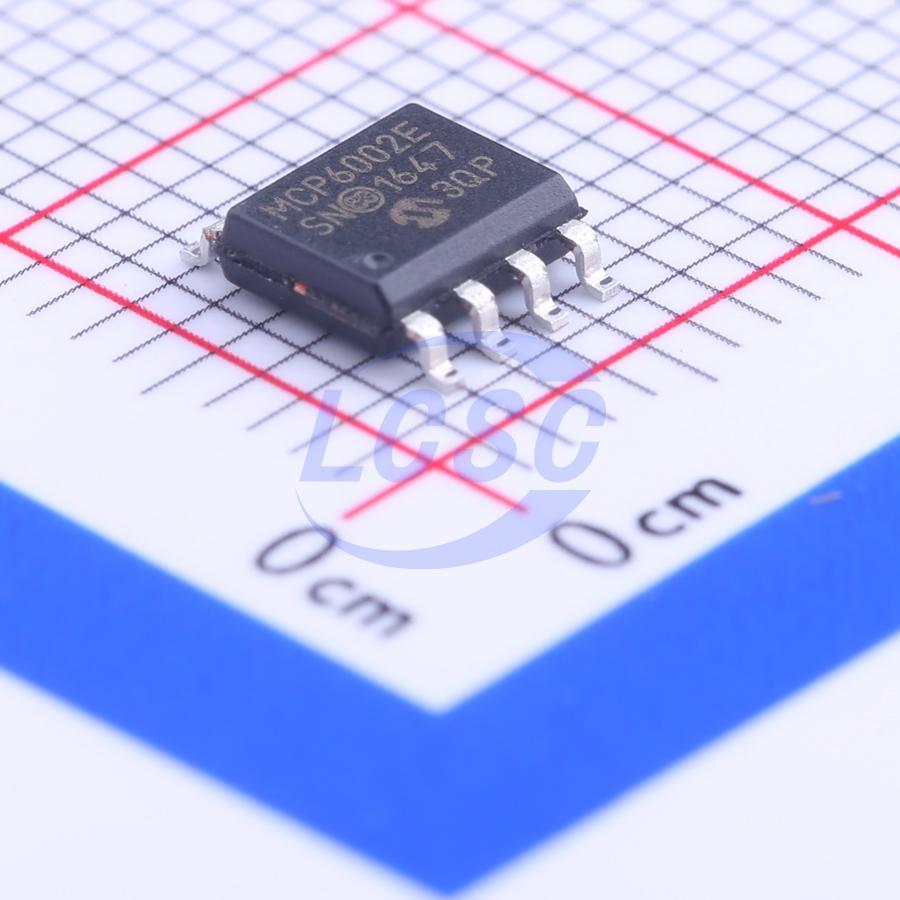

MCP6002T-E/SN

23mA 2 4.5mV 600V/ms 76dB 1pA 1MHz 100uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

1 MHz, Low-Power Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MCP6002T-E/SN
Store part #: C125816
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,859 in stock

#C125816

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹78.44	₹78.44
10+	₹60.83	₹608.30
30+	₹53.24	₹1,597.20
100+	₹43.90	₹4,390.00
500+	₹39.77	₹19,885.00
1,000+	₹37.16	₹37,160.00

Quantity (min 1)

1 × ₹78.44

₹78.44

excl. GST

₹92.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,300 per reel

MCP6002T-E/SN

₹78.44 for 1 + GST

Specifications

Output Current: 23mA
Number of Channels: 2
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 100uA
Input Voltage Noise Density: 28nV/√Hz@1kHz
Dual Supply: -8V~-2.25V;2.25V~8V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,300 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.169 g

Overview

The MCP6001/2/4 family of operational amplifiers (opamps) is specifically designed for general purpose applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typical). It also maintains a 45° phase margin (typical) with a 500 pF capacitive load. This family operates from a single-supply voltage as low as 1.8V, while drawing 100 μA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a Common-mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of op amps is designed with advanced CMOS process. The MCP6001/2/4 family is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 6.0V.

Applications

Automotive
Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in 5-Lead SC-70 and 5-Lead SOT-23 Packages
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 100 μA (typical)
Phase Margin: 90° (typical)
Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
Available in Single, Dual and Quad Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP6002-E/SN#C636235MICROCHIP · SOIC-8	MICROCHIP	SOIC-8	124	₹105.73 · 124 in stock	View
MCP6002-I/SN#C116706MICROCHIP · SOIC-8	MICROCHIP	SOIC-8	10,565	₹54.81 · 10,565 in stock	View
MCP6002T-E/SN(UMW)#C32713107UMW · SOP-8	UMW	SOP-8	29,725	₹16.30 · 29,725 in stock	View
MCP6002T-I/SNVAO#C5224674MICROCHIP · SOIC-8-150mil	MICROCHIP	SOIC-8-150mil	145	₹48.95 · 145 in stock	View
MCP6002T-I/SN#C7377MICROCHIP · SOIC-8	MICROCHIP	SOIC-8	28,630	₹38.25 · 28,630 in stock	View
