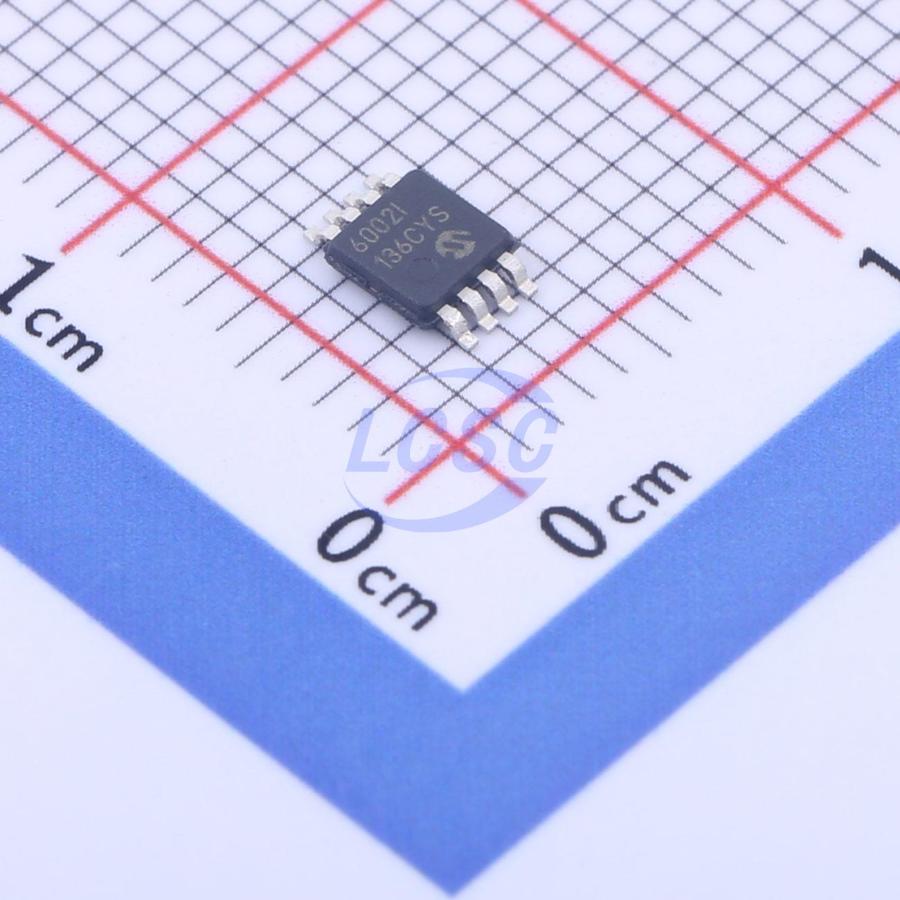

MCP6002T-I/MS

23mA 2 4.5mV 600V/ms 76dB 1pA 100uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

1 MHz, Low-Power Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MCP6002T-I/MS
Store part #: C2652308
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,700 in stock

#C2652308

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹46.93	₹234.65
50+	₹36.66	₹1,833.00
150+	₹32.25	₹4,837.50
500+	₹26.75	₹13,375.00
2,500+	₹24.32	₹60,800.00
5,000+	₹22.85	₹1,14,250.00

Quantity (min 5, multiples of 5)

5 × ₹46.93

₹234.65

excl. GST

₹276.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MCP6002T-I/MS

₹234.65 for 5 + GST

Specifications

Output Current: 23mA
Number of Channels: 2
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 100uA
Gain Bandwidth Product: 1MHz
Features: ESD protection
Input Voltage Noise Density: 28nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.208 g

Overview

The MCP6001/2/4 family of operational amplifiers (opamps) is specifically designed for general purpose applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typical). It also maintains a 45° phase margin (typical) with a 500 pF capacitive load. This family operates from a single-supply voltage as low as 1.8V, while drawing 100 μA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a Common-mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of op amps is designed with advanced CMOS process. The MCP6001/2/4 family is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 6.0V.

Applications

Automotive
Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in 5-Lead SC-70 and 5-Lead SOT-23 Packages
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 100 μA (typical)
Phase Margin: 90° (typical)
Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
Available in Single, Dual and Quad Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP6002-I/MS#C5121360MICROCHIP · MSOP-8	MICROCHIP	MSOP-8	65	₹93.01 · 65 in stock	View
MCP6002T-E/MS#C627415MICROCHIP · MSOP-8	MICROCHIP	MSOP-8	2,431	₹132.52 · 2,431 in stock	View
MCP6002-E/MS#C636234MICROCHIP · MSOP-8	MICROCHIP	MSOP-8	53	₹126.19 · 53 in stock	View
COS602MR#C3013778COSINE · MSOP-8	COSINE	MSOP-8	1,190	₹17.03 · 1,190 in stock	View
MCP6002T-E/MS(XBLW)#C41369521XBLW · MSOP-8	XBLW	MSOP-8	2,610	₹21.09 · 2,610 in stock	View
