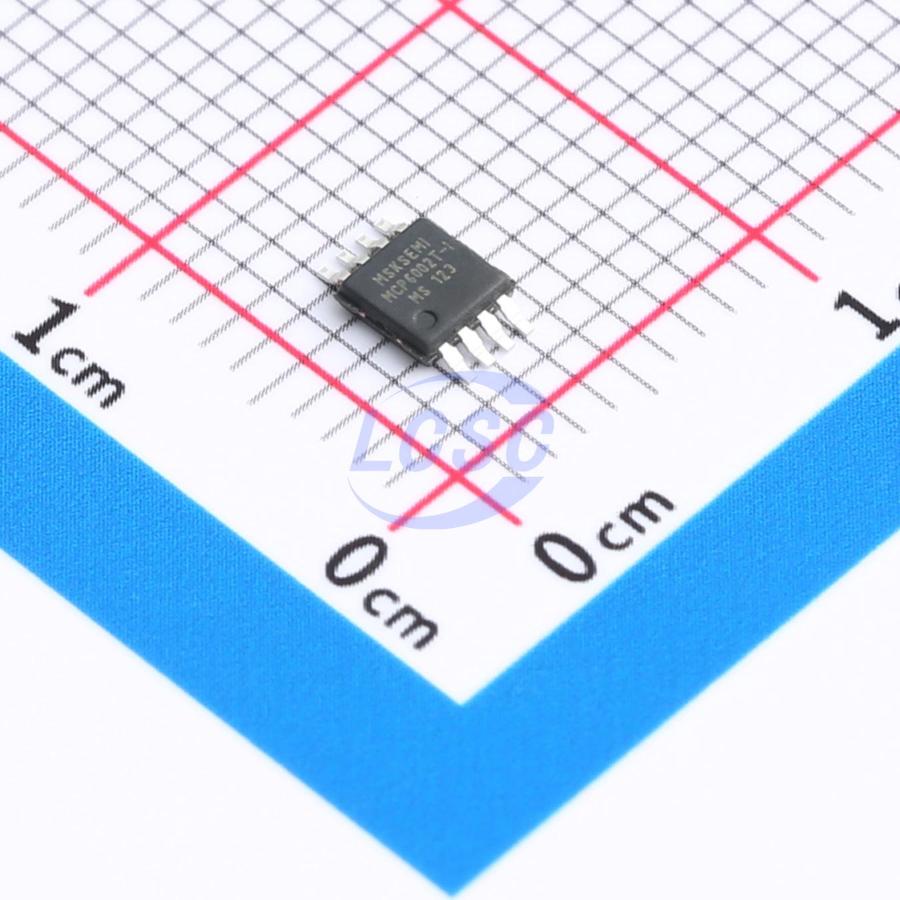

MCP6002T-I/MS(MSK)
2 500uV 1.2V/us 95dB 2pA 1.5MHz 50uA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive
Dual CMOS Operational Amplifier
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MCP6002T-I/MS(MSK)
- Store part #
- C45367208
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,035 in stock
#C45367208
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.92 | ₹109.60 |
| 50+ | ₹17.00 | ₹850.00 |
| 150+ | ₹14.88 | ₹2,232.00 |
| 500+ | ₹12.25 | ₹6,125.00 |
| 2,500+ | ₹11.07 | ₹27,675.00 |
| 5,000+ | ₹10.37 | ₹51,850.00 |
5 × ₹21.92
₹109.60
excl. GST
₹129.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MCP6002T-I/MS(MSK)
₹109.60 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Gain Bandwidth Product
- 1.5MHz
- Quiescent Current
- 50uA
- Features
- Zero drift / auto-zero
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
MCP6002T-I/SN(MS)/MCP6002T-I/MS(MSK) is a dual CMOS op-amp that employs proprietary auto-zeroing technology to simultaneously deliver ultralow offset voltage and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers feature high-impedance inputs with a common-mode range extending 200mV beyond the supply rails, rail-to-rail output swinging to within 50mV of the supply rails, and operate from single or dual supplies ranging from as low as 2.1V (±1.35V) to as high as 5.5V (±2.75V). These devices are optimized for low-voltage, single-supply operation. The MCP6002T-I/SN(MS)/MCP6002T-I/MS(MSK) offers excellent CMRR without the crossover distortion associated with conventional complementary input stages. This design delivers superior performance when driving ADCs without degrading differential linearity. The device is available in 8-pin SOP-8 and MSOP-8 packages.
Applications
- Sensors
- Temperature measurement
- Electronic scales
- Medical instruments
- Handheld test equipment
Key features
- Supply voltage range: 2.1V to 5.5V
- Low offset voltage: 0.5mV (typical)
- Low drift: 0.65μV/℃ (typical)
- Low noise
- Quiescent current: 50μA (total)
- Rail-to-rail input/output
- Compact package: SOP-8
