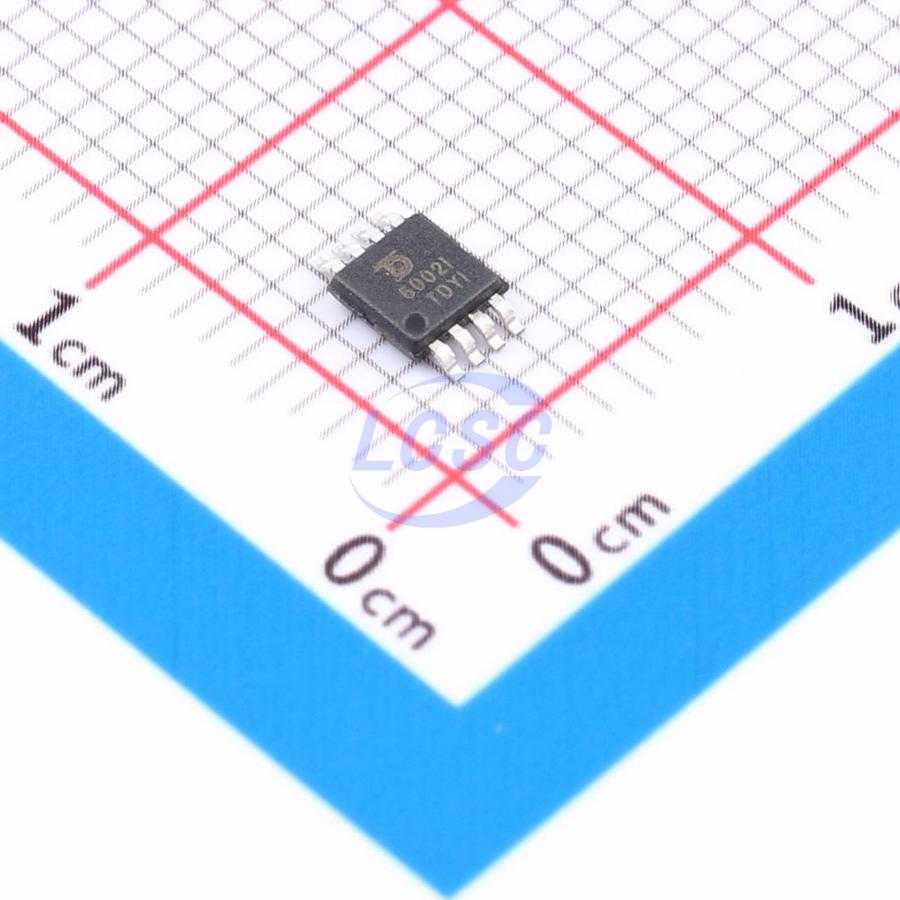

MCP6002T-I/MS-TUDI

84mA 2 5.6mV 800V/ms 1pA 70dB 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

1 MHz Bandwidth Low Power Op Amp

Manufacturer: Tudi
Manufacturer part #: MCP6002T-I/MS-TUDI
Store part #: C36533684
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,285 in stock

#C36533684

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
5+	₹16.54	₹82.70
50+	₹14.45	₹722.50
150+	₹13.55	₹2,032.50
500+	₹12.42	₹6,210.00
2,500+	₹11.92	₹29,800.00
5,000+	₹11.63	₹58,150.00

Quantity (min 5, multiples of 5)

5 × ₹16.54

₹82.70

excl. GST

₹97.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MCP6002T-I/MS-TUDI

₹82.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 84mA
Number of Channels: 2
Vos - Input Offset Voltage: 5.6mV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -10℃~+85℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 75uA
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -3V~-900mV;900mV~3V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.163 g

Overview

The 6001/2/4 family of operational amplifiers (op amps) is specifically designed for general-purpose applications. This family has a 1 MHz gain bandwidth product and 90° phase margin (typ.). This family operates from a single supply voltage as low as 1.8V, while drawing 100 μA (typ.) quiescent current. Additionally, the 6001/2/4 supports rail-to-rail input and output swing. This family of operational amplifiers is designed with advanced CMOS process. The 6001/2/4 family is available in the industrial and extended temperature ranges. It also has a power supply range of 1.8V to 5.5V.

Applications

Automotive
Portable Equipment
Photodiode Pre-amps
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in SC-70-5 and SOT-23-5 packages
1 MHz Gain Bandwidth Product (typ.)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 5.5V
Supply Current: IQ = 100 μA (typ.)
90° Phase Margin (typ.)
Temperature Range:
Industrial: -10℃ to +85℃
Extended: -40℃ to +125℃
Available in Single, Dual and Quad Packages
