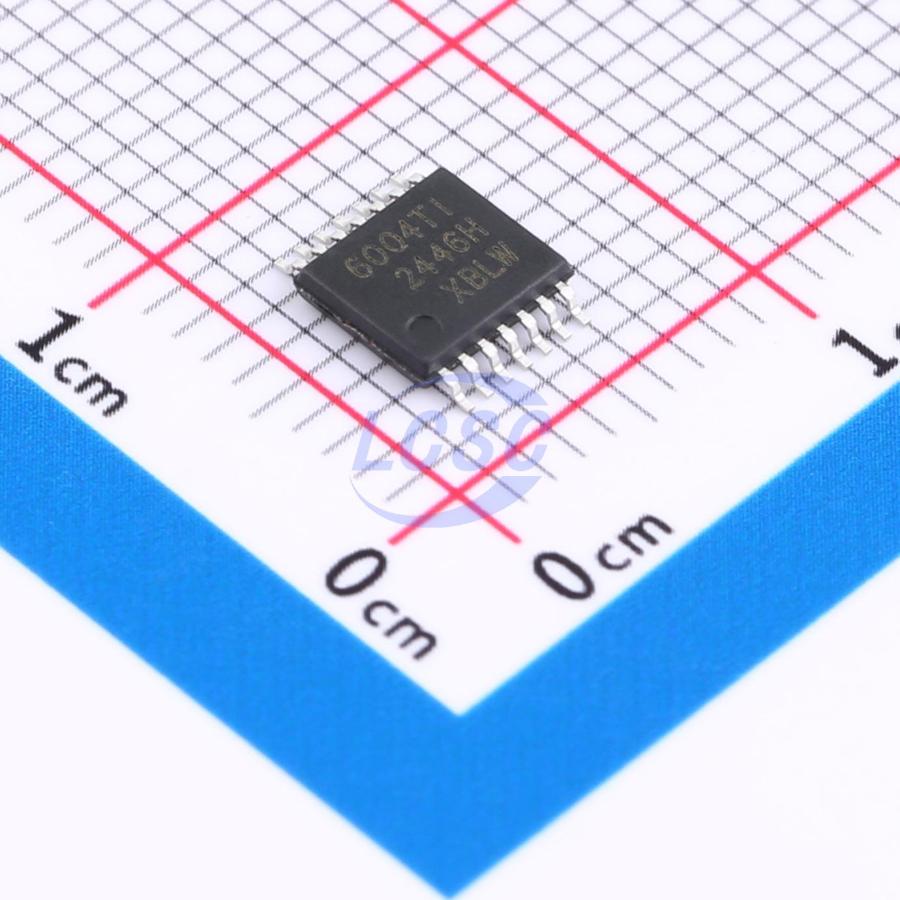

MCP6004T-I/ST(XBLW)
Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14
TSSOP-14ROHS CompliantActive
1 MHz, Low-Power Op Amp
- Manufacturer
- XBLW
- Manufacturer part #
- MCP6004T-I/ST(XBLW)
- Store part #
- C48971054
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,430 in stock
#C48971054
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.00 | ₹105.00 |
| 50+ | ₹16.39 | ₹819.50 |
| 150+ | ₹14.42 | ₹2,163.00 |
| 500+ | ₹11.96 | ₹5,980.00 |
| 3,000+ | ₹10.88 | ₹32,640.00 |
| 6,000+ | ₹10.21 | ₹61,260.00 |
5 × ₹21.00
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP6004T-I/ST(XBLW)
₹105.00 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 800V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 2.3uV/℃
- Quiescent Current
- 80uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -3V~-900mV;900mV~3V
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.101 g
Overview
The XBLW MCP6001 (single), XBLW MCP6002 (dual), and XBLW MCP6004 (quad) are general-purpose, low-offset, wide-bandwidth, micropower op-amps. This family offers 1MHz bandwidth, 0.8V/μs slew rate, and only 80μA quiescent current per amplifier at 5V supply, making them suitable for a wide range of applications. The XBLW MCP6001/6002/6004 op-amps are designed to deliver optimum performance in low-voltage, low-power systems. The input common-mode voltage range includes ground, and the maximum input offset voltage is 4.5mV. These devices can drive heavy loads and provide rail-to-rail output swing. The XBLW MCP6001/6002/6004 family supports single or dual supply operation from +1.8V to +6.0V.
Applications
- Active filters
- Audio output
- Sensor interface
- Medical instrumentation
- Battery-powered instruments
- Smoke/gas/environmental sensors
- Battery and power management
- Portable and mobile devices
Key features
- General-purpose 1MHz amplifier, low cost
- High slew rate: 0.8V/μs
- Low offset voltage: 4.5mV max
- Low quiescent current: 80μA per amplifier
- Settling time to 0.1% for 2V step: 4.2μs
- Unity-gain stable
- Rail-to-rail input and output
- Input voltage range (5V supply): -0.1V to +5.1V
- Operating supply voltage: +1.8V to +6V
- Operating temperature range: -40°C to +125°C
- ESD rating: HBM 4kV, CDM 2kV
