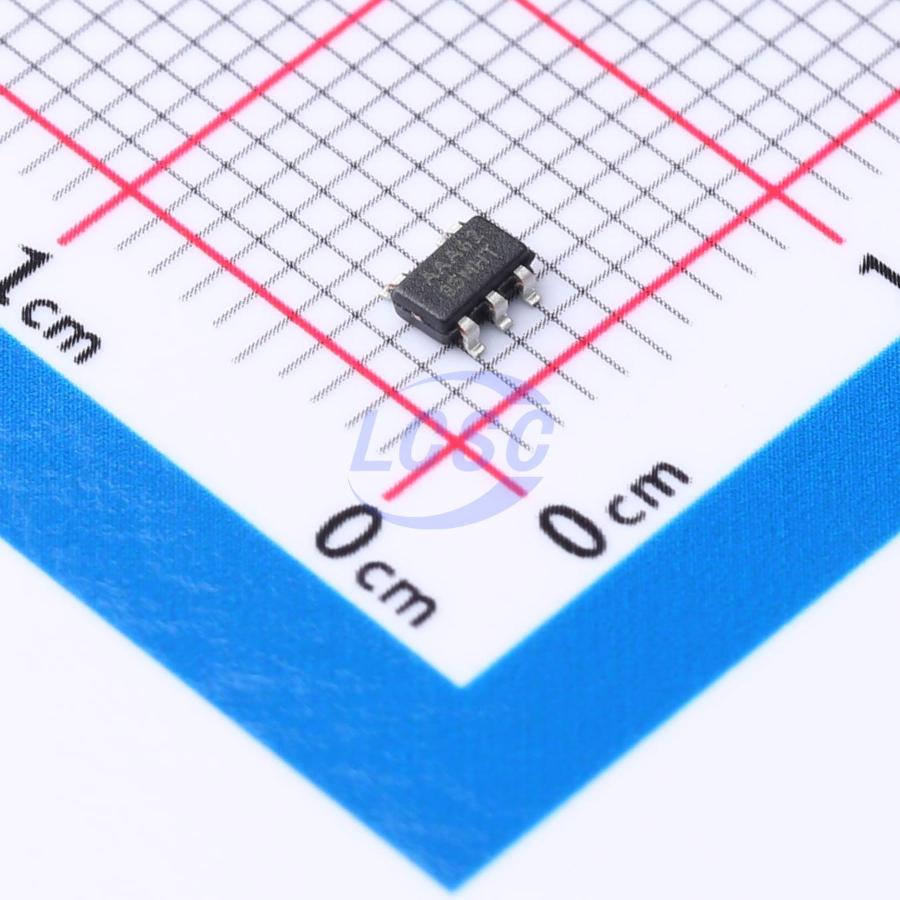

MCP6006UT-E/OT

30mA 1 1.6mV 3V/us 90dB 119pA 50uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

1 MHz Operational Amplifier with EMI Filtering

Manufacturer: MICROCHIP
Manufacturer part #: MCP6006UT-E/OT
Store part #: C4370133
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,359 in stock

#C4370133

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹56.93	₹56.93
10+	₹45.19	₹451.90
30+	₹39.98	₹1,199.40
100+	₹33.68	₹3,368.00
500+	₹29.33	₹14,665.00
1,000+	₹27.60	₹27,600.00

Quantity (min 1)

1 × ₹56.93

₹56.93

excl. GST

₹67.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6006UT-E/OT

₹56.93 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.6mV
Slew Rate: 3V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 119pA
Input Offset Voltage Drift(Vos TC): 600nV/℃
Quiescent Current: 50uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 25nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.4 g

Overview

The MCP6006/6R/6U/7/9 operational amplifier operates with a single supply voltage as low as 1.8V, while drawing low quiescent current (70 μA, maximum per amplifier). This op amp also has low input offset voltage (±1.6 mV, maximum), and rail-to-rail input and output operation. In addition, the MCP6006/6R/6U/7/9 is unity gain stable and has a gain bandwidth product of 1 MHz (typical). This combination of features supports battery-powered and portable applications. The MCP6006/6R/6U/7/9 has enhanced EMI protection, minimizing electromagnetic interference from external sources. This feature makes it well-suited for EMI-sensitive applications, such as power lines, radio stations and mobile communications. This product family is offered in single (MCP6006), dual (MCP6007) and quad (MCP6009) packages. All devices are designed using an advanced CMOS process and fully specified in the extended temperature range from -40°C to +125°C.

Applications

Smoke Detectors
Battery-Powered Systems
Sensor Conditioning
Battery Current Monitoring

Key features

Low Quiescent Current: - 70 μA (maximum)/amplifier
Low Input Offset Voltage: - ±1.6 mV (maximum)
Enhanced EMI Protection: - Electromagnetic Interference Rejection Ratio (EMIRR) at 1.8 GHz: 95 dB
Supply Voltage Range: 1.8V to 5.5V
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Unity Gain Stable
No Phase Reversal
Quick Start-up Time: 6 μs (typical)
Small Packages
Extended Temperature Range: -40°C to +125°C
AEC Q100 Qualified, Grade 1
