Tudi

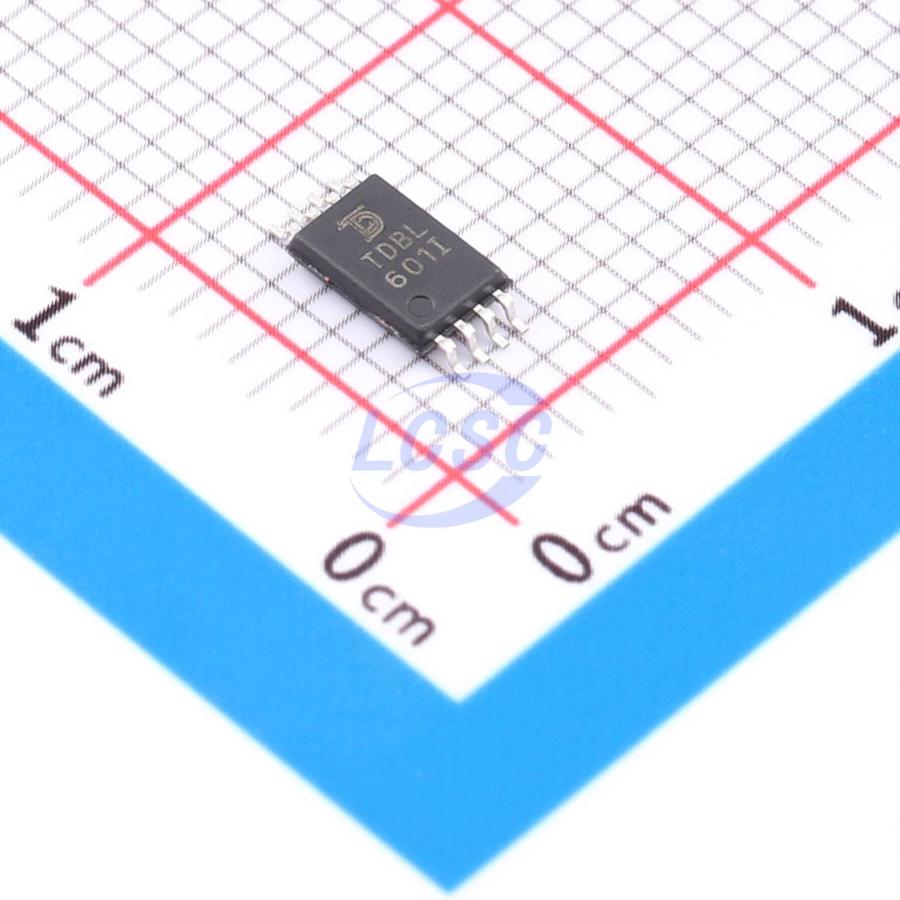

MCP601T-I/ST-TUDI

70mA 1 800uV 9V/us 1pA 63dB 1.85mA 11MHz Rail-to-rail output TSSOP-8 Instrumentation, Op Amps, Buffer Amps

TSSOP-8RoHSActive

Single Supply CMOS Op Amps

Manufacturer: Tudi
Manufacturer part #: MCP601T-I/ST-TUDI
Store part #: C36533671
Package / case: TSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,499 in stock

#C36533671

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹65.26	₹65.26
10+	₹57.89	₹578.90
30+	₹54.43	₹1,632.90
100+	₹50.74	₹5,074.00
500+	₹46.83	₹23,415.00
1,000+	₹45.75	₹45,750.00

Quantity (min 1)

1 × ₹65.26

₹65.26

excl. GST

₹77.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MCP601T-I/ST-TUDI

₹65.26 for 1 + GST

Specifications

Output Current: 70mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 63dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Quiescent Current: 1.85mA
Gain Bandwidth Product: 11MHz
Features: Enable/shutdown function;Built-in compensation
Input Voltage Noise Density: 11.5nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.163 g
