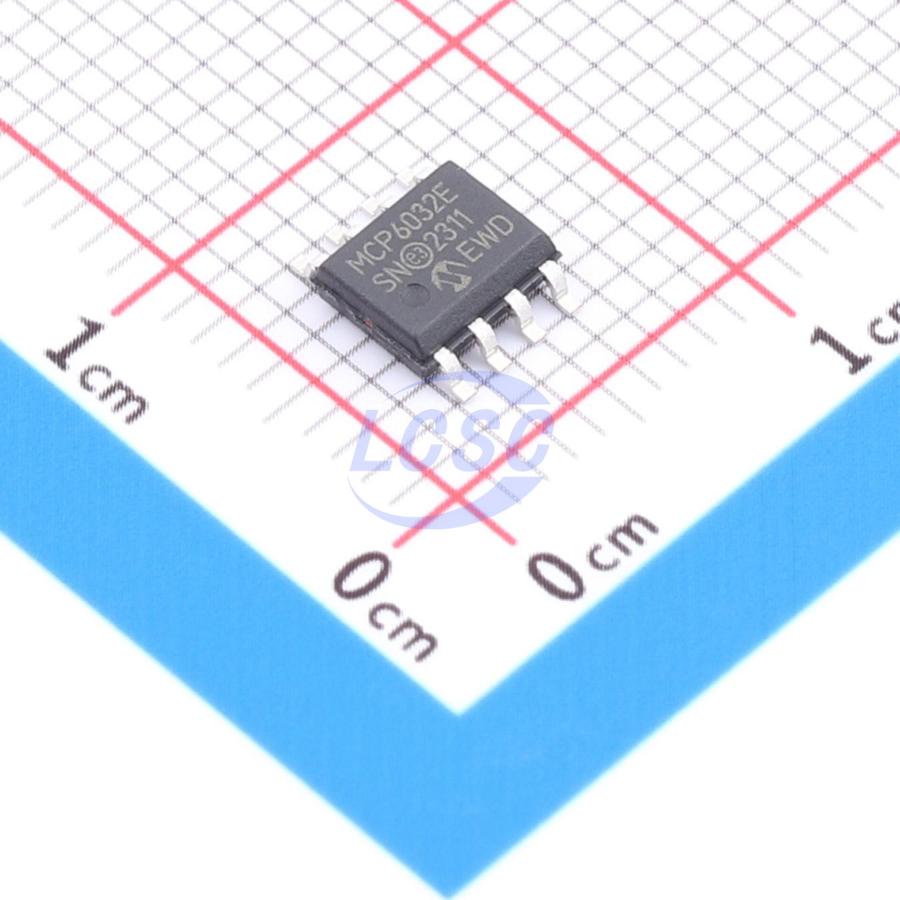

MCP6032T-E/SN

23mA 2 150uV 4V/ms 95dB 1pA 900nA 10kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

0.9 μA, High-Precision Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6032T-E/SN
Store part #: C2057603
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,282 in stock

#C2057603

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹174.93	₹174.93
10+	₹145.85	₹1,458.50
30+	₹130.00	₹3,900.00
100+	₹106.34	₹10,634.00
500+	₹98.31	₹49,155.00
1,000+	₹94.63	₹94,630.00

Quantity (min 1)

1 × ₹174.93

₹174.93

excl. GST

₹206.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,300 per reel

MCP6032T-E/SN

₹174.93 for 1 + GST

Specifications

Output Current: 23mA
Number of Channels: 2
Vos - Input Offset Voltage: 150uV
Slew Rate: 4V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 900nA
Gain Bandwidth Product: 10kHz
Features: Built-in compensation;ESD protection
Input Voltage Noise Density: 165nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,300 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.569 g

Overview

The MCP6031/2/3/4 family of operational amplifiers (op amps) operates with a single-supply voltage as low as 1.8V, while drawing ultra-low quiescent current per amplifier (0.9 μA, typical). This family also has low input offset voltage (±150 μV, maximum) and rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The MCP6031/2/3/4 family is unity gain stable and has a gain bandwidth product of 10 kHz (typical). These specifications make these op amps appropriate for low-frequency applications, such as battery current monitoring and sensor conditioning. The MCP6031/2/3/4 family is offered in single (MCP6031), single with power-saving Chip Select (CS) input (MCP6033), dual (MCP6032) and quad (MCP6034) configurations. The MCP6031/2/3/4 family is designed with advanced CMOS process. All devices are available in the extended temperature range, with a power supply range of 1.8V to 5.5V.

Applications

Toll Booth Tags
Wearable Products
Battery Current Monitoring
Sensor Conditioning Battery Powered

Key features

Rail-to-Rail Input and Output
Low Offset Voltage: ±150 μV (maximum)
Ultra-Low Quiescent Current: 0.9 μA (typical)
Wide Power Supply Voltage: 1.8V to 5.5V
Gain Bandwidth Product: 10 kHz (typical)
Unity Gain Stable
Chip Select(CS) capability: MCP6033
Extended Temperature Range: -40°C to +125°C
No Phase Reversal
