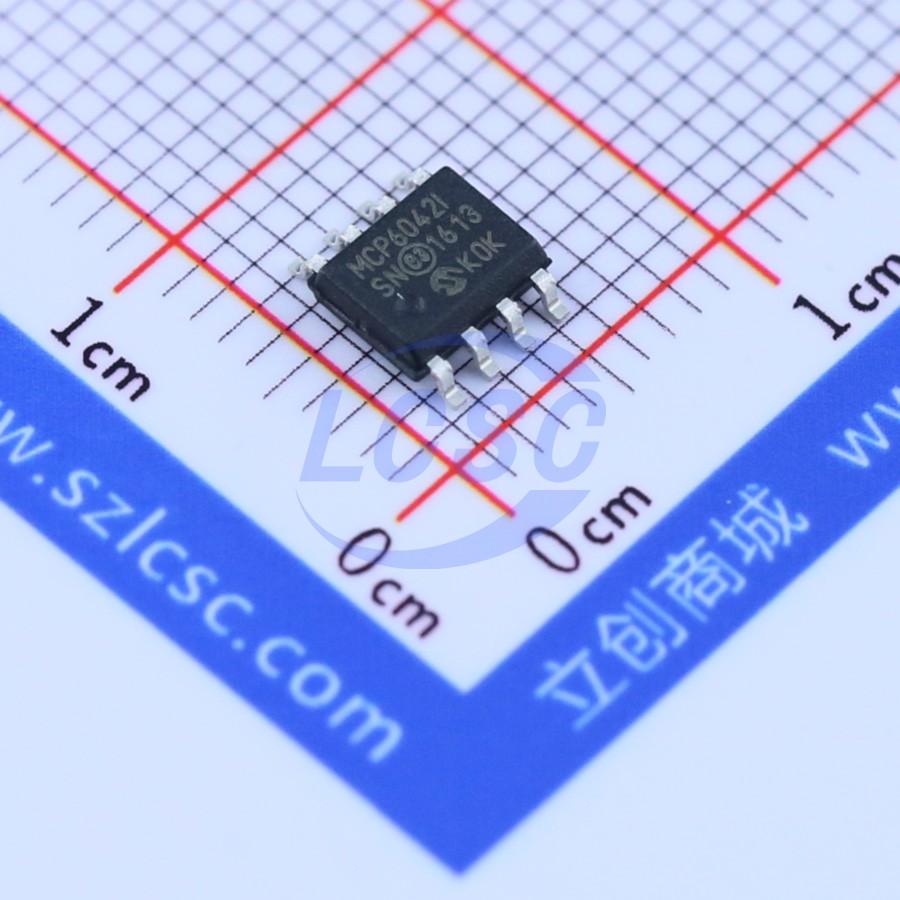

MCP6042T-I/SN

20mA 2 3mV 3V/ms 80dB 1pA 14kHz 600nA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

600 nA, Rail-to-Rail Input/Output Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6042T-I/SN
Store part #: C19250
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20,199 in stock

#C19250

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹128.62	₹128.62
10+	₹104.07	₹1,040.70
30+	₹91.68	₹2,750.40
100+	₹79.30	₹7,930.00
500+	₹72.13	₹36,065.00
1,000+	₹68.23	₹68,230.00

Quantity (min 1)

1 × ₹128.62

₹128.62

excl. GST

₹151.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,300 per reel

MCP6042T-I/SN

₹128.62 for 1 + GST

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 3V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 14kHz
Quiescent Current: 600nA
Features: Built-in compensation;ESD protection
Input Voltage Noise Density: 170nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.4V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,300 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.227 g

Overview

The MCP6041/2/3/4 family of operational amplifiers (op amps) operate with a single supply voltage as low as 1.4V, while drawing less than 1 μA (maximum) of quiescent current per amplifier. These devices are also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The MCP6041/2/3/4 amplifiers have a gain-bandwidth product of 14 kHz (typical) and are unity gain stable. These specifications make these op amps appropriate for low frequency applications, such as battery current monitoring and sensor conditioning. The MCP6041/2/3/4 family operational amplifiers are offered in single (MCP6041), single with Chip Select (CS) (MCP6043), dual (MCP6042), and quad (MCP6044) configurations. The MCP6041 device is available in the 5-lead SOT-23 package, and the MCP6043 device is available in the 6-lead SOT-23 package.

Applications

Toll Booth Tags
Wearable Products
Temperature Measurement
Battery Powered

Key features

Low Quiescent Current: 600 nA/amplifier (typical)
Rail-to-Rail Input/Output
Gain Bandwidth Product: 14 kHz (typical)
Wide Supply Voltage Range: 1.4V to 6.0V
Unity Gain Stable
Available in Single, Dual, and Quad
Chip Select (CS) with MCP6043
Available in 5-lead and 6-lead SOT-23 Packages
Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
