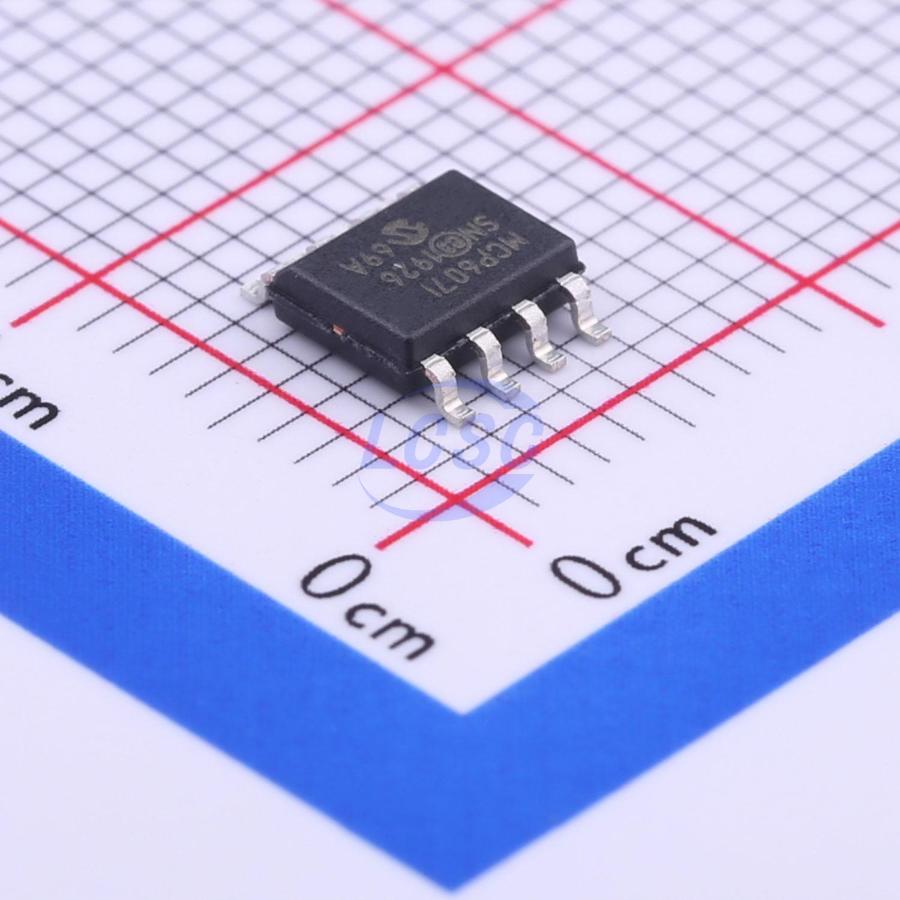

MCP607T-I/SN

The MCP606/7/8/9 family of operational amplifiers (op amps) are unity-gain stable with low offset voltage (250 μV maximum). Performance characteristics include rail-to-rail output swing capability and low input bias current (80 pA at +85°C, maximum). These features make this family of op amps well suited for single-supply, precision, high-impedance, battery-powered applications. The single is available in standard 8-lead PDIP, SOIC and TSSOP packages, as well as in a SOT-23-5 package. The single MCP608 with Chip Select (CS) is offered in the standard 8-lead PDIP, SOIC and TSSOP packages. The dual MCP607 is offered in the standard 8-lead PDIP, SOIC and TSSOP packages. Finally, the quad MCP609 is offered in the standard 14-lead PDIP, SOIC and TSSOP packages. All devices are fully specified from -40°C to +85°C, with power supplies from 2.5V to 6.0V.

Applications

• Battery Power Instruments
• High-lmpedance Applications
• Strain Gauges
• Medical Instruments
• Test Equipment

Key features

• Low Input Offset Voltage: 250 μV (maximum)
• Rail-to-Rail Output
• Low Input Bias Current: 80 pA (maximum at +85°C)
• Low Quiescent Current: 25 μA (maximum)
• Power Supply Voltage: 2.5V to 6.0V
• Unity-Gain Stable
• Chip Select (CS) Capability: MCP608
• Industrial Temperature Range: -40°C to +85°C
• No Phase Reversal
• Available in Single, Dual and Quad Packages
