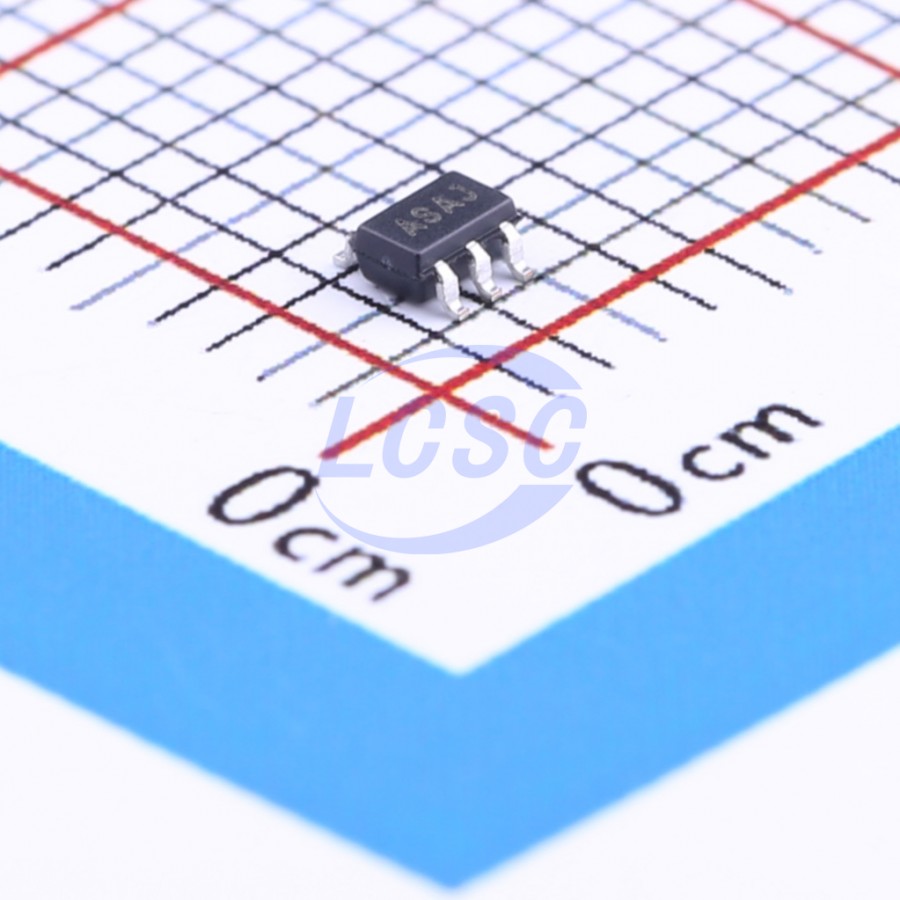

MCP6231UT-E/LT

23mA 1 5mV 150V/ms 75dB 1pA 20uA 300kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

20 μA, 300 kHz Rail-to-Rail Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MCP6231UT-E/LT
Store part #: C148003
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,023 in stock

#C148003

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹71.98	₹71.98
10+	₹57.25	₹572.50
30+	₹50.96	₹1,528.80
100+	₹42.93	₹4,293.00
500+	₹39.47	₹19,735.00
1,000+	₹37.30	₹37,300.00

Quantity (min 1)

1 × ₹71.98

₹71.98

excl. GST

₹84.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6231UT-E/LT

₹71.98 for 1 + GST

Specifications

Output Current: 23mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 150V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 75dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 20uA
Gain Bandwidth Product: 300kHz
Features: ESD protection
Input Voltage Noise Density: 52nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.035 g

Overview

The MCP6231/1R/1U/2/4 operational amplifiers (op amps) provide wide bandwidth for the quiescent current. The MCP6231/1R/ 1U/2/4 family has a 300 kHz gain bandwidth product and 65°C (typical) phase margin. This family operates from a single supply voltage as low as 1.8V while drawing 20 μA (typical) quiescent current. In addition, the MCP6231/1R/1U/2/4 family supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS - 300 mV. These op amps are designed in an advanced CMOS process.

Applications

Automotive
Portable Equipment
Transimpedance amplifiers
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Gain Bandwidth Product: 300 kHz (typical)
Supply Current: IQ = 20 μA (typical)
Supply Voltage: 1.8V to 6.0V
Rail-to-Rail Input/Output
Extended Temperature Range: -40°C to +125°C
Available in 5-Pin SC70 and SOT-23 packages
