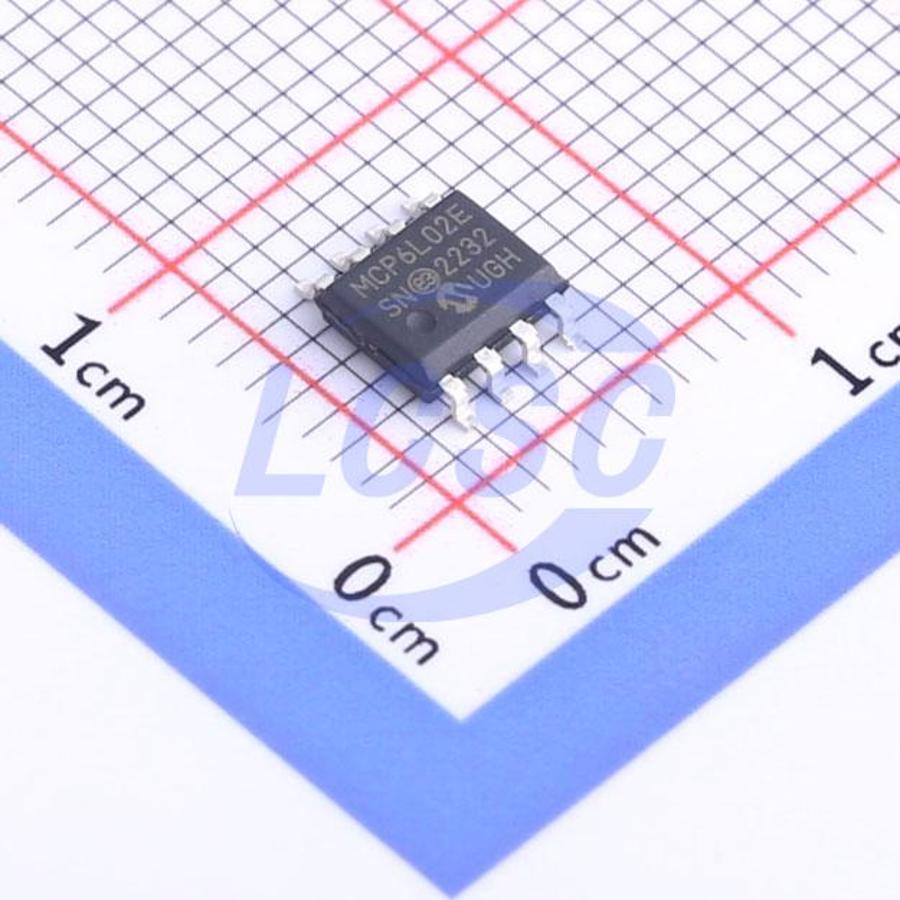

MCP6L02T-E/SN

20mA 2 1mV 600V/ms 78dB 2pA 85uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

1 MHz, 85 μA Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6L02T-E/SN
Store part #: C623781
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,135 in stock

#C623781

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹54.81	₹274.05
50+	₹42.75	₹2,137.50
150+	₹37.57	₹5,635.50
500+	₹30.64	₹15,320.00
3,300+	₹27.77	₹91,641.00
6,600+	₹26.05	₹1,71,930.00

Quantity (min 5, multiples of 5)

5 × ₹54.81

₹274.05

excl. GST

₹323.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,300 per reel

MCP6L02T-E/SN

₹274.05 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 1mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 78dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 85uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 24nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,300 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.12 g

Overview

The MCP6L01/1R/1U/2/4 family of operational amplifiers (op amps) supports general purpose applications. The combination of rail-to-rail input and output, low quiescent current and bandwidth fit into many applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and a low 85 µA per amplifier quiescent current. These op amps operate on supply voltages between 1.8V and 6.0V, with rail-to-rail input and output swing. They are available in the extended temperature range.

Applications

Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in SC70 and SOT-23 Packages
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 85 µA/Amplifier (typical)
Extended Temperature Range: -40°C to +125°C
Available in Single, Dual and Quad Packages
