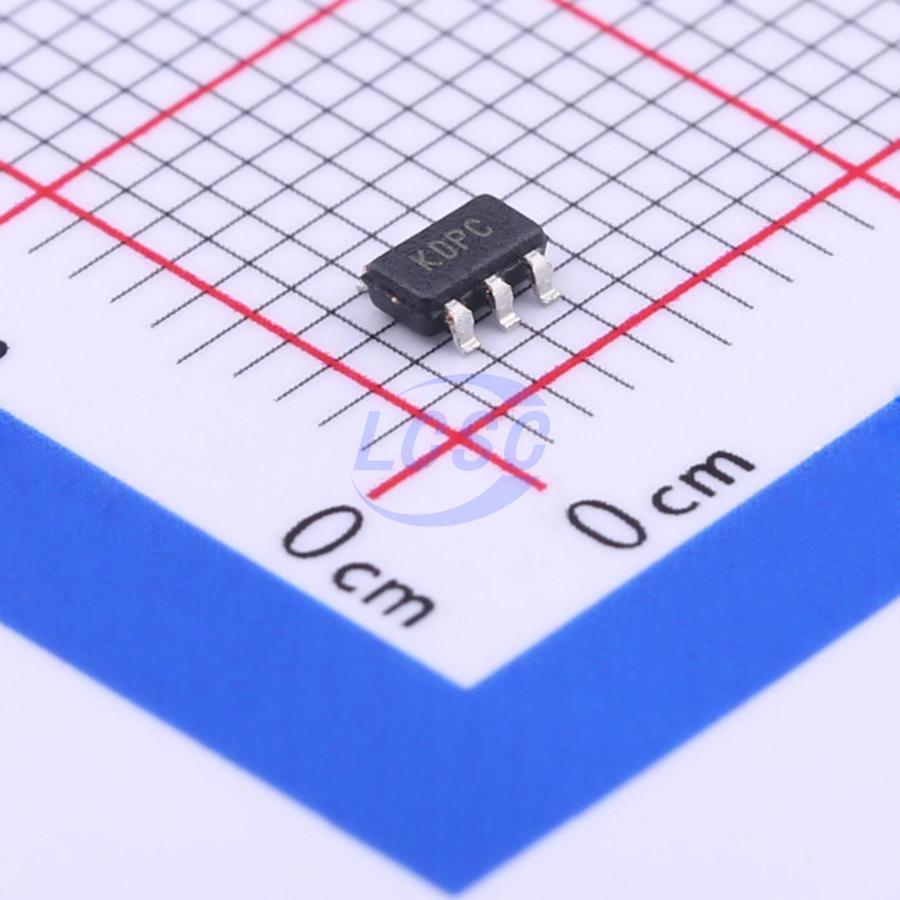

MCP73831T-2ACI/OT

3.75V~6V 1 Lithium Battery 550mA SOT-23-5 Battery Chargers RoHS

PopularSOT-23-5ROHS3 CompliantActive

Miniature Single-Cell, Fully Integrated Li-Ion, Li-Polymer Charge Management Controllers

Manufacturer: MICROCHIP
Manufacturer part #: MCP73831T-2ACI/OT
Store part #: C424093
Package / case: SOT-23-5
Category: Battery Chargers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,028 in stock

#C424093

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹104.42	₹104.42
10+	₹84.46	₹844.60
30+	₹74.47	₹2,234.10
100+	₹64.69	₹6,469.00
500+	₹58.40	₹29,200.00
1,000+	₹55.37	₹55,370.00

Quantity (min 1)

1 × ₹104.42

₹104.42

excl. GST

₹123.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP73831T-2ACI/OT

₹104.42 for 1 + GST

Specifications

Voltage - Supply: 3.75V~6V
Quiescent Current: 53uA
Operating Temperature: -40℃~+85℃
Number of Cells: 1
Features: Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Reverse current blocking;Under-voltage lockout
Battery Temperature Detection: Not supported
Type of Battery: Lithium Battery
The Chip Type: Charging IC
Charge Current - Max: 550mA
Charging Saturation Voltage: 4.2V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.039 g

Overview

The MCP73831/2 devices are highly advanced linear charge management controllers for use in space-limited, cost-sensitive applications. The MCP73831/2 are available in an 8-Lead, 2 mm×3 mm DFN package or a 5-Lead, SOT-23 package. Along with their small physical size, the low number of external components required make the MCP73831/2 ideally suited for portable applications. For applications charging from a USB port, the MCP73831/2 adhere to all the specifications governing the USB power bus. The MCP73831/2 employ a constant-current/constant-voltage charge algorithm with selectable preconditioning and charge termination. The constant voltage regulation is fixed with four available options: 4.20V, 4.35V, 4.40V or 4.50V, to accommodate new, emerging battery charging requirements. The constant current value is set with one external resistor. The MCP73831/2 devices limit the charge current based on die temperature during high power or high ambient conditions. This thermal regulation optimizes the charge cycle time while maintaining device reliability. Several options are available for the preconditioning threshold, preconditioning current value, charge termination value and automatic recharge threshold. The preconditioning value and charge termination value are set as a ratio or percentage of the programmed constant current value. Preconditioning can be disabled. The MCP73831/2 devices are fully specified over the ambient temperature range of -40°C to +85°C.

Applications

Lithium-Ion/Lithium-Polymer Battery Chargers
Personal Data Assistants
Cellular Telephones
Digital Cameras
MP3 Players
Bluetooth Headsets
USB Chargers

Key features

Linear Charge Management Controller:
Integrated Pass Transistor - Integrated Current Sense - Reverse Discharge Protection
High Accuracy Preset Voltage Regulation: ±0.75%
Four Voltage Regulation Options: 4.20V, 4.35V, 4.40V, 4.50V
Programmable Charge Current: 15 mA to 500 mA
Selectable Preconditioning: 10%, 20%, 40%, or Disable
Selectable End-of-Charge Control: 5%, 7.5%, 10%, or 20%
Charge Status Output - Tri-State Output - MCP73831 - Open-Drain Output - MCP73832
Automatic Power-Down
Thermal Regulation
Temperature Range: -40°C to +85°C
Packaging:
8-Lead, 2 mm×3 mm DFN
5-Lead, SOT-23

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TP4055-MS#C22462568MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	105	₹11.97 · 105 in stock	View
LTH7(MS)#C49208526MSKSEMI · SOT23-5L	MSKSEMI	SOT23-5L	4,650	₹2.82 · 4,650 in stock	View
MCP73832T-2ATI/OT#C173380MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	1	₹75.24 · 1 in stock	View
MCP73831T-2DCI/OT#C625597MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	1,950	₹210.32 · 1,950 in stock	View
LP4060B5F#C517259LOWPOWER · SOT-23-5	LOWPOWER	SOT-23-5	3,070	₹7.89 · 3,070 in stock	View

Questions about MCP73831T-2ACI/OT

What Reliability Features and Standards Does the MCP73831T-2ACI/OT Offer?

The MCP73831T-2ACI/OT incorporates thermal regulation, reverse discharge protection, and a constant-current/constant-voltage charging algorithm to enhance charging safety and reliability. This Microchip battery charger IC is also available as a RoHS-compliant electronic component, making it suitable for modern consumer and industrial designs.

What Is the Price and Availability of the MCP73831T-2ACI/OT?

The MCP73831T-2ACI/OT price varies based on order quantity and packaging options. Many authorized electronic component suppliers offer this IC in stock with volume discounts, making it suitable for both prototype development and large-scale production orders.

Is the MCP73831T-2ACI/OT Compatible With Other Lithium Battery Charging ICs?

The MCP73831T-2ACI/OT is designed for charging single-cell Li-Ion and Li-Polymer batteries and may be considered alongside similar charger ICs in the MCP73831/MCP73832 family. When selecting an equivalent part, engineers should compare the datasheet specifications, package type, charge current settings, charge termination options, and system requirements to ensure compatibility.

What Applications Is the MCP73831T-2ACI/OT Commonly Used In?

This battery charger electronic component is widely used in portable and rechargeable devices requiring efficient single-cell lithium battery management. Common applications include USB-powered chargers, Bluetooth devices, wearable electronics, digital cameras, handheld instruments, and IoT products.

What Are the Key Specifications of the MCP73831T-2ACI/OT Battery Charging IC?

The MCP73831T-2ACI/OT is a single-cell Li-Ion/Li-Polymer battery charger IC from Microchip housed in a compact SOT-23-5 package. Key specifications include a 3.75V to 6V supply voltage range, 4.2V charge termination voltage, programmable charge current up to 500mA+, and an operating temperature range of -40°C to +85°C. Refer to the official datasheet for detailed electrical characteristics and charging profiles.
