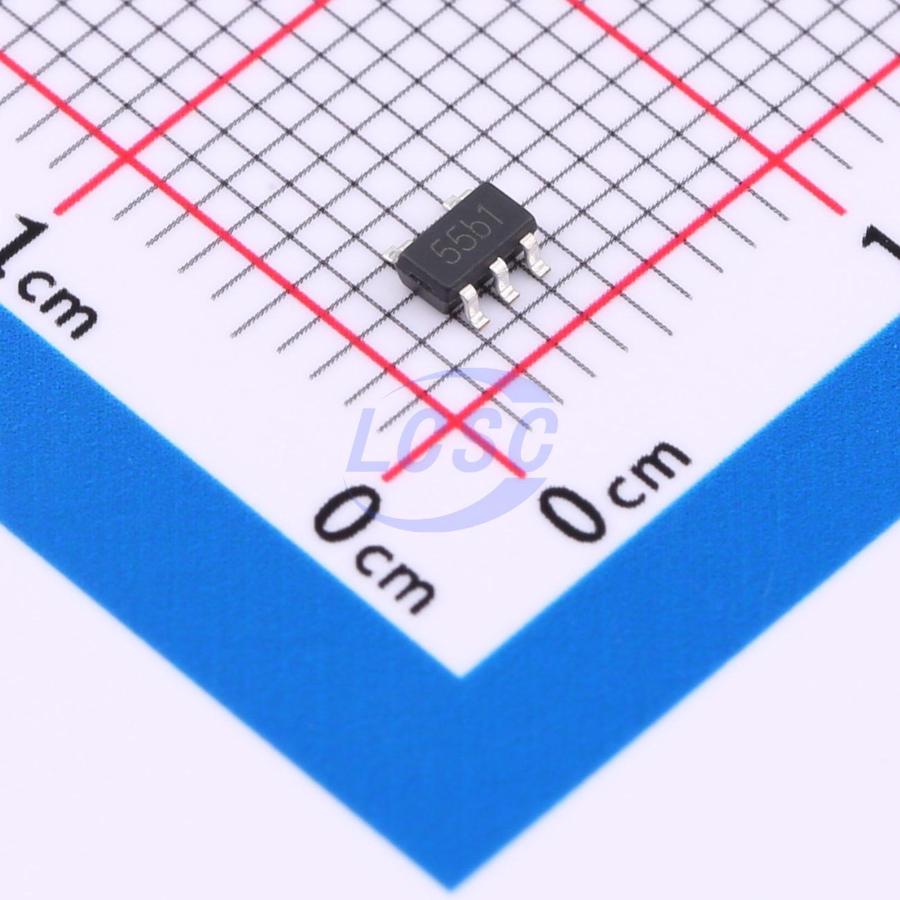

TP4055-MS
Linear Charging IC Lithium-ion/Polymer SOT-23-5
Single-cell lithium-ion battery charger
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TP4055-MS
- Store part #
- C22462568
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C22462568
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.97 | ₹59.85 |
| 50+ | ₹9.37 | ₹468.50 |
| 150+ | ₹8.07 | ₹1,210.50 |
| 500+ | ₹7.09 | ₹3,545.00 |
| 3,000+ | ₹6.31 | ₹18,930.00 |
| 6,000+ | ₹5.93 | ₹35,580.00 |
5 × ₹11.97
₹59.85
excl. GST
₹70.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4055-MS
₹59.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 45uA
- Operating Voltage
- 4V~9V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
TP4055-MS is a complete single-cell lithium-ion battery charger featuring battery polarity reversal protection and 5V input power polarity reversal protection. Its SOT23-5 package and minimal external component count make the TP4055-MS an ideal choice for portable applications. The internal PMOSFET architecture, combined with an anti-backflow charging circuit, eliminates the need for external sense resistors and isolation diodes. Thermal feedback automatically regulates the charge current to limit die temperature during high-power operation or elevated ambient temperature conditions. The charge voltage is fixed at 4.2V, and the charge current is set externally via a single resistor. When the battery reaches 4.2V, the charge current drops to 1/10 of the programmed value and the TP4055-MS automatically terminates charging. When the input voltage (AC adapter or USB power supply) is removed, the TP4055-MS automatically enters a low-current state with battery leakage current below 0.1µA. Additional features of the TP4055-MS include input power adaptation, charge current monitoring, undervoltage lockout, automatic recharge, and a status pin for charge indication.
Applications
- Bluetooth applications
- Charging docks
- Cellular phones, PDAs
Key features
- Lithium battery positive/negative polarity reversal protection
- Vcc input 5V reverse polarity protection with adaptive under-voltage charging
- Compatible with programmable charging current from 5mA to 600mA; CC/CV operation with temperature-adaptive charging rate maximization
- ±1% accuracy 4.2V preset charging voltage with auto-recharge
- 1 open-drain charge status output pin
- C/10 charge termination
- Standby mode supply current: 25uA
- 2.9V trickle charging
- Soft-start inrush current limiting
- 5-pin SOT-23-5 package
