GigaDevice Semicon BeijingDatasheet (PDF)

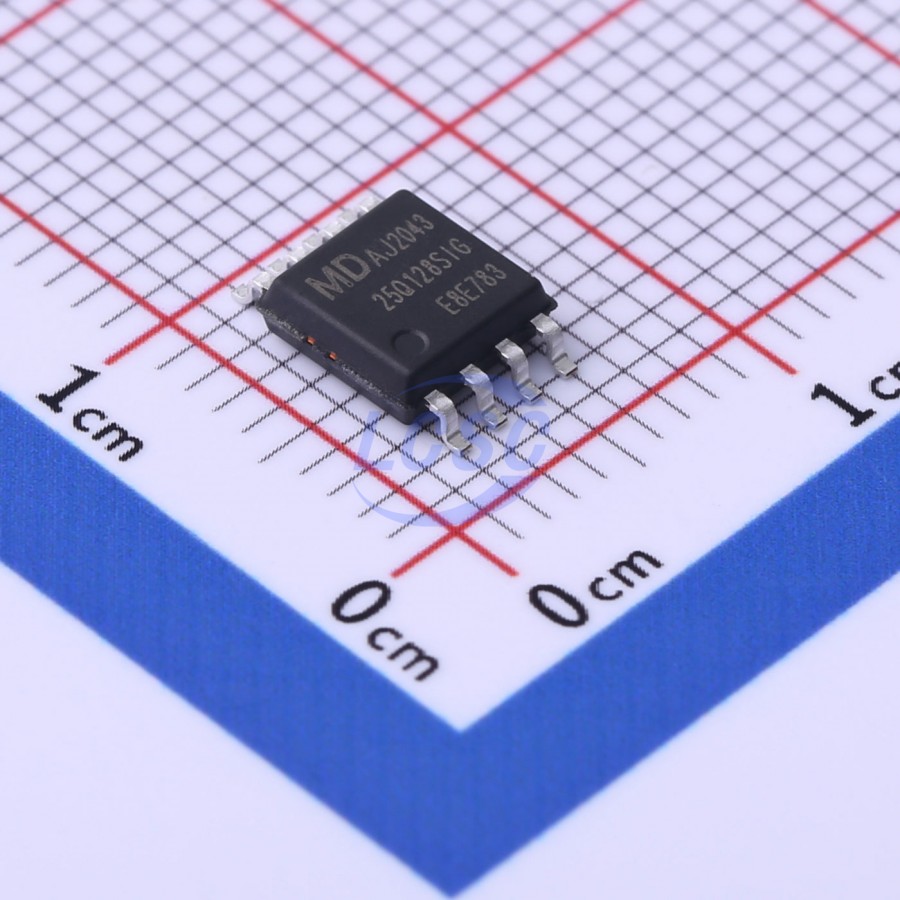

MD25Q128SIG
128Mbit 2.7V~3.6V 104MHz SPI SOIC-8-208mil Memory
SOIC-8-208milRoHSActive
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- MD25Q128SIG
- Store part #
- C2832662
- Package / case
- SOIC-8-208mil
- Category
- Memory
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,085 in stock
#C2832662
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.17 | ₹156.17 |
| 10+ | ₹127.68 | ₹1,276.80 |
| 30+ | ₹111.81 | ₹3,354.30 |
| 95+ | ₹94.18 | ₹8,947.10 |
| 475+ | ₹86.14 | ₹40,916.50 |
| 1,045+ | ₹82.66 | ₹86,379.70 |
1 × ₹156.17
₹156.17
excl. GST
₹184.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 95 per tube
MD25Q128SIG
₹156.17 for 1 + GST
Specifications
- Memory Size
- 128Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 200ms@(32KB)
- Page Programming Time (Tpp)
- 600us
- Standby Supply Current
- 5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 95 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The MD25Q128 (128M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/ RESET#). The Dual I/O data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed of 416Mbits/s.
Key features
- 128M-bit Serial Flash
- 16384K-byte
- 256 bytes per programmable page
- Fast Program/Erase Speed
- Page Program time: 0.6ms typical
- Sector Erase time: 50ms typical
- Block Erase time: 0.2/0.3s typical
- Chip Erase time: 60s typical
- Standard, Dual, Quad SPI
- Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#/ RESET#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#/ RESET#
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
- Flexible Architecture
- Uniform Sector of 4K-byte
- Uniform Block of 32/64k-byte
- High Speed Clock Frequency
- 104MHz for Standard and Dual SPI fast read with 30PF load
- Dual I/O Data transfer up to 208Mbits/s
- Quad I/O Data transfer up to 416Mbits/s
- Low Power Consumption
- 25mA maximum active current
- 5uA maximum power down current
- Advanced Security Features
- 3x1024-Byte Security Registers With OTP Locks
- Software/Hardware Write Protection
- Write protect all/portion of memory via software
- Enable/Disable protection with WP# Pin
- Top/Bottom Block protection
- Single Power Supply Voltage
- Full voltage range: 2.7~3.6V
- Allows XIP (execute in place) Operation
- Continuous Read With 8/16/32/64-byte Wrap
- Minimum 100,000 Program/Erase Cycles
- Package Information
- SOP8 (208mil)
- VSOP8 (208mil)
- SOP16 (300mil)
- DIP8 (300mil)
- WSON8 (8*6mm)
- WSON8 (6*5mm)
- Data Retention
- 20-year data retention typical
