MICRONEDatasheet (PDF)

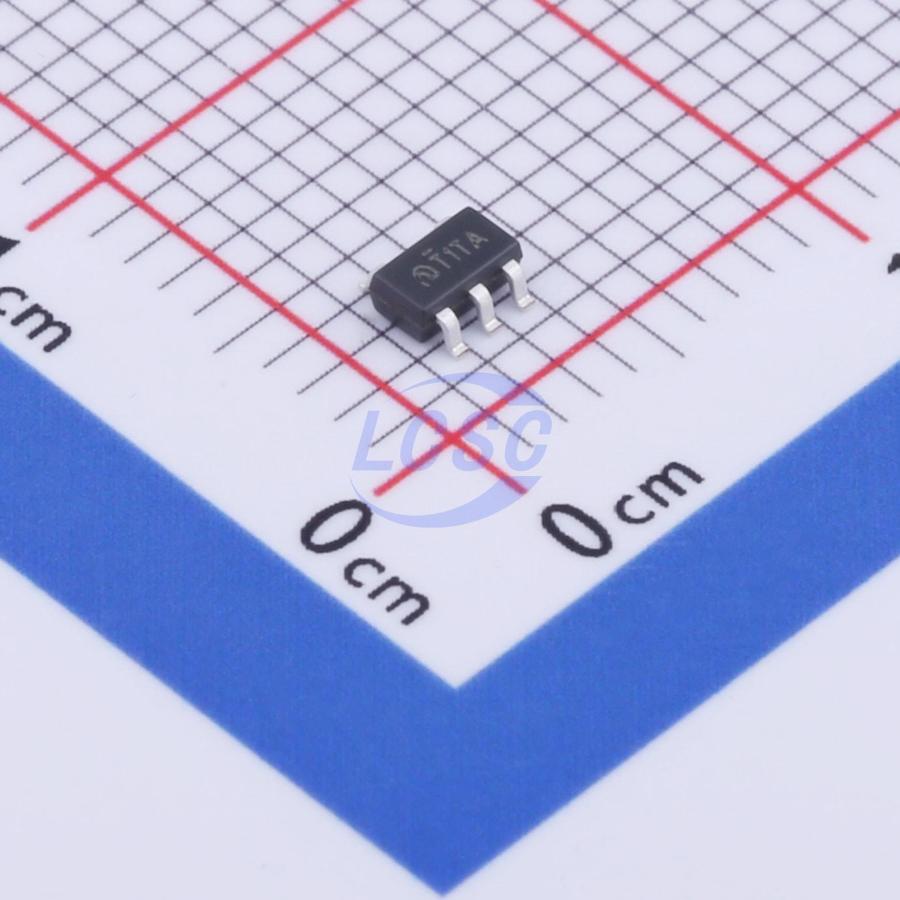

ME321AM5G
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5RoHSActive
1 MHz, rail-to-rail I/O, low-power operational amplifier
- Manufacturer
- MICRONE
- Manufacturer part #
- ME321AM5G
- Store part #
- C910807
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,070 in stock
#C910807
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.73 | ₹87.30 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.91 | ₹1,773.00 |
| 3,000+ | ₹5.03 | ₹15,090.00 |
| 6,000+ | ₹4.46 | ₹26,760.00 |
| 9,000+ | ₹4.18 | ₹37,620.00 |
10 × ₹8.73
₹87.30
excl. GST
₹103.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME321AM5G
₹87.30 for 10 + GST
Specifications
- Output Current
- 85mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 580V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 65uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
ME321 is a rail-to-rail input/output, voltage feedback op-amp. It features a wide input common-mode range and output swing, with a minimum supply voltage of only 2.1V and a maximum of 5.5V. The operating temperature range is -40°C ~ 125°C. The ME321 draws only 65μA of quiescent current while delivering 1MHz unity-gain bandwidth. With an input offset current of only 10pA, the ME321 is well suited for integrators, photodiodes, piezoresistive sensors, and other applications. Rail-to-rail I/O greatly simplifies design for system engineers. Low quiescent current makes it ideal for battery-powered, low-power systems.
Applications
- Sensors
- Pressure sensing amplifiers
- Mobile communication device audio output
- Portable applications
- Smoke detection
- Battery-powered devices
Key features
- General-purpose, low-power rail-to-rail I/O
- Typical input offset voltage: 0.8mV
- Gain stable
- Unity-gain bandwidth: 1MHz
- Low input bias current: 10pA
- Supply voltage range: 2.1V ~ 5.5V
- Input voltage range: -0.1V ~ +5.5V (at VS = 5.5V)
- Low quiescent current: 65μA
- Operating temperature range: -40°C ~ 125°C
