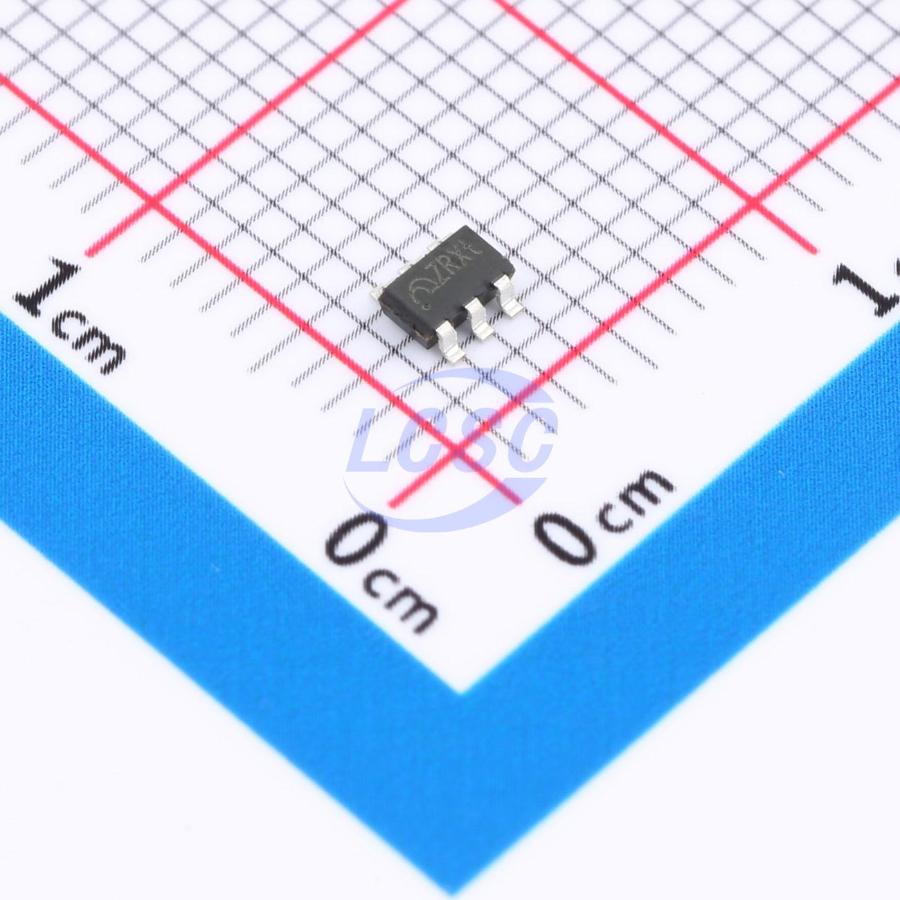

ME4055AM6G-N
Battery Charging IC Lithium-ion/Polymer SOT-23-6
Lithium battery charging management chip
- Manufacturer
- MICRONE
- Manufacturer part #
- ME4055AM6G-N
- Store part #
- C82121
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C82121
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.03 | ₹110.30 |
| 100+ | ₹9.02 | ₹902.00 |
| 300+ | ₹8.02 | ₹2,406.00 |
| 3,000+ | ₹7.01 | ₹21,030.00 |
| 6,000+ | ₹6.40 | ₹38,400.00 |
| 9,000+ | ₹6.10 | ₹54,900.00 |
10 × ₹11.03
₹110.30
excl. GST
₹130.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME4055AM6G-N
₹110.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 55uA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 4V~9V
- Type of Battery
- Lithium Battery
- The Chip Type
- Charging IC
- Charge Current - Max
- 800mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
ME4055-N is a single-cell lithium-ion battery constant-voltage/constant-current charge management IC with a 9V voltage rating and a maximum charge current of 800mA. Since linear chargers generate significant heat under large input-to-output voltage differentials, an internal thermal feedback circuit is incorporated to regulate the chip temperature during charging by reducing the charge current to a lower level, accommodating the system's thermal dissipation requirements. The SOT23-6 package with minimal external components makes it an ideal choice for portable applications. ME4055-N requires no current sense resistor and no external blocking diode for reverse-current protection. The charge termination voltage is fixed at 4.2V/4.34V, and the charge current is adjustable via an external resistor. When the charge current drops to 1/10 of the constant-current value, ME4055-N terminates charging. When the input voltage (adapter or USB) is removed, ME4055-N enters sleep mode. The internal charge path is automatically disabled and the input voltage drops. In this state, the battery leakage current is reduced to below 2µA. When ME4055-N is powered but the battery is removed, the chip current drops to 55µA to minimize system power consumption.
Applications
- Mobile phones
- Digital cameras
- Bluetooth applications
- Portable device USB power, adapters
Key features
- Battery temperature detection, input undervoltage lockout, automatic recharge, and two charge indicator pins
- Maximum operating voltage up to 9V for improved system reliability
- Programmable charge current up to 800mA
- Reverse battery polarity protection
- Internal thermal feedback protection to keep the system within a safe charging range
- No MOSFET, sense resistor, or isolation diode required
- Single-cell complete linear charger in SOT23-6 package
- Constant current/constant voltage switching
- Fixed charge termination voltage of 4.2V/4.34V with ±1% accuracy
- Automatic recharge function
- Dual charge status outputs with no-battery and fault status indication
- C/10 charge termination
- Standby current 55μA
- 2.9V trickle charge threshold
- Soft-start to limit inrush current
- Battery temperature monitoring
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME4055AM6G#C610261MICRONE · SOT-23-6 | MICRONE | SOT-23-6 | 1,755 | ₹14.57 · 1,755 in stock | View |
