MICRONEDatasheet (PDF)

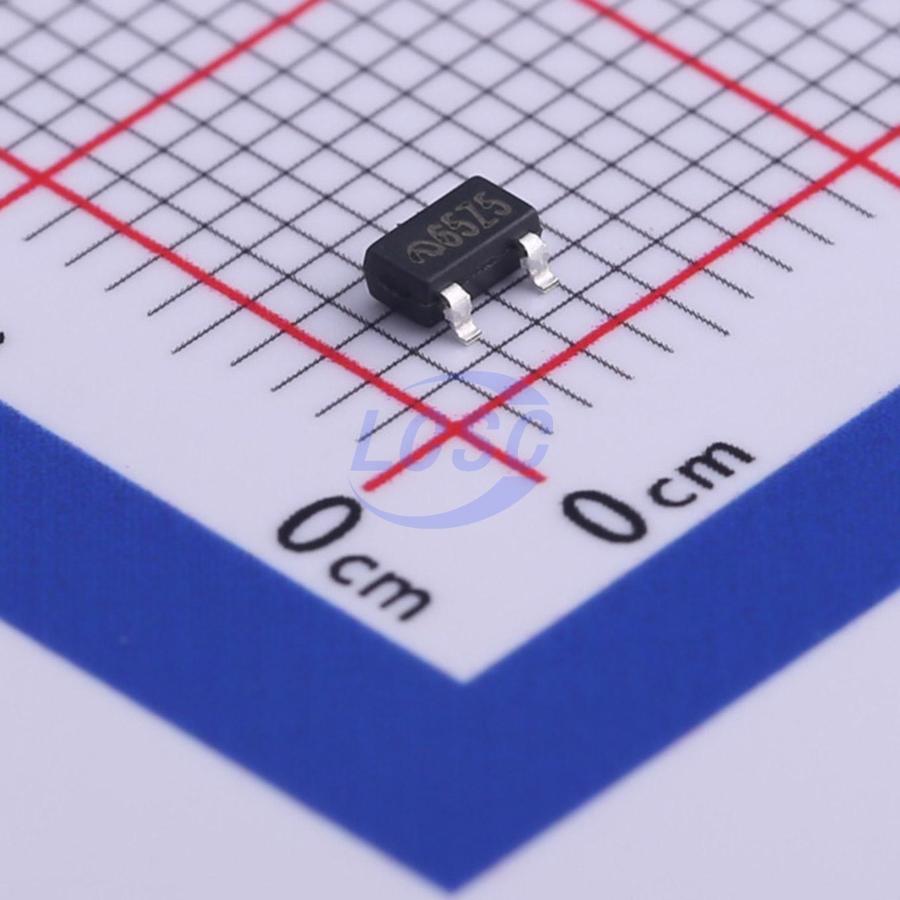

ME6206A30M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A30M3G
- Store part #
- C487911
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,630 in stock
#C487911
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.27 | ₹62.70 |
| 100+ | ₹4.93 | ₹493.00 |
| 300+ | ₹4.26 | ₹1,278.00 |
| 3,000+ | ₹3.57 | ₹10,710.00 |
| 6,000+ | ₹3.16 | ₹18,960.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹6.27
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206A30M3G
₹62.70 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The ME6206 series are CMOS step-down voltage regulators with high ripple rejection, low power consumption, low dropout, and overcurrent/short-circuit protection. These devices feature very low quiescent current (8.0μA Typ.) and can deliver 300mA output current with minimal input-to-output voltage differential while maintaining good regulation. Due to the small dropout voltage and low quiescent current, these devices are especially suited for battery-powered products where extended battery life is desired, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Electronic equipment
- Automotive electronics
- Voltage reference sources
Key features
- High-precision output voltage: ±2%
- Output voltage: 1.5V~5.0V₁ (step 0.1V)
- Maximum operating voltage: 6V
- Ultra-low quiescent current (Typ.=8.0μA)
- High load driving capability
- Ultra-low dropout voltage: 0.18V at 80mA and 0.38V at 200mA
- Good input stability
- Low temperature coefficient
- Usable as both regulator and voltage reference
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6206A30XG#C236701MICRONE · SOT-23 | MICRONE | SOT-23 | 13,340 | ₹5.32 · 13,340 in stock | View |
 | ME6216A30XG#C2835774MICRONE · SOT-23 | MICRONE | SOT-23 | 480 | ₹5.15 · 480 in stock | View |
 | ME6211A30M3G-N#C236675MICRONE · SOT-23 | MICRONE | SOT-23 | 1,210 | ₹7.24 · 1,210 in stock | View |
 | ME6232A30M3G#C50387246MICRONE · SOT23-3 | MICRONE | SOT23-3 | 1,920 | ₹4.41 · 1,920 in stock | View |
 | ME6216A30M3G#C236656MICRONE · SOT-23 | MICRONE | SOT-23 | 2,230 | ₹6.24 · 2,230 in stock | View |
