MICRONEDatasheet (PDF)

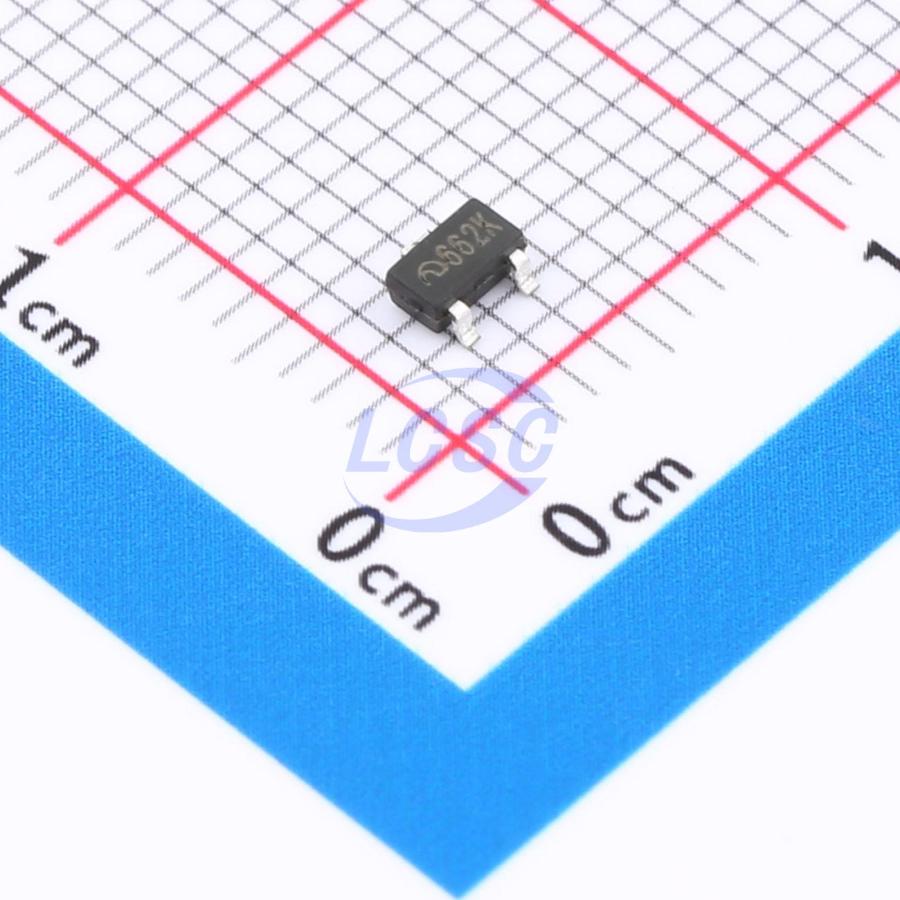

ME6206A33M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LRoHSActive
IC REG LINEAR 3.3V 300mA SOT-23-3L
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A33M3G
- Store part #
- C35259
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,660 in stock
#C35259
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.00 | ₹80.00 |
| 100+ | ₹6.55 | ₹655.00 |
| 300+ | ₹5.82 | ₹1,746.00 |
| 3,000+ | ₹4.91 | ₹14,730.00 |
| 6,000+ | ₹4.47 | ₹26,820.00 |
| 9,000+ | ₹4.25 | ₹38,250.00 |
10 × ₹8.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206A33M3G
₹80.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 9uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
The ME6206 series are CMOS step-down voltage regulators with high ripple rejection ratio, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices feature very low quiescent current (8.0μA Typ.) and can deliver 300mA output current with minimal input-to-output voltage differential while maintaining good regulation. Due to the small dropout voltage and low quiescent current, these devices are particularly suitable for battery-powered products where extended battery life is desired, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Electronic equipment
- Automotive electronics
- Voltage reference sources
Key features
- High-precision output voltage: ±2%
- Output voltage: 1.5V ~ 5.0V (step 0.1V)
- Maximum operating voltage: 6V
- Ultra-low quiescent bias current (Typ. = 8.0μA)
- Strong load capability: Iout = 300mA at Vin = 4.3V and Vout = 3.3V
- Ultra-low dropout voltage: 0.2V at 90mA and 0.40V at 200mA
- Good input stability
- Low temperature coefficient
- Can be used as a regulator or voltage reference
- Package types: SOT-23-3, SOT-89-3, SOT-23, TO-92
