MICRONEDatasheet (PDF)

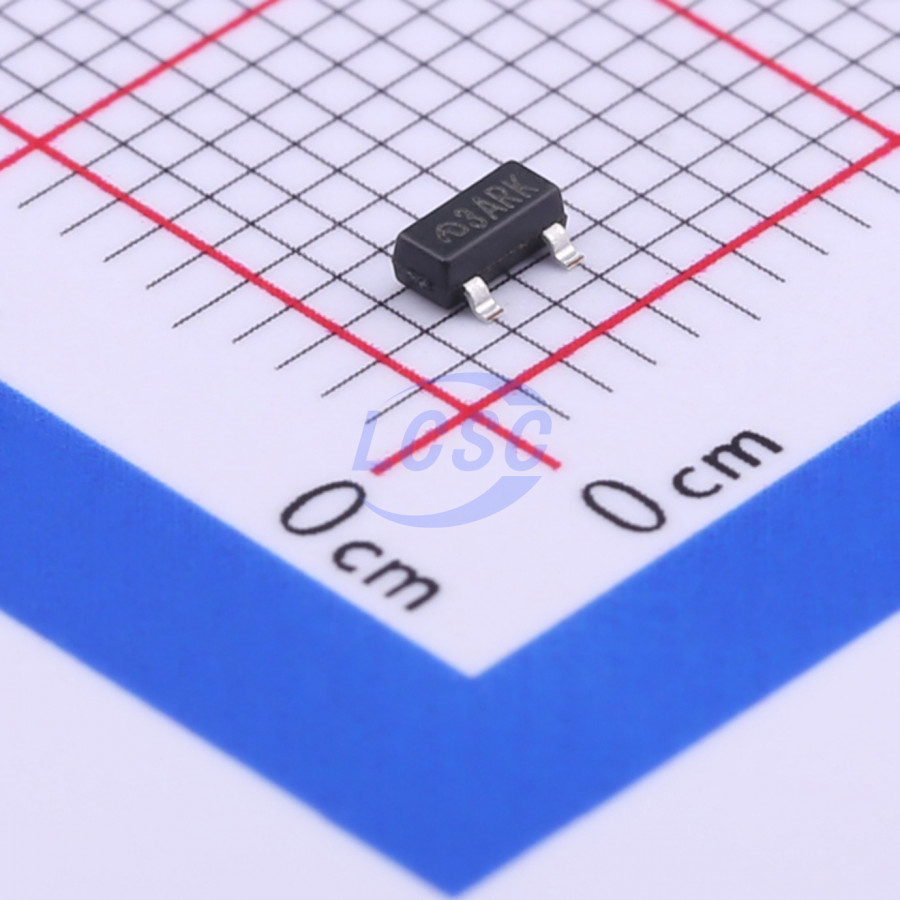

ME6216A33XG
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap. Compatible
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6216A33XG
- Store part #
- C236655
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,610 in stock
#C236655
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.26 | ₹62.60 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.39 | ₹1,317.00 |
| 3,000+ | ₹3.80 | ₹11,400.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.26
₹62.60
excl. GST
₹73.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6216A33XG
₹62.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
ME6216 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Output voltage range: 1.0V ~ 5.0V
- Input voltage: up to 6V
- Dropout Voltage: 110mV @ IOUT = 100mA, 240mV @ IOUT = 200mA
- Highly Accuracy: ±1%
- Low power consumption: 6uA (TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Excellent Input Stability
- Be available to regulator and reference voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6211A33M3G-N#C168807MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 17,750 | ₹8.48 · 17,750 in stock | View |
 | ME6231A33M3G#C2765181MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 1,16,330 | ₹12.30 · 1,16,330 in stock | View |
 | ME6118A33M3G#C427591MICRONE · SOT23-3 | MICRONE | SOT23-3 | 580 | ₹8.20 · 580 in stock | View |
 | ME6210A33M3G#C236680MICRONE · SOT23-3 | MICRONE | SOT23-3 | 17,630 | ₹8.82 · 17,630 in stock | View |
 | ME6119A33M3G#C841405MICRONE · SOT-23 | MICRONE | SOT-23 | 2,390 | ₹12.44 · 2,390 in stock | View |
