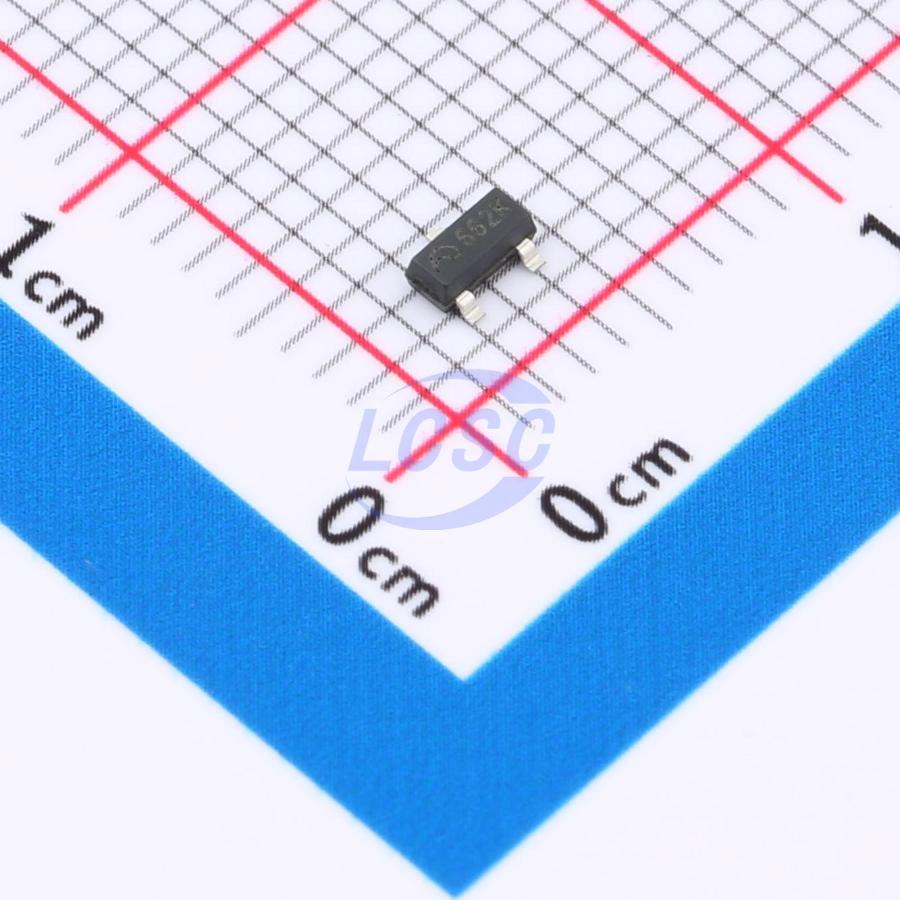

MICRONEDatasheet (PDF)
ME6206A33XG
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23RoHSActive
Positive voltage regulator compatible with low-power, low ESR capacitors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A33XG
- Store part #
- C161345
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51,260 in stock
#C161345
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.90 | ₹59.00 |
| 100+ | ₹4.75 | ₹475.00 |
| 300+ | ₹4.17 | ₹1,251.00 |
| 3,000+ | ₹3.64 | ₹10,920.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.12 | ₹28,080.00 |
10 × ₹5.90
₹59.00
excl. GST
₹69.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206A33XG
₹59.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Battery powered equipment
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Highly Accurate： ±2%
- Output voltage range： 1.5V~5.0V (selectable in 0.1V steps)
- Low power consumption：8uA(TYP.)
- Large output current：300mA (VIN = 4.3V, VOUT = 3.3V)
- Input voltage: up to 6 V
- Excellent Input Stability
- Be available to regulator and reference voltage
- Packages: SOT23 - 3，SOT89 - 3，SOT23，TO - 92
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6206A33M3G#C35259MICRONE · SOT-23-3L | MICRONE | SOT-23-3L | 14,660 | ₹8.00 · 14,660 in stock | View |
 | ME6216A33M3G#C126466MICRONE · SOT-23 | MICRONE | SOT-23 | 4,530 | ₹7.05 · 4,530 in stock | View |
 | ME6214A33M3G#C427598MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 36,030 | ₹11.35 · 36,030 in stock | View |
 | ME6210A33M3G#C236680MICRONE · SOT23-3 | MICRONE | SOT23-3 | 17,630 | ₹8.82 · 17,630 in stock | View |
