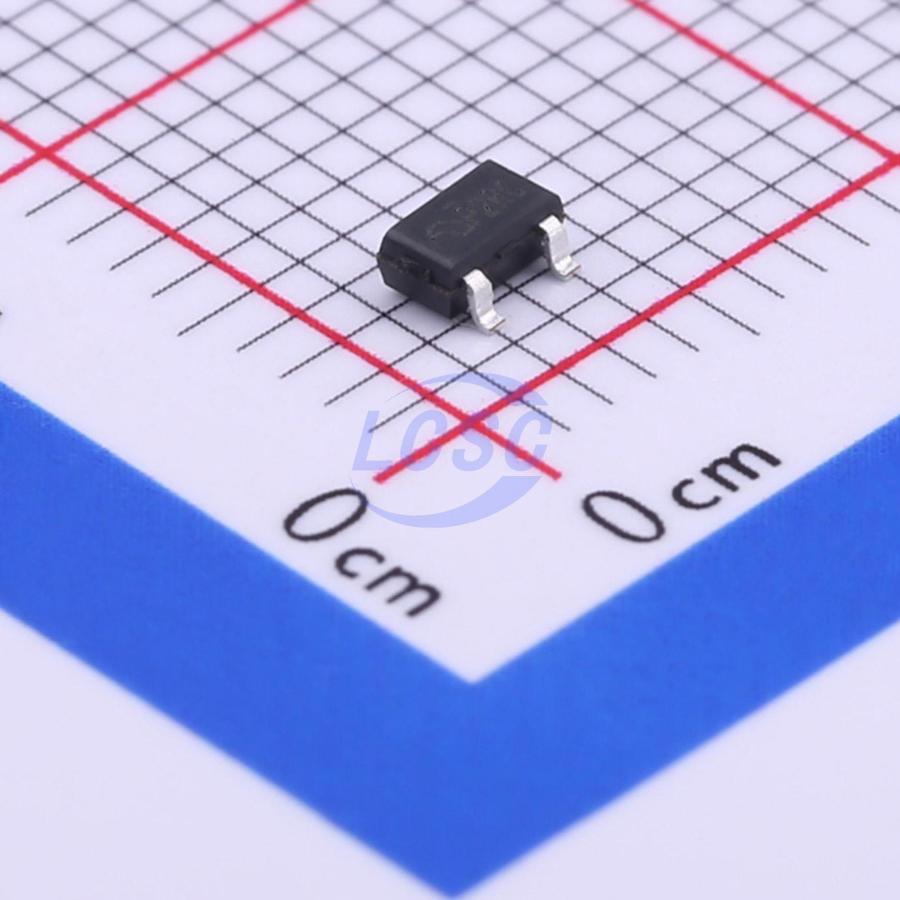

ME6214A33M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
SOT-23-3ROHS CompliantActive
Ultra-low power consumption, low dropout and high current linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6214A33M3G
- Store part #
- C427598
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,030 in stock
#C427598
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.35 | ₹56.75 |
| 50+ | ₹9.02 | ₹451.00 |
| 150+ | ₹7.86 | ₹1,179.00 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 3,000+ | ₹5.94 | ₹17,820.00 |
| 6,000+ | ₹5.60 | ₹33,600.00 |
5 × ₹11.35
₹56.75
excl. GST
₹66.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6214A33M3G
₹56.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Short Circuit Protection;Over Current Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The ME6214 series are ultra-low quiescent current, low dropout linear regulators fabricated using CMOS process. The regulator consumes approximately 0.7μA of quiescent current, with a shutdown current of 0.01μA (typical) when disabled. Features include built-in enable control, current limiting circuit, foldback short-circuit protection, and automatic output capacitor discharge via enable control.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Ultra-low quiescent current: Active: 0.7μA (typ.), Sleep: 0.01μA (typ.)
- Input voltage range: 2.0~18V
- Output voltage range: 1.5~5.0V (in 0.1V steps)
- Output accuracy: ±2%
- Input-output voltage differential: 160mV @ Iout = 100mA (3.3V)
- Output current: 300mA
- Current protection: Foldback short-circuit current 30mA
- Overcurrent protection
- Enable control: High = ON / Low = OFF, must not be left floating
- Output capacitor auto-discharge function
- ME6214C series: with enable pin
- ME6214A series: without enable pin
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6119A33M3G#C841405MICRONE · SOT-23 | MICRONE | SOT-23 | 2,390 | ₹12.44 · 2,390 in stock | View |
 | ME6118A33M3G#C427591MICRONE · SOT23-3 | MICRONE | SOT23-3 | 580 | ₹8.20 · 580 in stock | View |
 | ME6231A33M3G#C2765181MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 1,16,330 | ₹12.30 · 1,16,330 in stock | View |
 | ME6210A33M3G#C236680MICRONE · SOT23-3 | MICRONE | SOT23-3 | 17,630 | ₹8.82 · 17,630 in stock | View |
