MICRONEDatasheet (PDF)

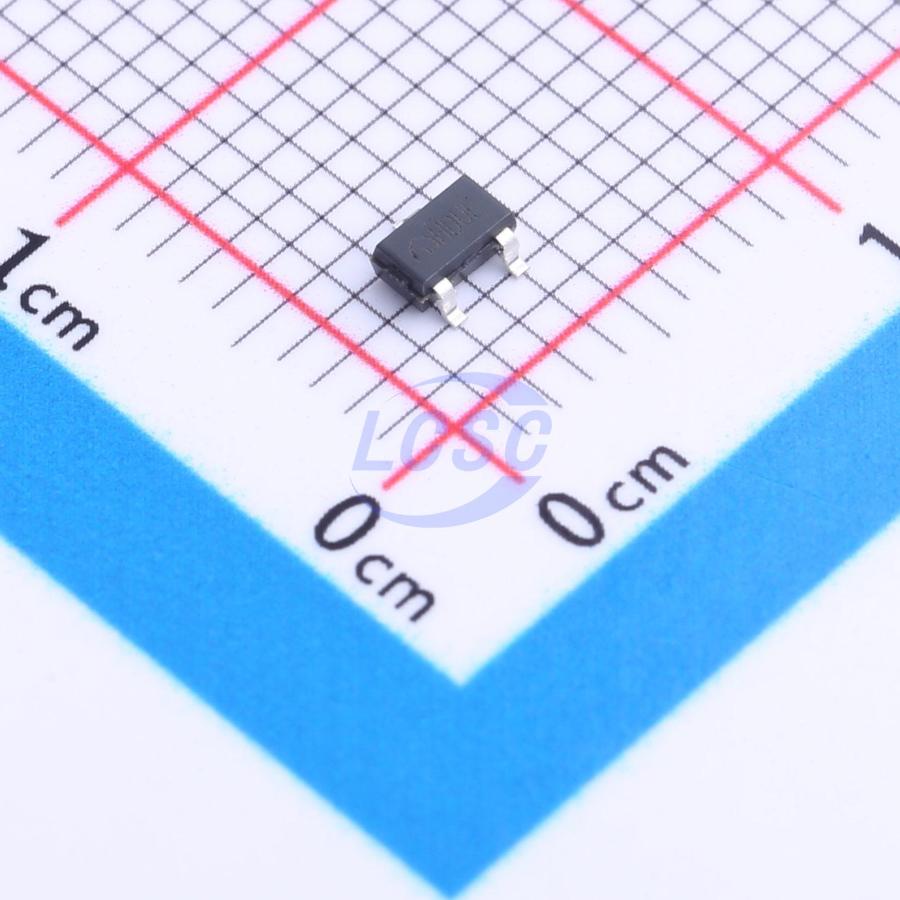

ME6230A33M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT23-3
SOT23-3ROHS CompliantActive
Low Power, High Accuracy, High PSRR LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6230A33M3G
- Store part #
- C2875118
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,970 in stock
#C2875118
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹6.01 | ₹1,803.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.62 | ₹27,720.00 |
| 9,000+ | ₹4.35 | ₹39,150.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6230A33M3G
₹86.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 400mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
Applications
- Mobile phones
- Cordless phones, radio communication equipment
- Portable gaming
- Cameras, camcorders
- Voltage reference sources
- Battery-powered devices
Key features
- High-accuracy CMOS LDO voltage regulator with low quiescent current, high PSRR, and low dropout voltage
- Internally includes voltage reference, error amplifier, pass transistor, current limiter, and phase compensator
- Foldback circuit in current limiter serves as output current limiter and short-circuit protection for output pin
- Fully compatible with low-ESR ceramic capacitors for reduced cost and improved output stability
- Maintains high output stability during frequent load transients with excellent transient response and high PSRR across a wide frequency range
- CE function allows disabling regulator output for significantly reduced power consumption
- Maximum output current: 400mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout voltage: 110mV @ ILOAD = 100mA
- Operating voltage range: 1.8V ~ 5.5V
- Output voltage range: 1.2V ~ 5.0V
- High accuracy: ±1%
- Low quiescent current: 1.8uA (typ.)
- Standby current: 0uA (typ.)
- High ripple rejection: 70dB @ 1KHz (ME6230C33)
- Load regulation: 0.035%/V (typ.)
- Built-in thermal protection and current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6231A33M3G#C2765181MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 1,16,330 | ₹12.30 · 1,16,330 in stock | View |
 | ME6118A33M3G#C427591MICRONE · SOT23-3 | MICRONE | SOT23-3 | 580 | ₹8.20 · 580 in stock | View |
 | ME6210A33M3G#C236680MICRONE · SOT23-3 | MICRONE | SOT23-3 | 17,630 | ₹8.82 · 17,630 in stock | View |
 | ME6211A33M3G-N#C168807MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 17,750 | ₹8.48 · 17,750 in stock | View |
 | ME6119A33M3G#C841405MICRONE · SOT-23 | MICRONE | SOT-23 | 2,390 | ₹12.44 · 2,390 in stock | View |
