MICRONEDatasheet (PDF)

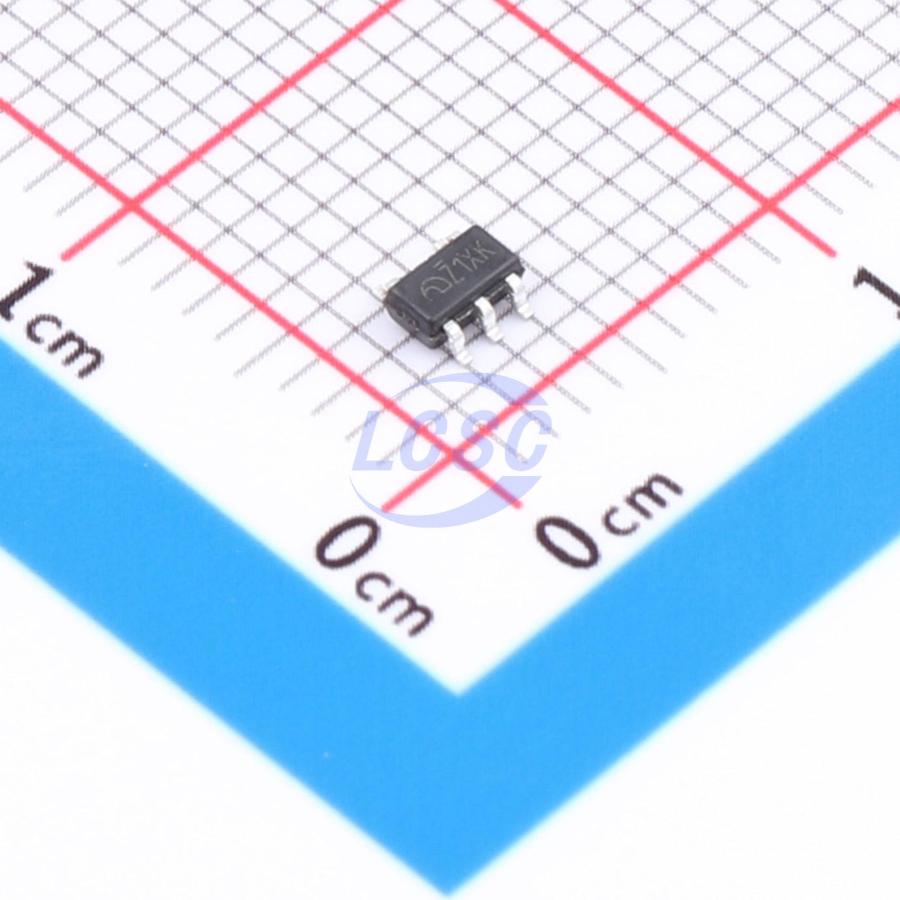

ME6330C33M5G
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6330C33M5G
- Store part #
- C5361612
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C5361612
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.90 | ₹39.00 |
| 100+ | ₹3.82 | ₹382.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 1,000+ | ₹3.70 | ₹3,700.00 |
10 × ₹3.90
₹39.00
excl. GST
₹46.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6330C33M5G
₹39.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.162 g
Overview
The ME6330 series are low-power, high-PSRR, low-dropout linear regulators fabricated using CMOS process technology. These regulators integrate a fixed voltage reference, thermal protection, current limiting circuitry, phase compensation circuitry, and a low on-resistance MOSFET, achieving low power consumption, high ripple rejection, and low dropout performance. The series is compatible with ceramic capacitors that are smaller in footprint than tantalum capacitors, and requires no 0.1μF bypass capacitor, further saving board space. The fast transient response handles load current fluctuations, making these devices particularly suitable for handheld and RF applications. The output can be shut down via the enable pin, with a typical shutdown current of 0μA.
Applications
- Mobile phones
- Cordless telephone equipment
- Cameras
- Bluetooth and other RF products
- Voltage references
Key features
- Maximum output current: 400mA (VIN = 4.3V, VOUT = 3.3V)
- Low dropout: 117mV @ IOUT = 100mA (ME6330C33)
- Operating voltage range: 1.8V ~ 5.5V
- Output voltage range: 1.5V ~ 5.0V
- Output accuracy: ±2%
- Low quiescent current: 4μA (typical)
- Shutdown current: 0μA (typical)
- High ripple rejection ratio: 67dB @ 1kHz (ME6330C33)
- Built-in thermal protection and current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6232C33M5G#C5210913MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 40,280 | ₹5.33 · 40,280 in stock | View |
 | ME6251C33M5G#C2925775MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 10 | ₹9.66 · 10 in stock | View |
 | ME6511C33M5G#C2837689MICRONE · SOT-23-5L | MICRONE | SOT-23-5L | 2,640 | ₹4.25 · 2,640 in stock | View |
 | ME6230C33M5G#C610252MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 2,710 | ₹8.23 · 2,710 in stock | View |
 | ME6217C33M5G#C427602MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 88,470 | ₹14.10 · 88,470 in stock | View |
