MICROCHIP

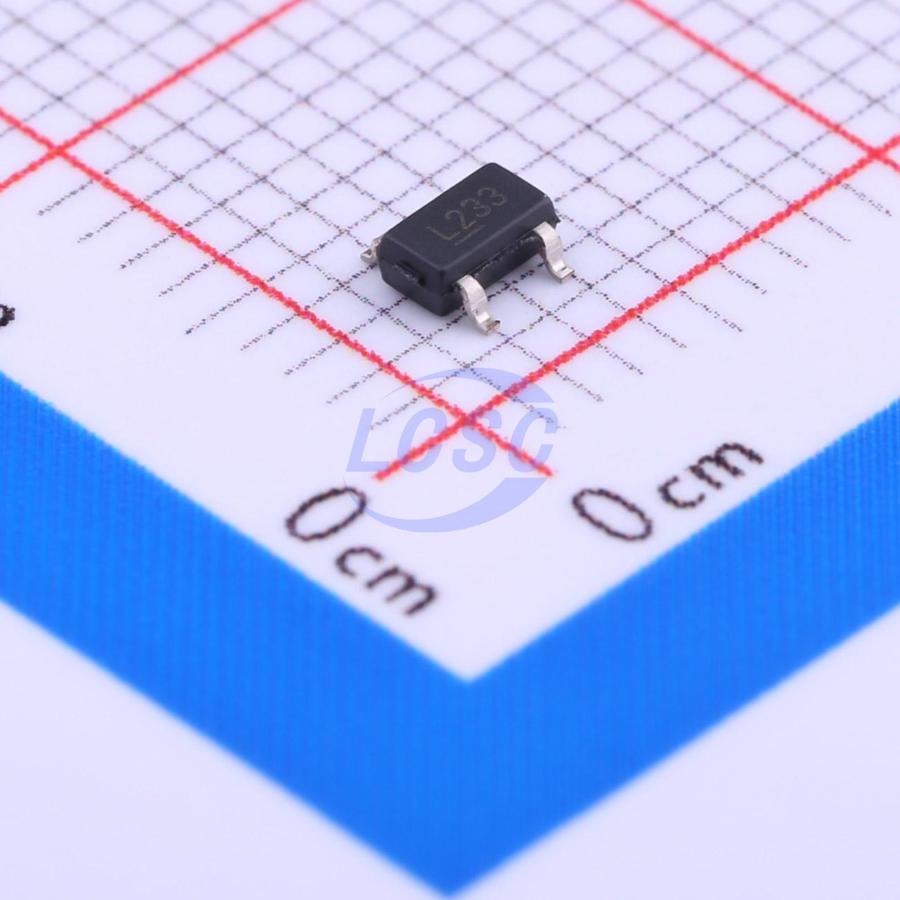

MIC5235-3.3YM5-TR

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

Ultra-Low Quiescent Current, 150mA μCap LDO Regulator

Manufacturer: MICROCHIP
Manufacturer part #: MIC5235-3.3YM5-TR
Store part #: C89886
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,352 in stock

#C89886

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
1+	₹119.22	₹119.22
10+	₹95.07	₹950.70
30+	₹83.10	₹2,493.00
100+	₹71.14	₹7,114.00
500+	₹62.87	₹31,435.00
1,000+	₹59.18	₹59,180.00

Quantity (min 1)

1 × ₹119.22

₹119.22

excl. GST

₹140.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MIC5235-3.3YM5-TR

₹119.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 18uA
Output Configuration: Positive
Operating Voltage: 24V
Output Current: 150mA
Features: Enable control;Thermal shutdown;Over Current Protection;Reverse polarity voltage protection;Reverse-polarity current protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The MIC5235 is a 150mA highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high voltage and low ground current makes the MIC5235 ideal for USB and portable electronics applications, using 1-cell, 2-cell or 3-cell Li-Ion battery inputs. A µCap LDO design, the MIC5235 is stable with either ceramic or tantalum output capacitor. It only requires a 2.2µF capacitor for stability. Features of the MIC5235 includes enable input, thermal shutdown, current limit, reverse battery protection, and reverse leakage protection. Available in fixed and adjustable output voltage versions, the MIC5235 is offered in the IttyBitty SOT-23-5 package with a junction temperature range of -40°C to +125°C.

Applications

USB power supply
Cellular phones
Keep-alive supply in notebook and portable computers
Logic supply for high-voltage batteries
Automotive electronics
Battery powered systems

Key features

Wide input voltage range: 2.3V to 24V
Ultra low ground current: 18µA
Low dropout voltage: 310mV at 150mA
High output accuracy: ±2.0% over temperature
µCap: stable with ceramic or tantalum capacitors
Excellent line and load regulation specifications
Zero shutdown current
Reverse battery protection
Reverse leakage protection
Thermal shutdown and current limit protection
IttyBitty SOT-23-5 package
Adjustable output from 1.24V - 20V
