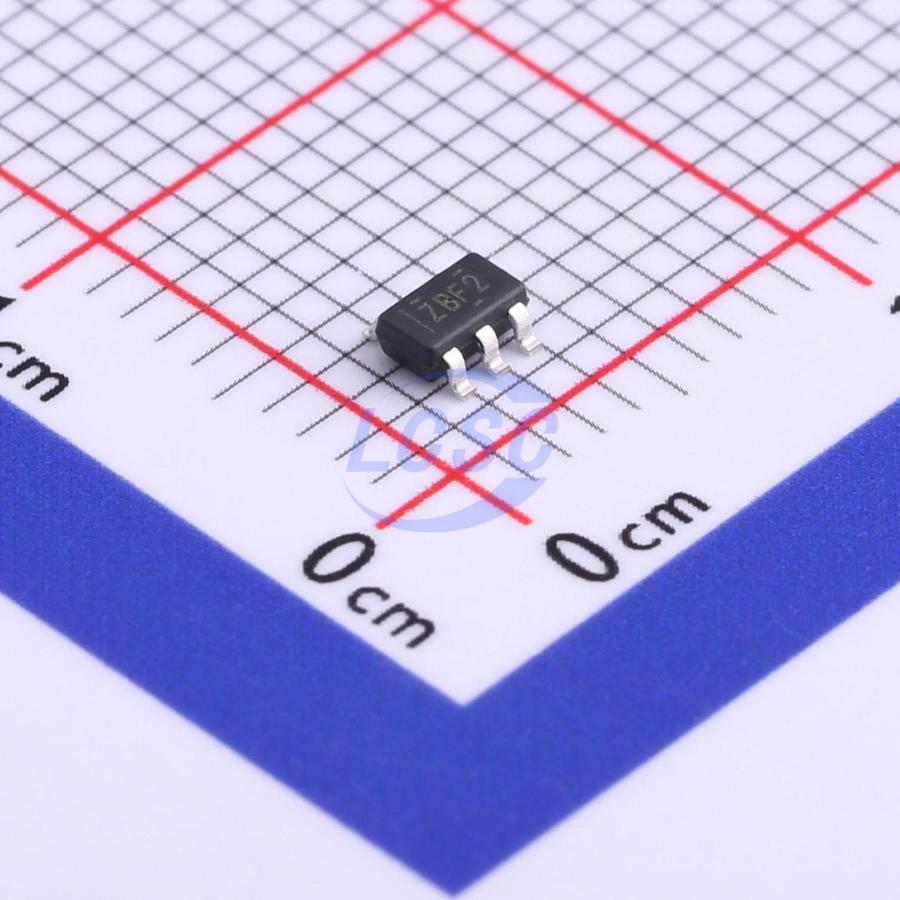

TPS7B6933QDBVRQ1

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

150mA, battery-operated (40V), high PSRR, low IQ, low-dropout linear regulator

Manufacturer: TI
Manufacturer part #: TPS7B6933QDBVRQ1
Store part #: C781801
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,851 in stock

#C781801

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹71.27	₹71.27
10+	₹57.44	₹574.40
30+	₹51.62	₹1,548.60
100+	₹44.28	₹4,428.00
500+	₹41.04	₹20,520.00
1,000+	₹38.88	₹38,880.00

Quantity (min 1)

1 × ₹71.27

₹71.27

excl. GST

₹84.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7B6933QDBVRQ1

₹71.27 for 1 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 15uA
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 150mA
Features: Built-in soft-start;Input under-voltage protection;Thermal shutdown;Short Circuit Protection;Over Current Protection;Enable control
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.036 g

Overview

The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V V₁ operations. With only 15-μA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications. The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a -40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.

Applications

Automotive
Infotainment Systems With Sleep Mode
Always-On Battery Applications
Door Modules
Remote Keyless-Entry Systems
Immobilizers

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B
Maximum Output Current: 150 mA
Low Quiescent Current (I_Q): 15 μA Typical at Light Loads, 25 μA Maximum Under Full Temperature
450 mV Typical Low Dropout Voltage at 100 mA Load Current
