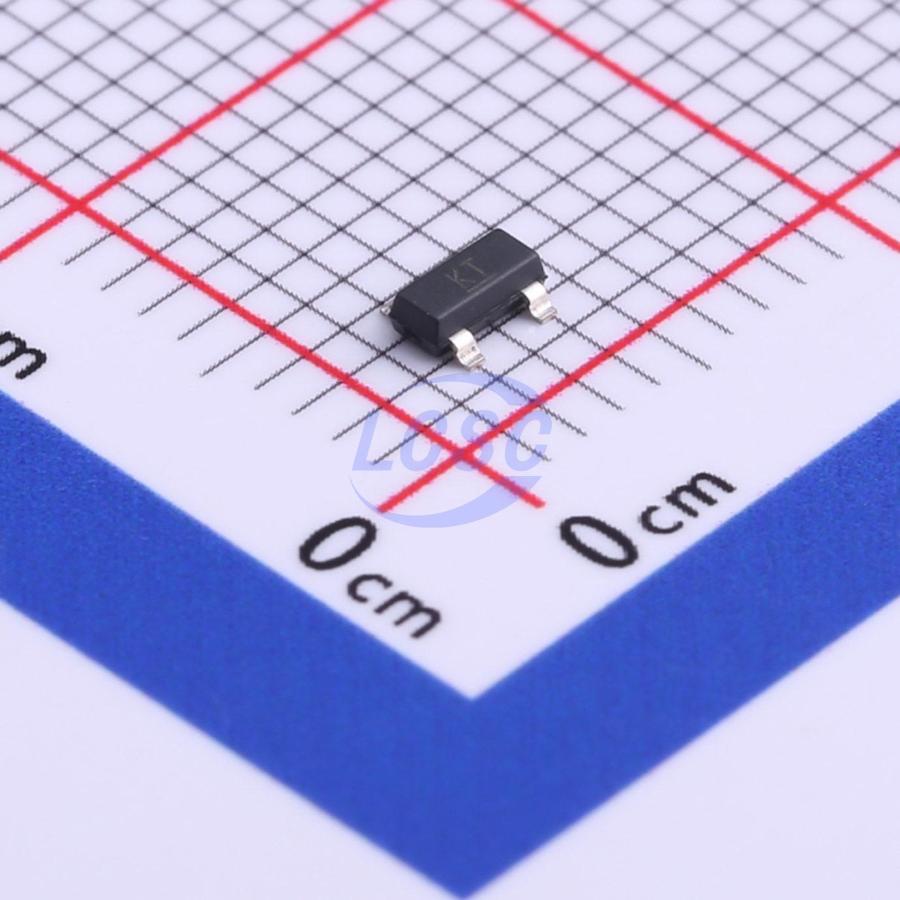

MIC811TUY-TR
140ms Manual reset input Active Low 3V~3.15V 1 SOT-143-4 Supervisors RoHS
Microprocessor Reset Circuits
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC811TUY-TR
- Store part #
- C515516
- Package / case
- SOT-143-4
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,731 in stock
#C515516
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.45 | ₹145.45 |
| 10+ | ₹119.80 | ₹1,198.00 |
| 30+ | ₹107.19 | ₹3,215.70 |
| 100+ | ₹94.58 | ₹9,458.00 |
| 500+ | ₹86.97 | ₹43,485.00 |
| 1,000+ | ₹83.06 | ₹83,060.00 |
1 × ₹145.45
₹145.45
excl. GST
₹171.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MIC811TUY-TR
₹145.45 for 1 + GST
Specifications
- Reset Timeout
- 140ms
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 5uA
- Voltage - Supply
- 3V~3.15V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
The MIC811 and MIC812 are inexpensive microprocessor supervisory circuits that monitor power supplies in microprocessor based systems. The function of this device is to assert a reset if either the power supply drops below a designated reset threshold level or /MR is forced low. Several different reset threshold levels are available to accommodate 3V, 3.3V or 5V powered systems. The MIC811 has an active low /RESET output, while the MIC812 offers an active high RESET output. The reset output is guaranteed to remain asserted for a minimum of 140ms after VCC has risen above the designed reset threshold level. Having a push - pull output stage, the MIC811/812 does not require a pull - up resistor at the output. The MIC811/812 comes in a 4 - pin SOT - 143 package.
Applications
- Portable equipment
- Intelligent instruments
- Critical microprocessor power monitoring
- Printers/computers
- Controllers
Key features
- Precision voltage monitor for 3V, 3.3V or 5V supplies
- /RESET remains valid with VCC as low as 1V
- 5μA typical supply current
- 140ms minimum reset pulse width available
- Manual reset input
- Available in 4 - pin SOT - 143 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX811TS4#C22358690TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 4,510 | ₹19.95 · 4,510 in stock | View |
 | CAT811TTBI-GT3-MS#C30197474MSKSEMI · SOT-143 | MSKSEMI | SOT-143 | 4,080 | ₹15.48 · 4,080 in stock | View |
 | MMAX811T#C42403095MSKSEMI · SOT-143 | MSKSEMI | SOT-143 | 2,490 | ₹12.45 · 2,490 in stock | View |
