MICROCHIP

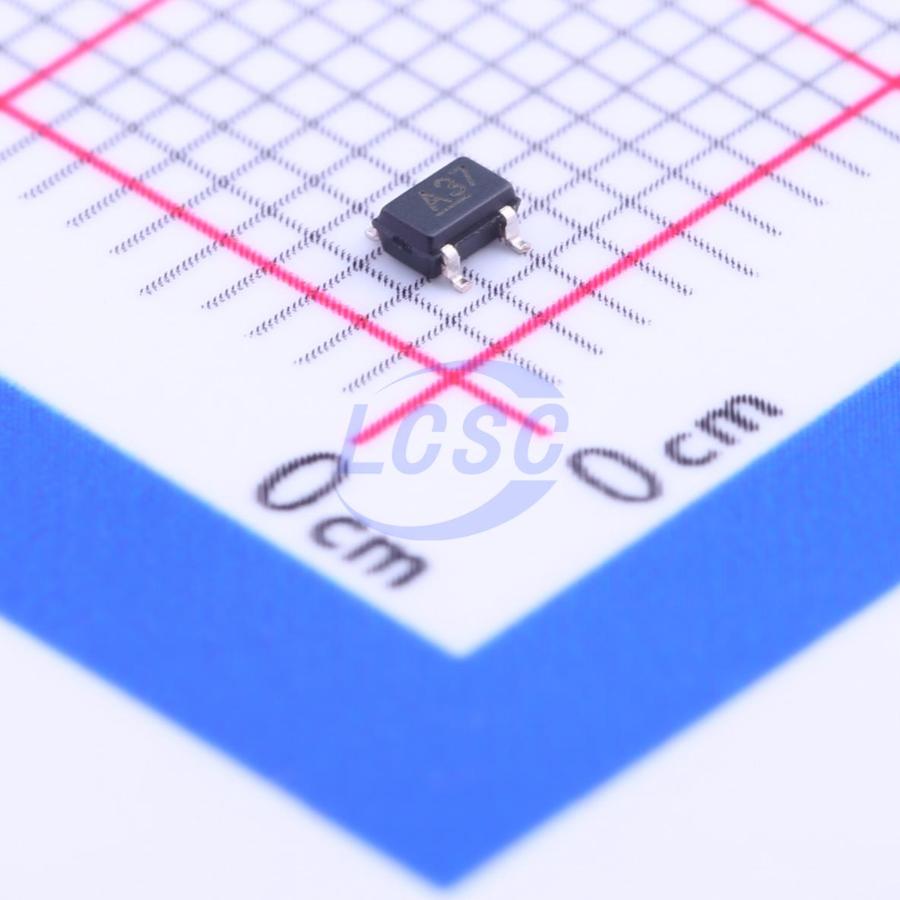

MIC920YC5-TR

63mA 1 430uV 3V/ns 85dB 260nA 550uA 80MHz SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

80MHz Low-Power SC-70 Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MIC920YC5-TR
Store part #: C128919
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,458 in stock

#C128919

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹143.61	₹143.61
10+	₹116.68	₹1,166.80
30+	₹103.21	₹3,096.30
100+	₹89.95	₹8,995.00
500+	₹81.91	₹40,955.00
1,000+	₹77.78	₹77,780.00

Quantity (min 1)

1 × ₹143.61

₹143.61

excl. GST

₹169.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MIC920YC5-TR

₹143.61 for 1 + GST

Specifications

Output Current: 63mA
Number of Channels: 1
Vos - Input Offset Voltage: 430uV
Slew Rate: 3V/ns
Input Offset Current(Ios): 40nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 260nA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 80MHz
Features: Built-in compensation
Input Voltage Noise Density: 11nV/√Hz@10kHz
Dual Supply: -9V~-2.5V;2.5V~9V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.035 g

Overview

The Mic920 is a high- speed operational amplifier with a gain- bandwidth product of 80MHz. The part is unity gain stable. It has a very low 550μA supply current, and features the SC- 70 package. Supply voltage range is from ±2.5V to ±9V, allowing the MIC920 to be used in low- voltage circuits or applications requiring large dynamic range. The MIC920 is stable driving any capacitative load and achieves excellent PSRR and CMRR, making it much easier to use than most conventional high- speed devices. Low supply voltage, low power consumption, and small packing make the MIC920 ideal for portable equipment. The ability to drive capacitative loads also makes it possible to drive long coaxial cables.
