ML5232-001TDZ07GL

ML5232 is an overvoltage protection IC for 14-cell series-connected lithium-ion rechargeable battery packs. If an overvoltage condition is detected on any individual cell, it outputs an "L" level at the N-channel open-drain alarm output and an "H" level at the CMOS alarm output.

Applications

• Power tools and garden tools
• Cordless vacuum cleaners
• E-bikes and pedal-assist electric bicycles
• Uninterruptible Power Supplies (UPS)
• Energy Storage Systems (ESS)

Key features

• High-accuracy overvoltage detection for 14-cell series battery packs
• Single-cell monitoring
• Supports fewer cells by shorting battery inputs
• Overvoltage detection threshold/accuracy: 4.35 V ±20 mV (max)
• Overvoltage release threshold/accuracy: 3.90 V ±30 mV (max)
• Integrated detection delay timer
• Overvoltage detection delay: 2 seconds
• Overvoltage release delay: 0.2 seconds
• Overvoltage detection and release delays reduced to 0.1 seconds in customer test mode
• Dual overvoltage alarm outputs
• OVN pin (N-channel open-drain) and OV pin (CMOS) both available for overvoltage alarm output
• External overvoltage alarm control
• OVN and OV alarms enabled via CTRL pin input
• Multiple overvoltage thresholds and detection delays redefinable; available as code products
• Low current consumption
• Normal operating state: 2.5 μA (typ), 8 μA (max)
• Overvoltage state: 4.5 μA (typ), 15 μA (max)
• Supply voltage: +7 V to +80 V
• Operating temperature: -40 °C to +105 °C

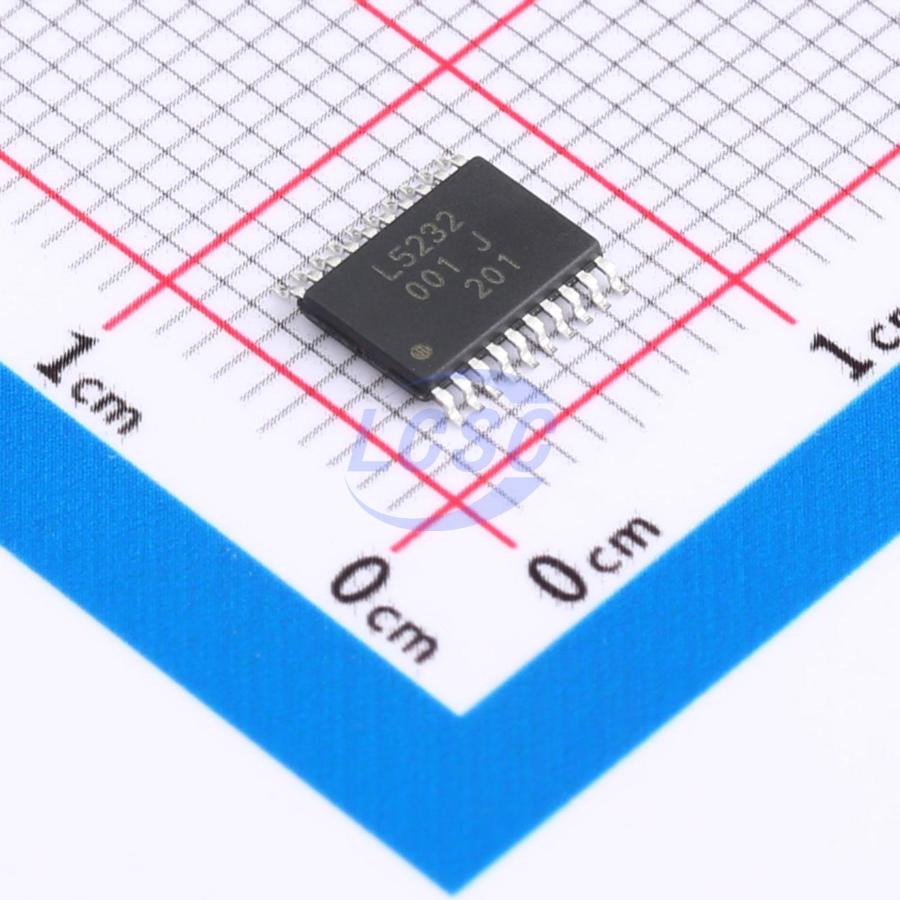

• Package: 20-pin TSSOP
