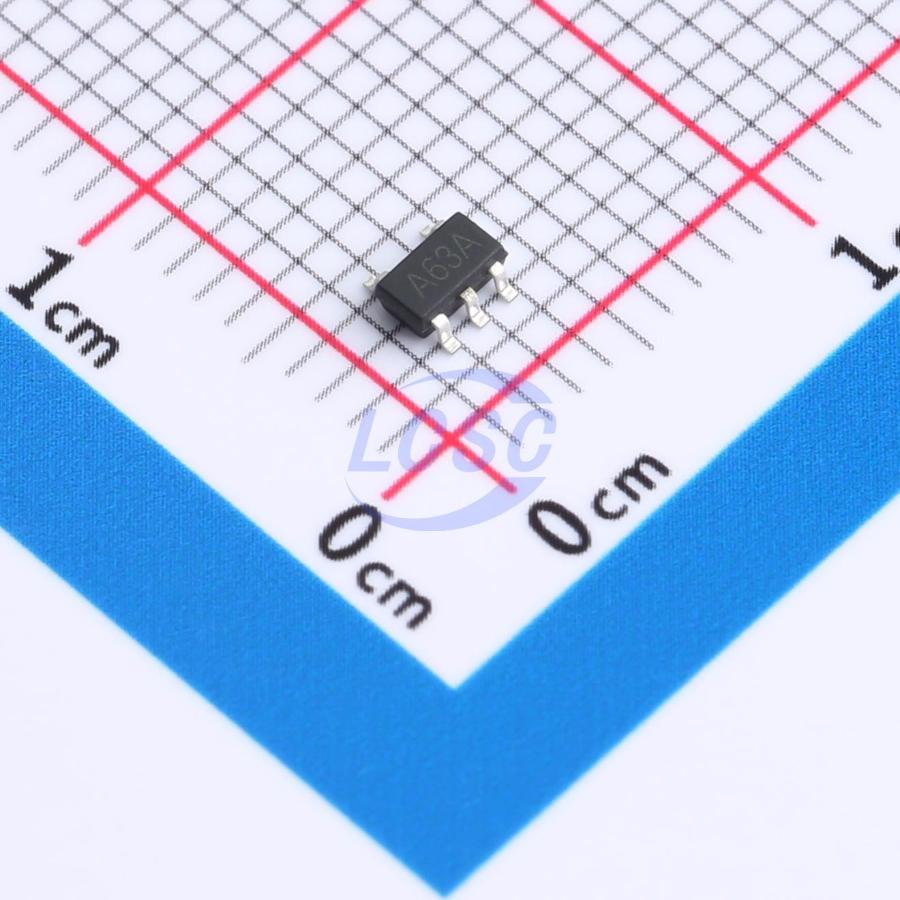

MSKSEMI

MLM321MF

40mA 2mV 400V/ms 85dB 45nA 1MHz 430uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Low-power operational amplifier with wide power supply range

Manufacturer: MSKSEMI
Manufacturer part #: MLM321MF
Store part #: C42403140
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,180 in stock

#C42403140

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹4.88	₹97.60
200+	₹3.84	₹768.00
600+	₹3.25	₹1,950.00
3,000+	₹2.65	₹7,950.00
9,000+	₹2.35	₹21,150.00
21,000+	₹2.18	₹45,780.00

Quantity (min 20, multiples of 20)

20 × ₹4.88

₹97.60

excl. GST

₹115.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MLM321MF

₹97.60 for 20 + GST

Specifications

Output Current: 40mA
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: -25℃~+85℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 45nA
Gain Bandwidth Product: 1MHz
Quiescent Current: 430uA
Input Voltage Noise Density: 40nV/√Hz@1kHz
Single Supply: 3V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.043 g

Overview

The MLM321MF brings performance and economy to low power systems. With a high unity gain frequency and a guaranteed 0.4V/μs slew rate, the quiescent current is only 430μA amplifier (5V). The input common mode range includes ground and therefore the device is able to operate in single supply applications as well as in dual supply applications. It is also capable of comfortably driving large capacitive loads. The MLM321MF is available in the SOT23 - 5 package. Overall the MLM321MF is a low power, wide supply range performance op amp that can be designed into a wide range of applications at an economical price without sacrificing valuable board space.
