onsemiDatasheet (PDF)

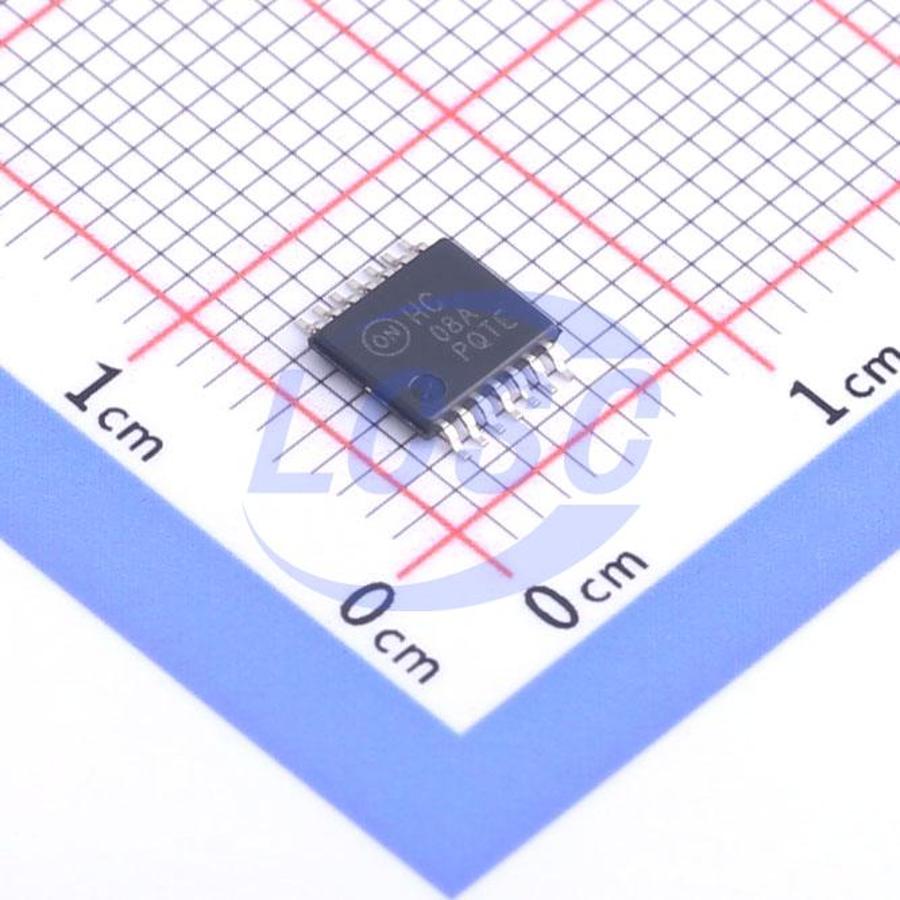

MM74HC08MTCX
2uA 2V~6V 13ns@6V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- MM74HC08MTCX
- Store part #
- C555495
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,100 in stock
#C555495
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.57 | ₹97.57 |
| 10+ | ₹80.84 | ₹808.40 |
| 30+ | ₹72.37 | ₹2,171.10 |
| 100+ | ₹64.11 | ₹6,411.00 |
| 500+ | ₹43.90 | ₹21,950.00 |
| 1,000+ | ₹41.52 | ₹41,520.00 |
1 × ₹97.57
₹97.57
excl. GST
₹115.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MM74HC08MTCX
₹97.57 for 1 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Logic Family
- 74HC Series
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;3.84V;5.2V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 13ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The MM74HC08 AND gates utilize advanced silicongate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. All packages are lead free per JEDEC: J-STD-020B standard.
Key features
- Typical propagation delay: 7ns (tPHL), 12ns (tPLH)
- Fanout of 10 LS-TTL loads
- Quiescent power consumption: 2µA maximum at room temperature
- Low input current: 1µA maximum
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MM74HC08MTC#C897659onsemi · TSSOP-14 | onsemi | TSSOP-14 | 81 | ₹92.93 · 81 in stock | View | |
 | 74HC08DMT/TR#C19193442HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 525 | ₹13.16 · 525 in stock | View |
 | 74HC08PW-Q100,118#C546516Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 3,465 | ₹39.85 · 3,465 in stock | View |
 | SN74HC08IPWRQ1#C2864607TI · TSSOP-14 | TI | TSSOP-14 | 95 | ₹61.57 · 95 in stock | View |
 | SN74HC08PWR#C7642TI · TSSOP-14 | TI | TSSOP-14 | 11,660 | ₹53.85 · 11,660 in stock | View |
