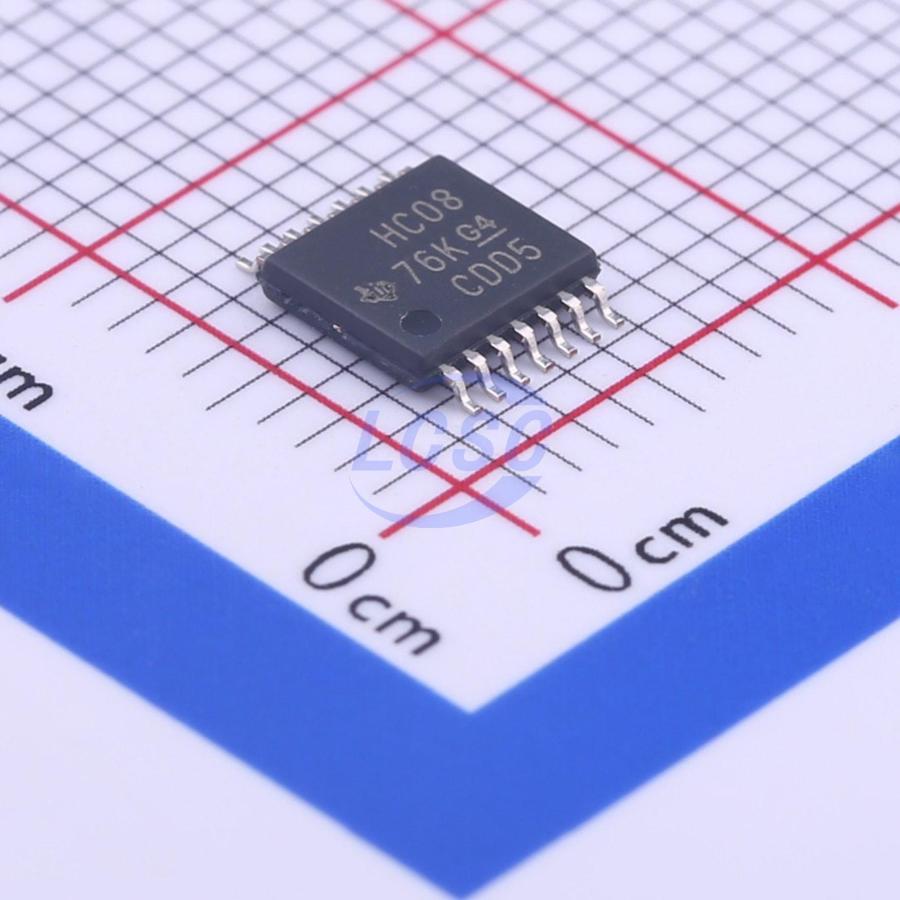

SN74HC08PWR
2uA 2.1V~6V 17ns@6V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple 2-Input Positive-AND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74HC08PWR
- Store part #
- C7642
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,660 in stock
#C7642
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.85 | ₹269.25 |
| 50+ | ₹42.69 | ₹2,134.50 |
| 150+ | ₹37.90 | ₹5,685.00 |
| 500+ | ₹31.95 | ₹15,975.00 |
| 2,000+ | ₹25.48 | ₹50,960.00 |
| 4,000+ | ₹23.89 | ₹95,560.00 |
5 × ₹53.85
₹269.25
excl. GST
₹317.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC08PWR
₹269.25 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V~1.998V;4.4V~4.499V;5.9V~5.999V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2.1V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 2mV~100mV;1mV~100mV
- Propagation Delay
- 17ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The SNx4HC08 devices contain four independent 2- input AND gates. They perform the Boolean function Y = A • B or Y = A + B in positive logic.
Applications
- Servers
- LED Displays
- Network Switches
- I/O Expanders
- Base Station Processor Boards
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive up to 10 LSTTL Loads
- Low Power Consumption: Maximum ICC 20 μA
- Typical tpd = 8 ns at 6 V
- ±4 - mA Output Drive at 5 V
- Low Input Current of 1 μA (Maximum)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC08IPWRQ1#C2864607TI · TSSOP-14 | TI | TSSOP-14 | 95 | ₹61.57 · 95 in stock | View |
 | 74HC08PW-Q100,118#C546516Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 3,465 | ₹39.85 · 3,465 in stock | View |
 | MM74HC08MTCX#C555495onsemi · TSSOP-14 | onsemi | TSSOP-14 | 5,100 | ₹97.57 · 5,100 in stock | View |
 | AiP74HC08TA14.TR#C5162249Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | 910 | ₹20.82 · 910 in stock | View |
| SN74HC08QPWRQ1#C2861983TI · TSSOP-14 | TI | TSSOP-14 | 59 | ₹50.99 · 59 in stock | View | |
