Hangzhou Ruimeng TechDatasheet (PDF)

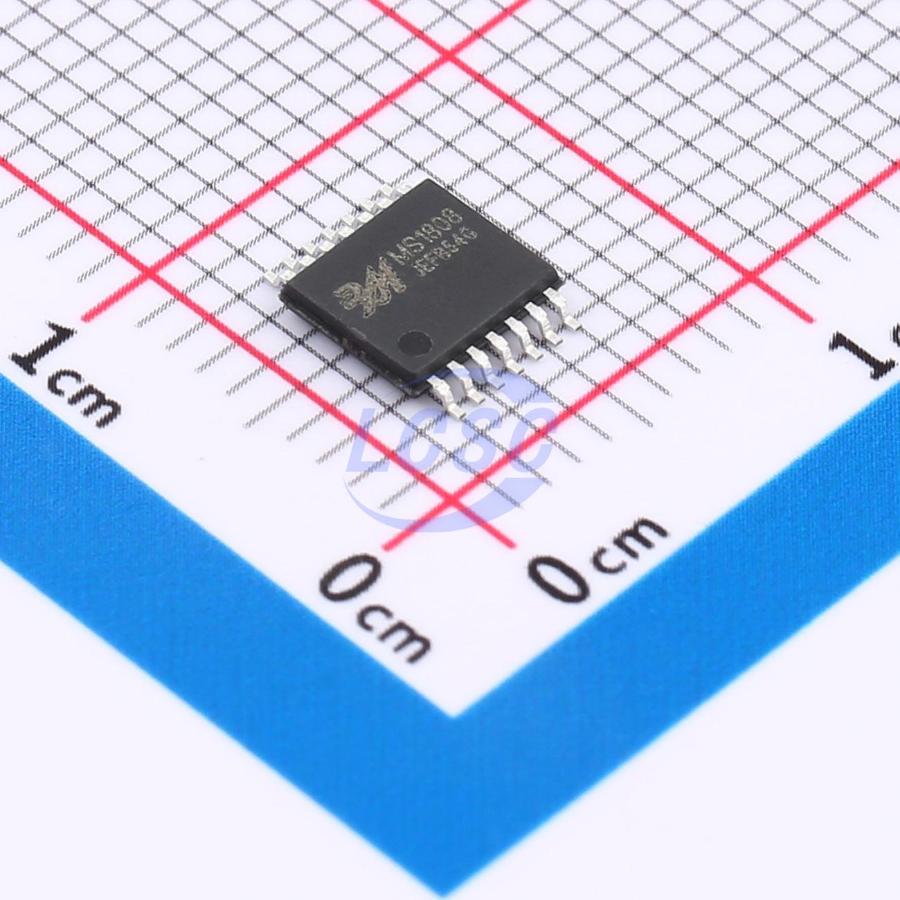

MS1808
24 Bit Analog to Digital Converter 2 Input TSSOP-14
TSSOP-14ROHS CompliantActive
96kHz 24-bit ΔΣ ADC
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS1808
- Store part #
- C1509040
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,695 in stock
#C1509040
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.03 | ₹58.03 |
| 10+ | ₹51.07 | ₹510.70 |
| 30+ | ₹47.81 | ₹1,434.30 |
| 100+ | ₹44.33 | ₹4,433.00 |
| 500+ | ₹42.38 | ₹21,190.00 |
| 1,000+ | ₹41.29 | ₹41,290.00 |
1 × ₹58.03
₹58.03
excl. GST
₹68.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS1808
₹58.03 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Interface
- I2S
- Voltage - Supply
- 4.5V~5.5V
- Number of Channels
- 2
- Voltage Reference
- Built-in
- Clock/Oscillator
- External
- Clock Frequency
- 2.048MHz~36.864MHz
- Features
- Integrated modulator;Built-in digital filter
- Resolution(Bits)
- 8kHz;24
- S/N Ratio
- 95dB
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
The MS1808 is a stereo A/D converter with a sampling rate of 8kHz to 96kHz, designed for professional audio systems targeting consumer applications. The MS1808 achieves its high-precision characteristics through the use of enhanced dual-bit ΔΣ technology. The MS1808 features single-ended analog inputs, eliminating the need for external components. Two audio interface types (MSB-justified, I²S) are supported, making it suitable for systems such as DTV, DVR, and AV receivers.
Applications
- DVD recorder
- Digital TV
- CD recorder
Key features
- Linear phase anti-aliasing digital filter
- Single-ended input with digital high-pass filter for offset voltage cancellation
- SINAD: 85dB
- Dynamic range: 95dB
- SNR: 95dB
- Sampling rate: 8kHz to 96kHz
- Master clock: 256fs/384fs/512fs/768fs (8kHz~48kHz); 256fs/384fs (48kHz~96kHz)
- Master/slave mode
- Audio interface: 24-bit MSB-justified/I²S
- Supply voltage: 4.5~5.5V analog, 2.7~5.5V digital
- Temperature range: -20~85°C
- TSSOP14, QFN16 packages
