Hangzhou Ruimeng TechDatasheet (PDF)

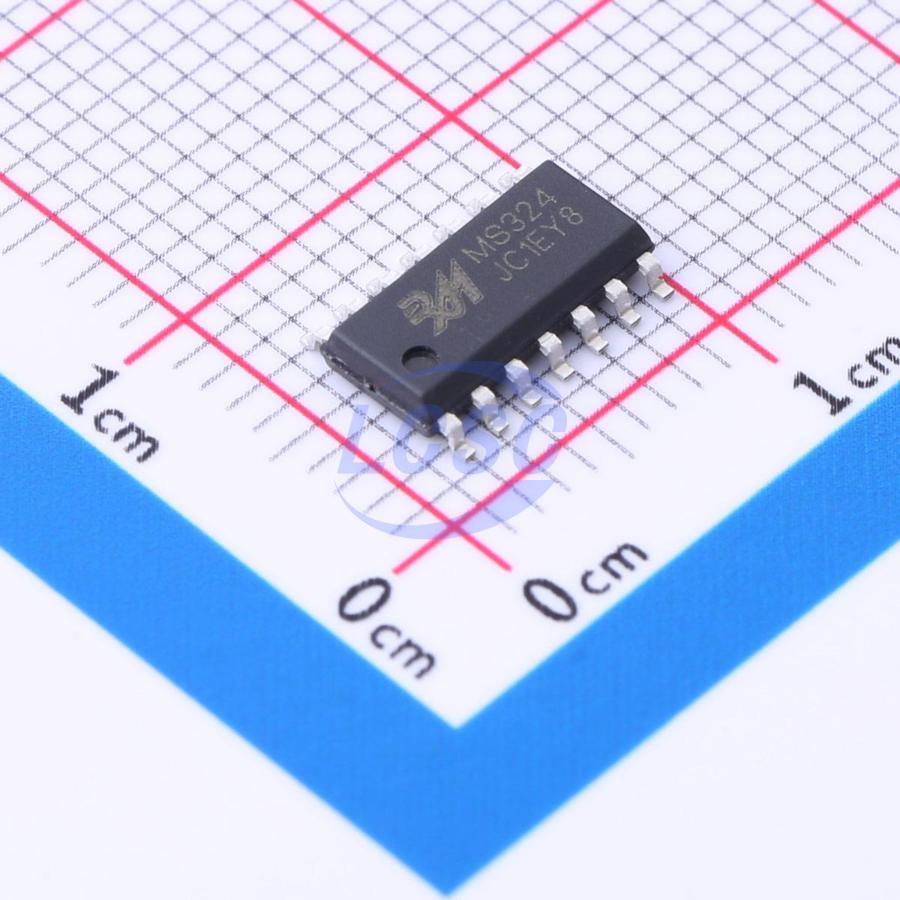

MS324
Standard (General Purpose) Amplifier 4 Circuit SOP-14
SOP-14ROHS CompliantActive
Low-power operational amplifier
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS324
- Store part #
- C1508992
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C1508992
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.21 | ₹106.05 |
| 50+ | ₹16.65 | ₹832.50 |
| 150+ | ₹14.70 | ₹2,205.00 |
| 500+ | ₹12.26 | ₹6,130.00 |
| 2,500+ | ₹11.19 | ₹27,975.00 |
| 5,000+ | ₹10.53 | ₹52,650.00 |
5 × ₹21.21
₹106.05
excl. GST
₹125.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MS324
₹106.05 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 30nA
- Input Offset Voltage Drift(Vos TC)
- 6uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 430uA
- Input Voltage Noise Density
- 60nV/√Hz@1kHz
- Single Supply
- 2.5V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
MS321/358/324 are single, dual, and quad operational amplifiers, respectively. They feature high unity-gain bandwidth, with a slew rate of up to 0.4V/μs under specific conditions, and a quiescent current (at 5V) of only 430μA per amplifier. The input common-mode range extends to ground, and the devices can operate from either single or dual supplies. They can also drive large capacitive loads with ease. MS321/358/324 are available in SOT23-5, SOP8, SOP14/TSSOP14, and QFN16 packages, respectively. Overall, the MS321/358/324 are low-power op-amps with a wide supply voltage range, and their cost-effective pricing makes them suitable for a broad range of applications.
Applications
- Chargers
- Power supplies
- Industrial: control tools
- Desktop computers
- Communications
Key features
- (VCC = 5V, TA = 25°C, unless otherwise specified for typical values)
- Gain bandwidth product 1MHz
- Low supply current 430uA
- Low input bias current 30nA
- Supply voltage range 2.5V to 36V
- Stable under large capacitive loads
