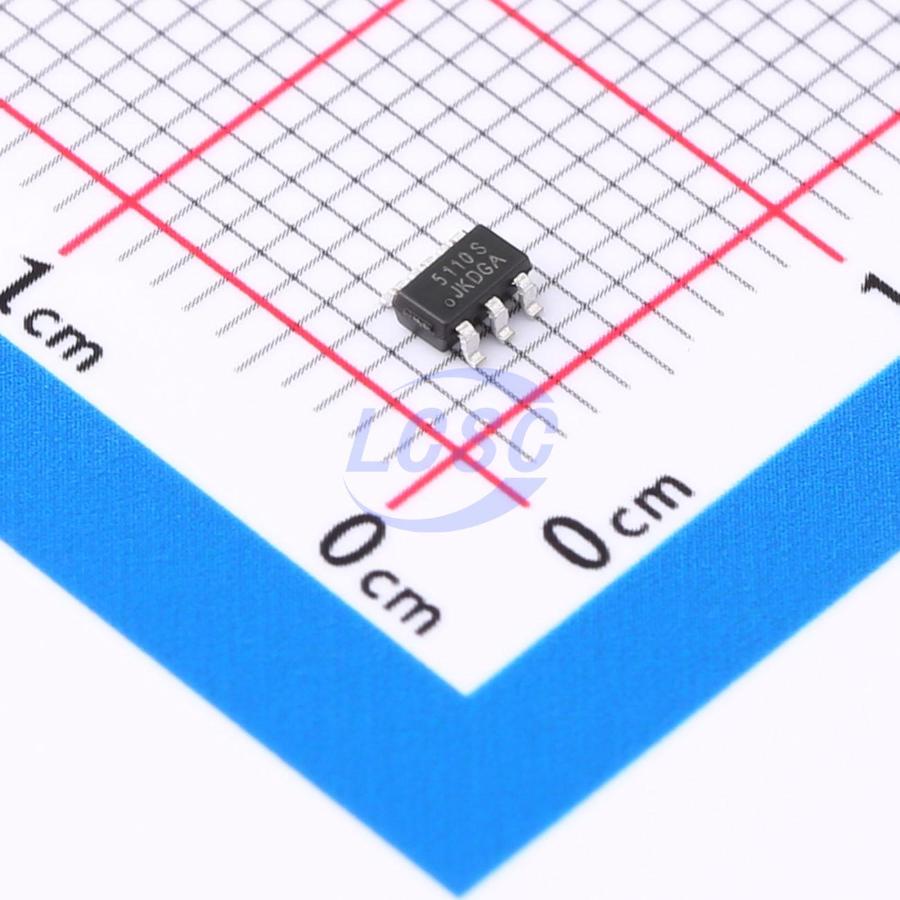

MS5110S-A0
16 Bit Analog to Digital Converter Sigma-Delta SOT-23-6
SOT-23-6ROHS CompliantActive
16-bit built-in reference analog-to-digital converter
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS5110S-A0
- Store part #
- C39833142
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,040 in stock
#C39833142
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.68 | ₹167.68 |
| 10+ | ₹140.32 | ₹1,403.20 |
| 30+ | ₹125.33 | ₹3,759.90 |
| 100+ | ₹108.38 | ₹10,838.00 |
| 500+ | ₹98.62 | ₹49,310.00 |
| 1,000+ | ₹95.14 | ₹95,140.00 |
1 × ₹167.68
₹167.68
excl. GST
₹197.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS5110S-A0
₹167.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C
- Quiescent Current (Iq)
- 280uA
- Voltage - Supply
- 2.7V~5.5V
- Number of Channels
- 1
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 275kHz
- Features
- Bipolar input;Integrated modulator;Built-in digital filter;Power-on reset
- Resolution(Bits)
- 16;240Hz
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
MS5110S is a high-precision 16-bit ADC. It integrates an internal 2.048V reference, with a differential input range of ±2.048V, and features an I²C-compatible interface. The supply voltage range is 2.7V to 5.5V. The MS5110S supports conversion rates of 15, 30, 60, or 240SPS, and integrates a programmable gain amplifier (PGA) with a maximum gain of 8x. In single-shot conversion mode, the MS5110S automatically enters a power-saving state after conversion completes, reducing power consumption. The MS5110S is suitable for high-precision measurement applications where space and power consumption are critical considerations.
Applications
- Handheld instruments
- Industrial control
- Smart transmitters
- Industrial automation
- Temperature measurement
Key features
- I²C interface
- On-chip reference @3.3V: 2.048V ±0.1%
- Temperature drift: 30ppm/℃
- Internal integrated PGA: 1x to 8x
- Internal integrated oscillator
- 16-bit no missing code accuracy
- INL: ±0.005% of FSR
- 8 available I²C addresses
- Programmable output rate: 15SPS to 240SPS
- Operating voltage range: 2.7V to 5.5V
- Low power consumption: 280μA@3.3V
