Hangzhou Ruimeng TechDatasheet (PDF)

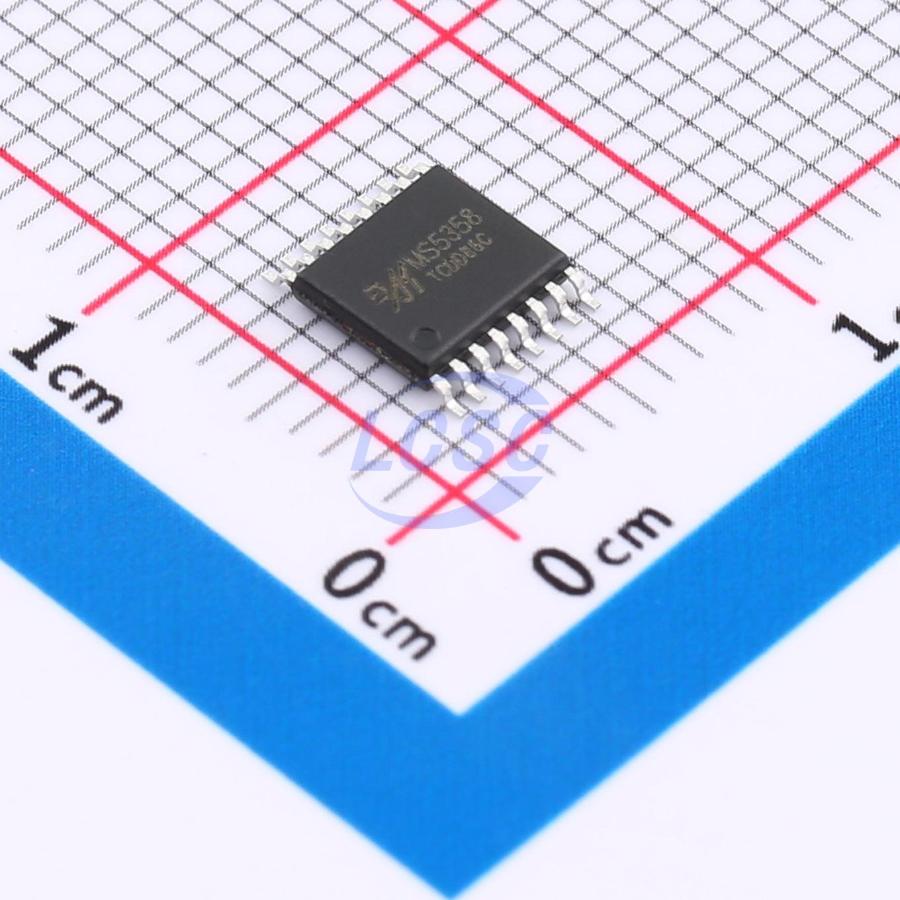

MS5358
24 Bit Analog to Digital Converter 2 Input TSSOP-16
TSSOP-16ROHS CompliantActive
96kHz 24-bit AE ADC
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS5358
- Store part #
- C1509041
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,533 in stock
#C1509041
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.69 | ₹119.69 |
| 10+ | ₹96.27 | ₹962.70 |
| 30+ | ₹84.57 | ₹2,537.10 |
| 100+ | ₹73.07 | ₹7,307.00 |
| 500+ | ₹66.14 | ₹33,070.00 |
| 1,000+ | ₹62.45 | ₹62,450.00 |
1 × ₹119.69
₹119.69
excl. GST
₹141.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS5358
₹119.69 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Interface
- I2S
- Quiescent Current (Iq)
- 10uA
- Voltage - Supply
- 4.5V~5.5V
- Number of Channels
- 2
- Clock/Oscillator
- External
- Clock Frequency
- 24.576MHz;2.048MHz~36.864MHz
- Features
- Built-in digital filter;Power-on reset;Soft reset
- Resolution(Bits)
- 8kHz;24
- S/N Ratio
- 102dB
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
MS5358 is a stereo A/D converter with a sampling rate of 8kHz~96kHz, suitable for consumer-oriented professional audio systems. MS5358 achieves its high-precision characteristics by using enhanced dual-bit ΔΣ technology. The MS5358 features single-ended analog inputs, requiring no external components. The audio interface supports two modes (MSB-justified, I²S), making it suitable for systems such as DTV, DVR, and AV receivers.
Applications
- Audio interface for DTV, DVR, and AV receivers
Key features
- Linear phase anti-aliasing digital filter, single-ended input
- Digital high-pass filter with offset voltage cancellation
- SINAD: 92dB
- Dynamic range: 102dB
- SNR: 102dB
- Sampling rate: 8kHz to 96kHz
- Master clock: 256fs/384fs/512fs/768fs (8kHz~48kHz), 256fs/384fs (48kHz~96kHz)
- Input level: CMOS
- Master/Slave mode
- Audio interface: 24-bit MSB-justified/I²S
- Supply voltage: 4.5~5.5V analog, 2.7~3.6V digital
- Temperature range: -20~85°C
- TSSOP16 package
