Hangzhou Ruimeng TechDatasheet (PDF)

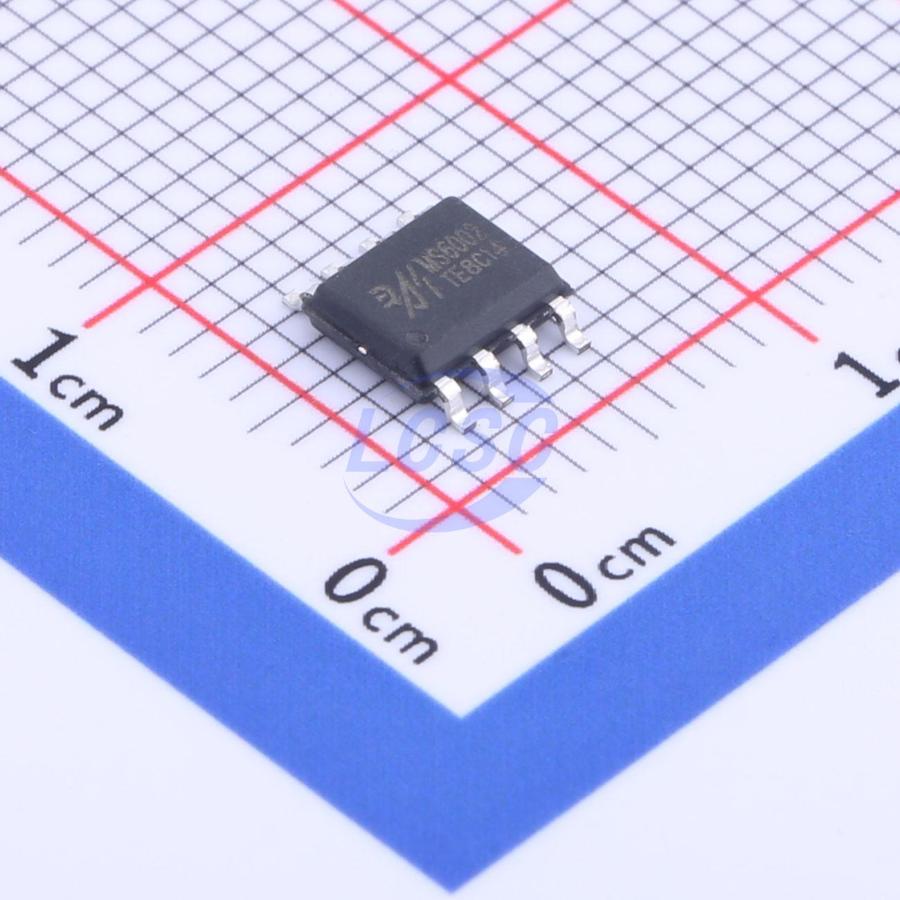

MS6002
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8
SOP-8ROHS CompliantActive
Low-power, low-noise CMOS rail-to-rail input/output operational amplifier
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS6002
- Store part #
- C1509009
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,765 in stock
#C1509009
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.96 | ₹169.80 |
| 50+ | ₹26.74 | ₹1,337.00 |
| 150+ | ₹23.64 | ₹3,546.00 |
| 500+ | ₹19.78 | ₹9,890.00 |
| 2,500+ | ₹16.82 | ₹42,050.00 |
| 5,000+ | ₹15.78 | ₹78,900.00 |
5 × ₹33.96
₹169.80
excl. GST
₹200.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MS6002
₹169.80 for 5 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+120℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 24nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The MS6001/2/4 op-amps feature ultra-low power consumption, rail-to-rail input/output, low input voltage noise, and low current noise. They operate from single or dual supplies ranging from 1.8V to 5V. The low power and low noise characteristics make the MS6001/2/4 suitable for portable devices. The rail-to-rail input/output swing can be utilized by designers for buffering CMOS, ADCs, DACs, ASICs, or other systems requiring low power consumption and wide output swing.
Applications
- Battery-powered instrumentation
- Multipole filters
- ADC front-end driver
- DAC driver/level shifting
- Low-power ASIC I/O amplifier
Key features
- Low offset voltage: 3mV max
- Low input bias current: 1pA max; single supply: 1.8V to 5V
- Low noise: 24nV/√Hz
- Micropower (1.8V): 45uA (single amplifier)
- No phase reversal, unity-gain stable
