Hangzhou Ruimeng TechDatasheet (PDF)

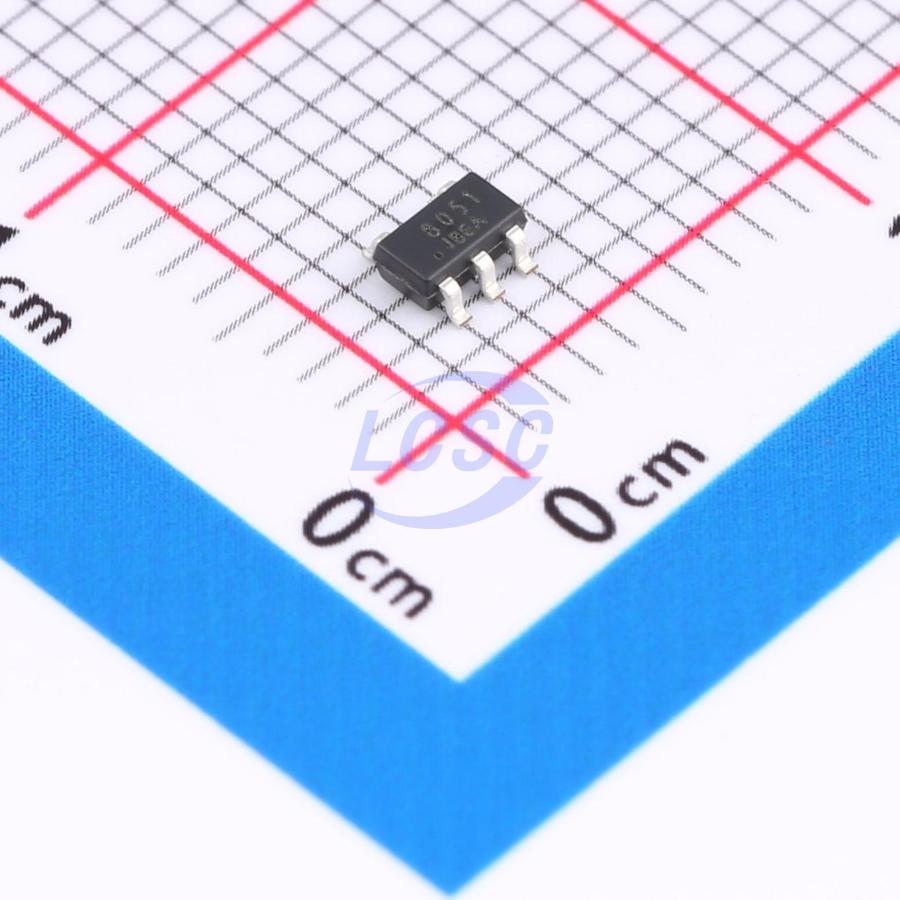

MS8051
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Output SOT-23-5
SOT-23-5ROHS CompliantActive
250MHz rail-to-rail output CMOS operational amplifier
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS8051
- Store part #
- C231925
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C231925
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.99 | ₹184.95 |
| 50+ | ₹29.11 | ₹1,455.50 |
| 150+ | ₹25.73 | ₹3,859.50 |
| 500+ | ₹21.51 | ₹10,755.00 |
| 3,000+ | ₹18.19 | ₹54,570.00 |
| 6,000+ | ₹17.07 | ₹1,02,420.00 |
5 × ₹36.99
₹184.95
excl. GST
₹218.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS8051
₹184.95 for 5 + GST
Specifications
- Output Current
- 130mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 9.8mV
- Slew Rate
- 130V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 6pA
- Input Offset Voltage Drift(Vos TC)
- 4.4uV/℃
- Quiescent Current
- 4.4mA
- Gain Bandwidth Product
- 90MHz
- Input Voltage Noise Density
- 8.1nV/√Hz@1MHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The MS805x series are rail-to-rail output voltage-feedback op-amps, featuring ease of use and low cost. They offer greater bandwidth and slew rate advantages over typical current-feedback amplifiers, while providing a wide input common-mode voltage range and large output voltage swing, enabling the series to operate from single supplies as low as 2.5V. Despite their low cost, the MS805x series delivers excellent overall performance, combining a large bandwidth of 250MHz (G = +1) with a 0.1dB bandwidth of 37MHz (G = +2), while consuming only 4.3mA per amplifier. The low distortion and fast settling of the MS805x series make it an ideal choice for A/D and D/A buffers. All specifications are guaranteed over an operating temperature range of -40°C to 125°C.
Applications
- Imaging
- Photodiode preamplifiers
- Professional video and camera equipment
- Handheld devices
- DVD/CD
- Base stations
- Active filters
- Analog-to-digital conversion
Key features
- Low-power rail-to-output 2mV offset voltage
- High-speed -3dB bandwidth (G = +1): 250MHz
- Slew rate: 130V/μs
- 0.1% settling time: 58ns
- Supply voltage range: 2.5V to 5.5V
- Input voltage range (VS = 5V): -0.2V to +3.8V
- Excellent video performance (RL = 150Ω, G = +2)
- 0.1dB gain flatness: 37MHz
- Differential gain error: 0.03%
- Differential phase error: 0.08°
- Low power, 4.3mA quiescent current per op amp
