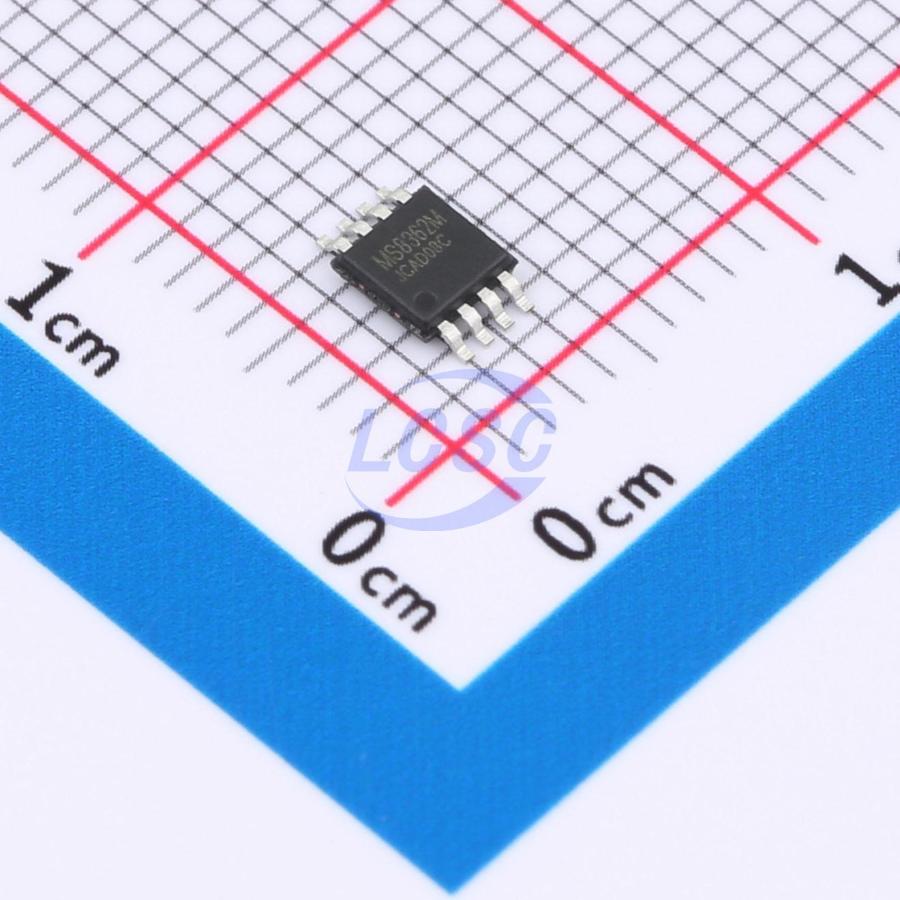

MS8362M
2 65uV 13.5V/us 95dB 0.2pA 2.8mA 16MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive
Precision, low-noise, CMOS, rail-to-rail input/output operational amplifier
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS8362M
- Store part #
- C1509002
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C1509002
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.13 | ₹154.13 |
| 10+ | ₹126.92 | ₹1,269.20 |
| 30+ | ₹111.96 | ₹3,358.80 |
| 100+ | ₹95.01 | ₹9,501.00 |
| 500+ | ₹87.44 | ₹43,720.00 |
| 1,000+ | ₹84.19 | ₹84,190.00 |
1 × ₹154.13
₹154.13
excl. GST
₹181.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS8362M
₹154.13 for 1 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 65uV
- Slew Rate
- 13.5V/us
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 0.2pA
- Input Offset Voltage Drift(Vos TC)
- 1.5uV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 16MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
MS8361 and MS8362 are single-channel and dual-channel rail-to-rail input/output single-supply op-amps. They feature low offset voltage, low input voltage and current noise, and wide signal bandwidth. The combination of low offset, low noise, low input bias current, and wide bandwidth makes the MS836X op-amps suitable for a wide range of applications. Their excellent performance enables use in filter, integrator, transimpedance amplifier, and high-impedance sensor applications, while audio and AC applications benefit from their wide bandwidth and low distortion. The MS836X operates over a temperature range of -40°C to 125°C.
Applications
- Photoelectric amplification
- Multi-stage filter
- Sensor
- Audio bar scanner
Key features
- Low offset voltage: 65μV typical, 300μV maximum
- Low input bias current: 1pA maximum
- Single supply: 2.7V to 5.5V
- Low noise: 9.5nV/√Hz
- Wide bandwidth: 16MHz
- Unity-gain stable
