Hangzhou Ruimeng TechDatasheet (PDF)
MS8605
80mA 1 65uV 7V/us 0.2pA 100dB 10MHz 1.5mA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive

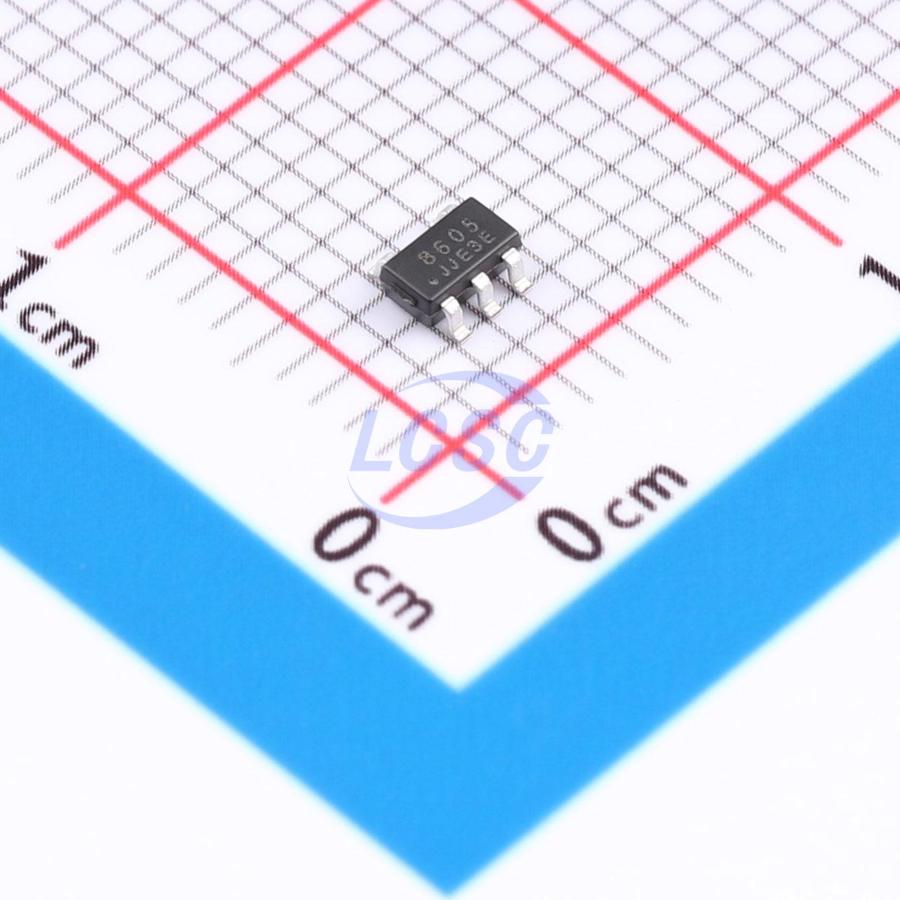

Precision, low-noise, CMOS, rail-to-rail input/output operational amplifier
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS8605
- Store part #
- C1508998
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,679 in stock
#C1508998
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.61 | ₹96.61 |
| 10+ | ₹77.11 | ₹771.10 |
| 30+ | ₹67.36 | ₹2,020.80 |
| 100+ | ₹57.61 | ₹5,761.00 |
| 500+ | ₹53.27 | ₹26,635.00 |
| 1,000+ | ₹50.20 | ₹50,200.00 |
1 × ₹96.61
₹96.61
excl. GST
₹114.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS8605
₹96.61 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 65uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.2pA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 1.5uV/℃
- Gain Bandwidth Product
- 10MHz
- Quiescent Current
- 1.5mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
MS8605 and MS8606 are single-channel and dual-channel rail-to-rail input/output single-supply op-amps. They feature low offset voltage, low input voltage and current noise, and wide signal bandwidth. The combination of low offset, low noise, low input bias current, and wide bandwidth makes the MS860X op-amps suitable for a wide range of applications. Their excellent performance enables use in filters, integrators, photoelectric amplifiers, and high-impedance sensors; audio and AC applications benefit from their wide bandwidth and low distortion characteristics. The MS860X operates over a temperature range of -40°C ~ 125°C.
Applications
- Photoelectric amplification
- Multi-stage filter
- Sensor
- Audio
- Barcode scanner
Key features
- Low offset voltage: 65μV typical, 300μV maximum
- Low input bias current
- Single supply: 2.7V ~ 5.5V
- Low noise: 8nV/√Hz
- High open-loop gain: 120dB
- Wide bandwidth: 10MHz
- Unity-gain stable
