MS8628

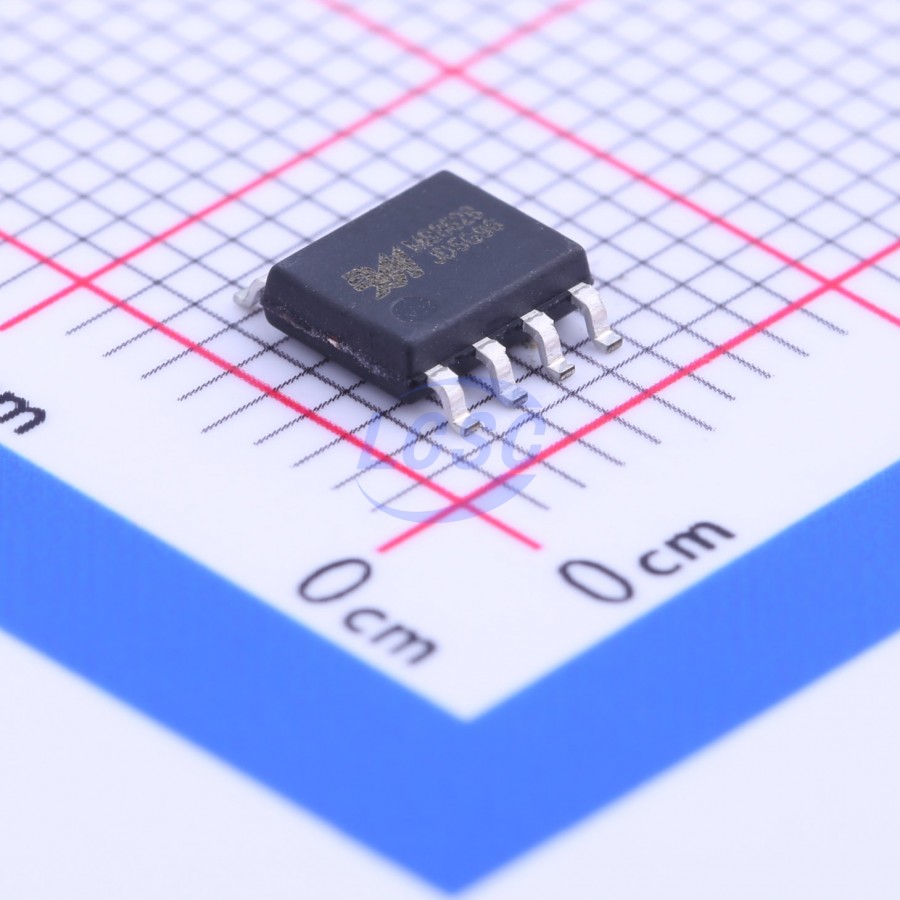

MS8628/MS8629/MS8630T are rail-to-rail output, wide bandwidth, low noise, auto-zero amplifiers featuring ultra-low offset, drift, and bias current characteristics. They operate from a 1.8V to 5V single supply (±0.9V to ±2.5V dual supply). MS8628/MS8629/MS8630T offer the performance advantages previously found only in costly auto-zero or chopper amplifiers, while significantly reducing the digital switching noise present in most chopper-stabilized amplifiers. The ultra-low offset voltage, offset voltage drift, and noise of the MS8629 result in near-zero drift over the operating temperature range, making it highly beneficial for position and pressure sensors, medical equipment, and strain gauge amplifier applications. Many systems can leverage the MS8629's rail-to-rail input and output swing capability to reduce input biasing complexity and maximize SNR. MS8628/MS8629/MS8630T are rated for the -40°C to 125°C extended industrial temperature range. The MS8628 is available in 5-pin SOT-23 and 8-pin narrow-body SOP plastic packages. The MS8629 is available in standard 8-pin narrow-body SOP and MSOP plastic packages. The MS8630T quad amplifier is available in a 14-pin TSSOP plastic package.

Applications

• Automotive sensors
• Pressure and position sensors
• Strain gauge amplifiers
• Medical instruments
• Thermocouple amplifiers
• Precision current sensing
• Photodiode amplifiers

Key features

• Ultra-low noise auto-zero amplifier
• Low offset voltage: 2μV (TYP)
• Input offset drift: 0.05μV/°C
• Rail-to-rail input/output swing
• Single-supply operating range: 1.8V to 5.5V
• Voltage gain: 126dB (TYP) (at 5V supply)
• Power supply rejection ratio: 123dB (TYP)
• Common-mode rejection ratio: 136dB (TYP)
• Ultra-low input bias current: 11pA
• Low quiescent current: 0.8mA per channel (TYP)
• Overload recovery time: 50us (at 5V supply)
• No external components required
• Automotive-qualified
