MSKSEMIDatasheet (PDF)

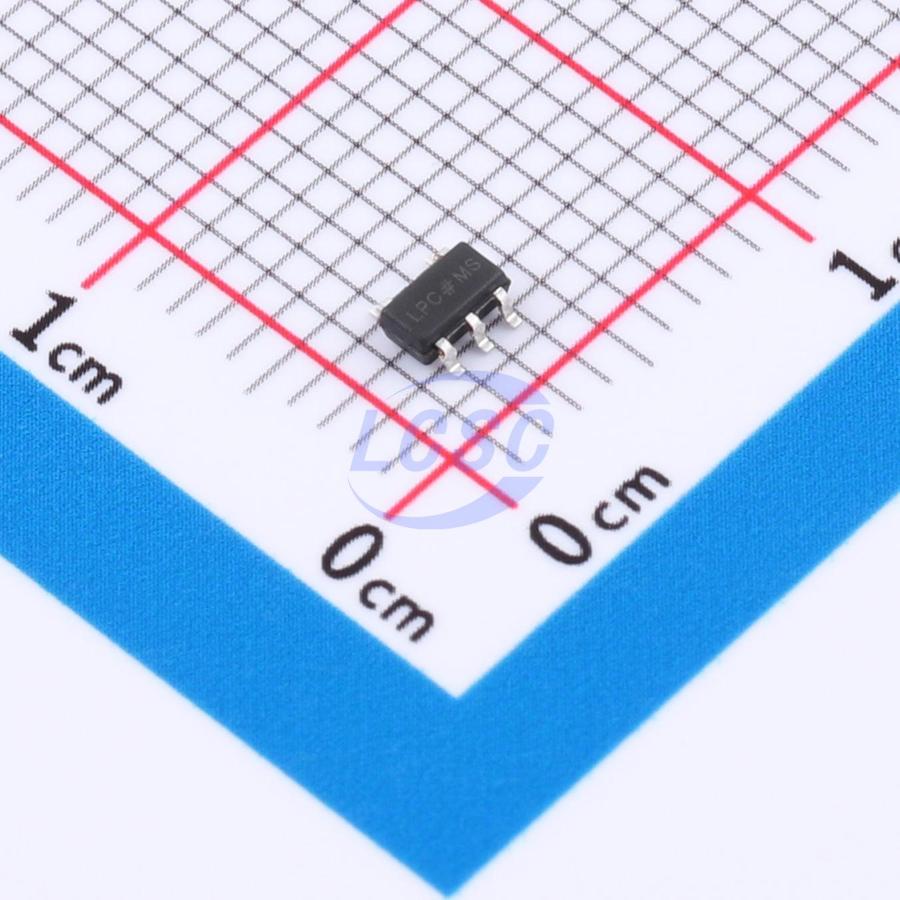

MSADP7118AUJZ-3.3
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 3.3V 300mA SOT-23-5
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSADP7118AUJZ-3.3
- Store part #
- C49375261
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,968 in stock
#C49375261
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.87 | ₹53.87 |
| 10+ | ₹48.01 | ₹480.10 |
| 30+ | ₹44.97 | ₹1,349.10 |
| 100+ | ₹42.15 | ₹4,215.00 |
| 500+ | ₹38.46 | ₹19,230.00 |
| 1,000+ | ₹37.59 | ₹37,590.00 |
1 × ₹53.87
₹53.87
excl. GST
₹63.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSADP7118AUJZ-3.3
₹53.87 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The MSADP7118AUJZ-x.x series is a family of low-dropout linear regulators featuring a wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With a quiescent current of only 1.5μA, these regulators are ideal for powering battery-operated always-on systems that require ultra-low quiescent current draw to maximize operating lifetime. The series maintains stability with ceramic output capacitors across a wide input voltage range of 2V to 24V and output load current range of 0mA to 300mA.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld PCs, and PDAs
- Wireless communication devices
- Audio/video equipment
- Automotive navigation systems
- Industrial control
- Weighing scales
- Instrumentation
- Home automation
Key features
- Ground current of only 1.5μA at no load
- Output accuracy ±2%
- Output current 300mA
- Wide input voltage range: 2V to 24V
- Dropout voltage: 0.35V at 100mA load, 5V output
- Fixed output voltages: 1.8V, 2.5V, 3.3V, 5V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- SOT-23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS70933DBVR-MS#C30197521MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 4,955 | ₹18.16 · 4,955 in stock | View |
 | TPS76333DBVR-MS#C30197527MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | On request | ₹22.90 · 0 in stock | View |
 | MIC5219-3.3YM5-MS#C30197485MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,820 | ₹26.50 · 2,820 in stock | View |
 | LP2985-33DBVR-MS#C30197522MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 860 | ₹16.63 · 860 in stock | View |
 | MSP7118AUJZ-3.3#C49375262MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,993 | ₹53.87 · 2,993 in stock | View |
