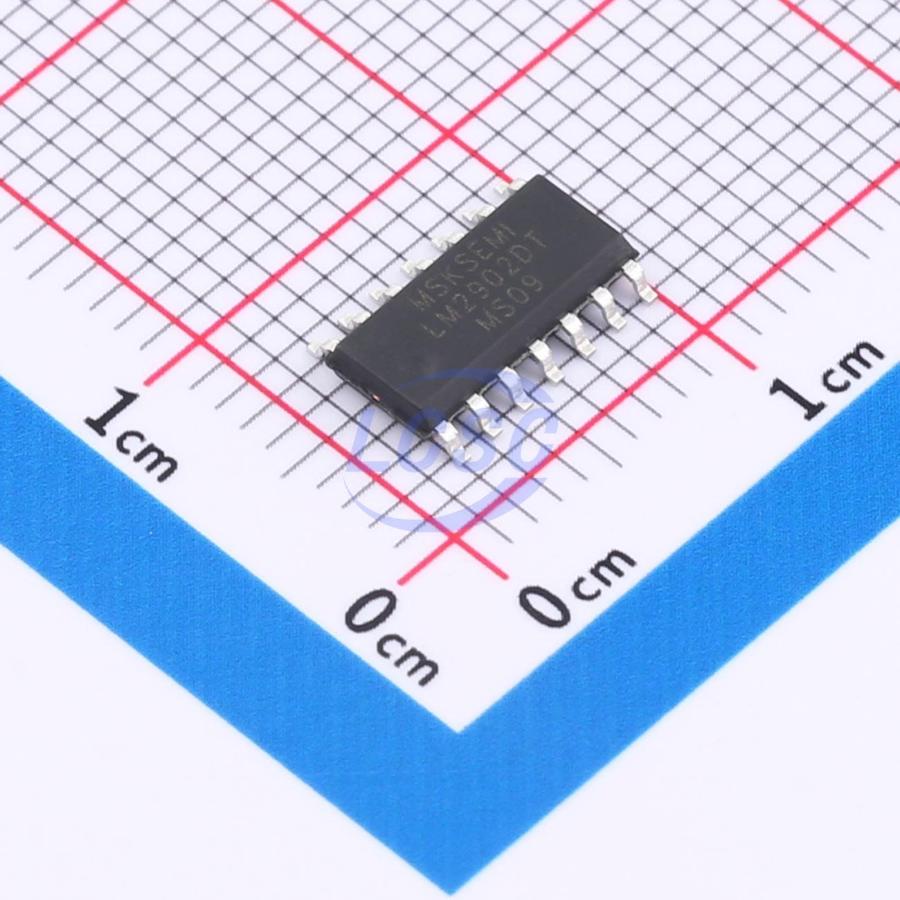

MSKSEMI
MSLM2902DT
1mA 40mA 4 2mV 70dB 20nA SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSLM2902DT
- Store part #
- C49208517
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C49208517
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.96 | ₹99.60 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 1,000+ | ₹6.06 | ₹6,060.00 |
| 4,000+ | ₹5.42 | ₹21,680.00 |
| 8,000+ | ₹5.11 | ₹40,880.00 |
10 × ₹9.96
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MSLM2902DT
₹99.60 for 10 + GST
Specifications
- Quiescent Current
- 1mA
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 20nA
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.464 g
Overview
The MSLM2902DT consists of four independent, high-gain, internally frequency-compensated op-amps. Designed for single-supply operation, they are also compatible with dual-supply configurations, with low supply current consumption independent of supply voltage. Typical applications include sensor amplifiers, DC gain blocks, and most conventional op-amp circuits. The MSLM2902DT is available in a SOP-14 package.
Applications
- Battery chargers
- Cordless telephones
- Switching power supplies
Key features
- Internal frequency compensation for unity-gain stability
- High voltage gain: 100dB typical
- Low input bias current: 20nA typical
- Low input offset voltage: 2mV typical
- Low supply current: 0.5mA typical
- Wide supply voltage range:
- Single supply: 3V ~ 36V
- Dual supply: ±1.5V ~ ±18V
- Input common-mode voltage range includes ground
- Large output voltage swing: 0V ~ VCC - 1.5V
- Low power consumption for battery-powered applications
- Lead-free package: SOP-14
